TL-WA801ND 300Mbps Wireless N Access Point User Guide
4.8.7 Reboot
Selecting System Tools > Reboot allows you to reboot the device on the screen shown in Figure
4-39.

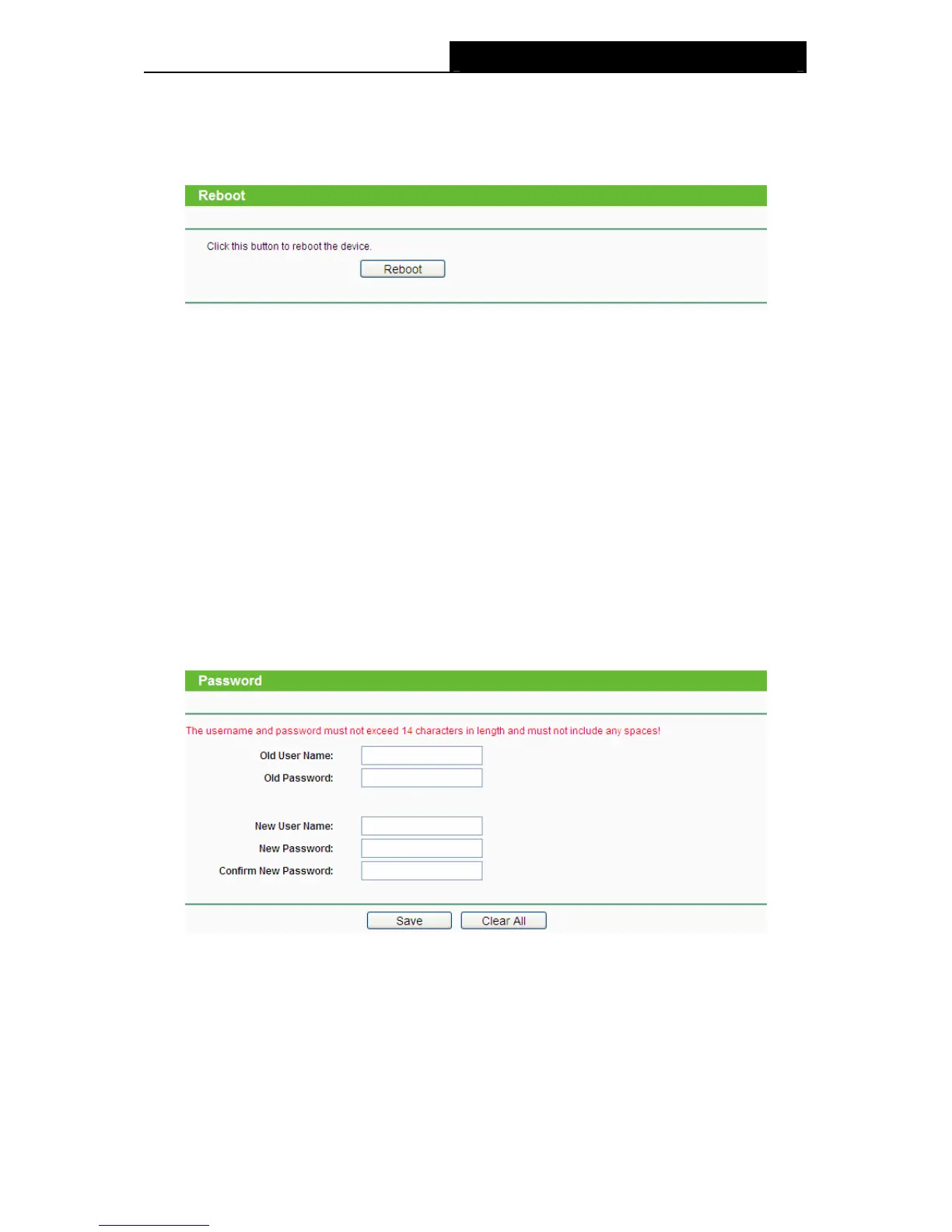

Figure 4-39 Reboot the device
Click the Reboot button to reboot the device.
Some settings of the device will take effect only after rebooting, which include:
• Change LAN IP Address (System will reboot automatically).
• Change the Wireless configurations.
• Change the Web Management Port.
• Upgrade the firmware of the device (system will reboot automatically).
• Restore the device's settings to factory defaults (system will reboot automatically).
• Update the configuration with a file (system will reboot automatically).
4.8.8 Password
Selecting System Tools > Password allows you to change the factory default user name and
password of the device on the screen shown in Figure 4-40.
Figure 4-40 Password
It is strongly recommended that you change the factory default user name and password of the
device. All users who try to access the device's web-based management page or Quick Setup will
be prompted for the device's user name and password.
)
Note:
The new user name and password must not exceed 14 characters in length and must not include
any spaces. Enter the new Password twice to confirm it.
60

TP-Link TL-WA801ND Specifications

General

5 GHz	No
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	270M: -68dBm@10% PER\\r 130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Antenna type	External
Antenna features	Detachable antenna
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Antenna gain level (max)	5 dBi
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Output current	0.6 A
Output voltage	9 V
Output power description	9VDC / 0.85A
Power over Ethernet (PoE) type supported	Passive PoE
Transmit power range	0 - 20 dBmW
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Placement	Table
Certification	CE, FCC, RoHS
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Package depth	223 mm
Package width	310 mm
Package height	70 mm
Package weight	600 g

Weight and Dimensions

Depth	125 mm
Width	181 mm
Height	36 mm
