Note:
If you enable the function and select the “Allow the stations specified by any enabled entries
in the list to access” for Filtering Rules, and there are not any enabled entries in the list, thus,
no wireless stations can access the device.
4.6.4 Wireless Advanced
Selecting Wireless > Wireless Advanced will allow you to do some advanced settings for the
device in the following screen shown in Figure 4-24. As the configuration for each operation mode
is almost the same, we take Access Point mode for example here.

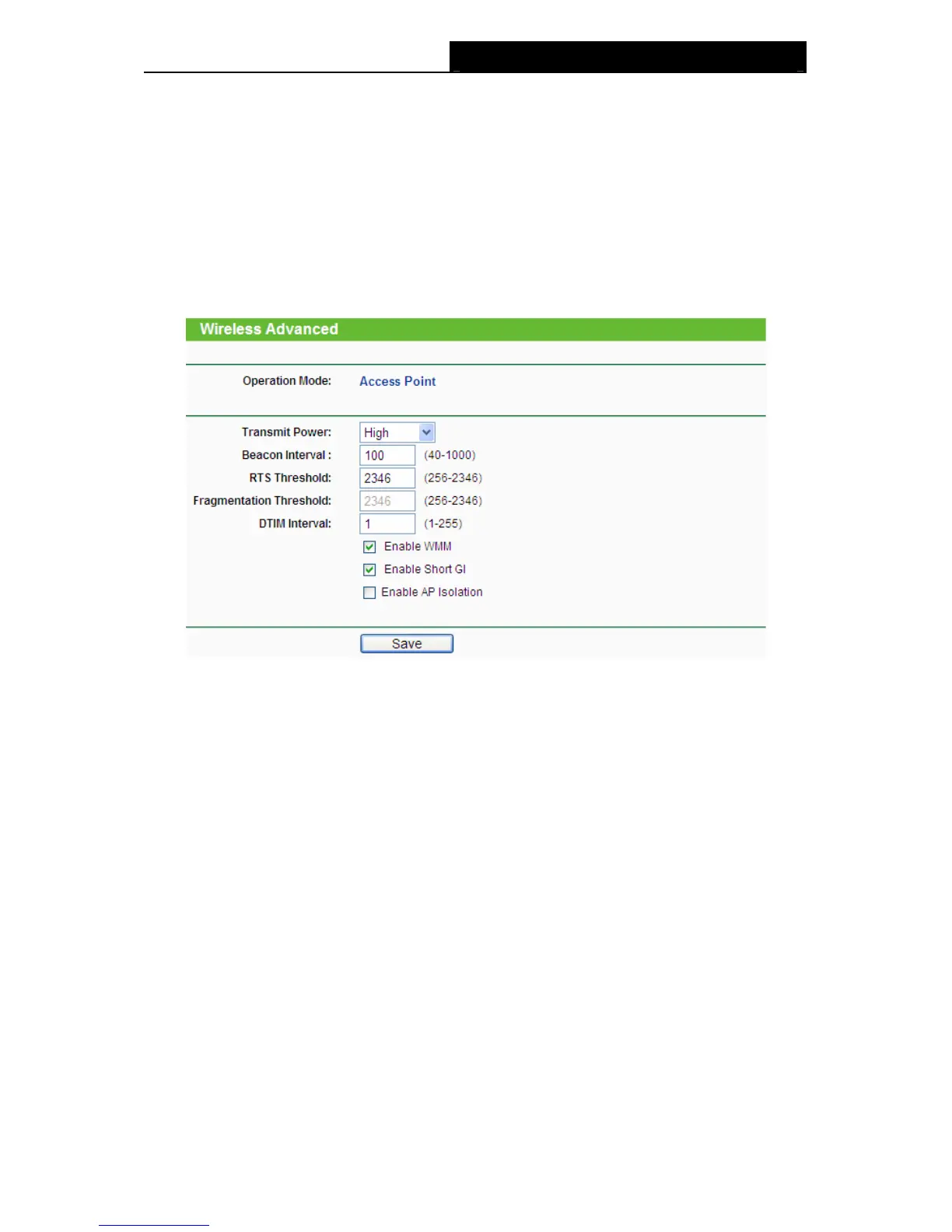

Figure 4-24 Wireless Advanced
¾ Beacon Interval - Specifies a value between 20-1000 milliseconds. The beacons are the
packets sent by the device to synchronize a wireless network. Beacon Interval value
determines the time interval of the beacons. The default value is 100.
¾ RTS Threshold - Specifies the RTS (Request to Send) Threshold. If the packet is larger
than the specified RTS Threshold size, the device will send RTS frames to a particular
receiving station and negotiate the sending of a data frame. The default value is 2346.
¾ Fragmentation Threshold - This value is the maximum size determining whether packets
will be fragmented. Setting the Fragmentation Threshold too low may result in poor network
performance since excessive packets. 2346 is the default setting and is recommended.
¾ DTIM Interval - Determines the interval of the Delivery Traffic Indication Message (DTIM).
You can specify the value between 1-255 Beacon Intervals. The default value is 1, which
indicates the DTIM Interval is the same as Beacon Interval.
¾ Enable WMM - WMM function can guarantee the packets with high- priority messages being
transmitted preferentially. It is strongly recommended enabled.
¾ Enable Short GI - This function is recommended for it will increase the data capacity by
reducing the guard interval time.
48

TP-Link TL-WA801ND Specifications

General

5 GHz	No
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	270M: -68dBm@10% PER\\r 130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Antenna type	External
Antenna features	Detachable antenna
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Antenna gain level (max)	5 dBi
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Output current	0.6 A
Output voltage	9 V
Output power description	9VDC / 0.85A
Power over Ethernet (PoE) type supported	Passive PoE
Transmit power range	0 - 20 dBmW
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Placement	Table
Certification	CE, FCC, RoHS
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Package depth	223 mm
Package width	310 mm
Package height	70 mm
Package weight	600 g

Weight and Dimensions

Depth	125 mm
Width	181 mm
Height	36 mm
