TL-WA801ND 300Mbps Wireless N Access Point User Guide
¾ System Up Time - This filed displays the run time of the AP since it’s powered on or reset.
)
Note:

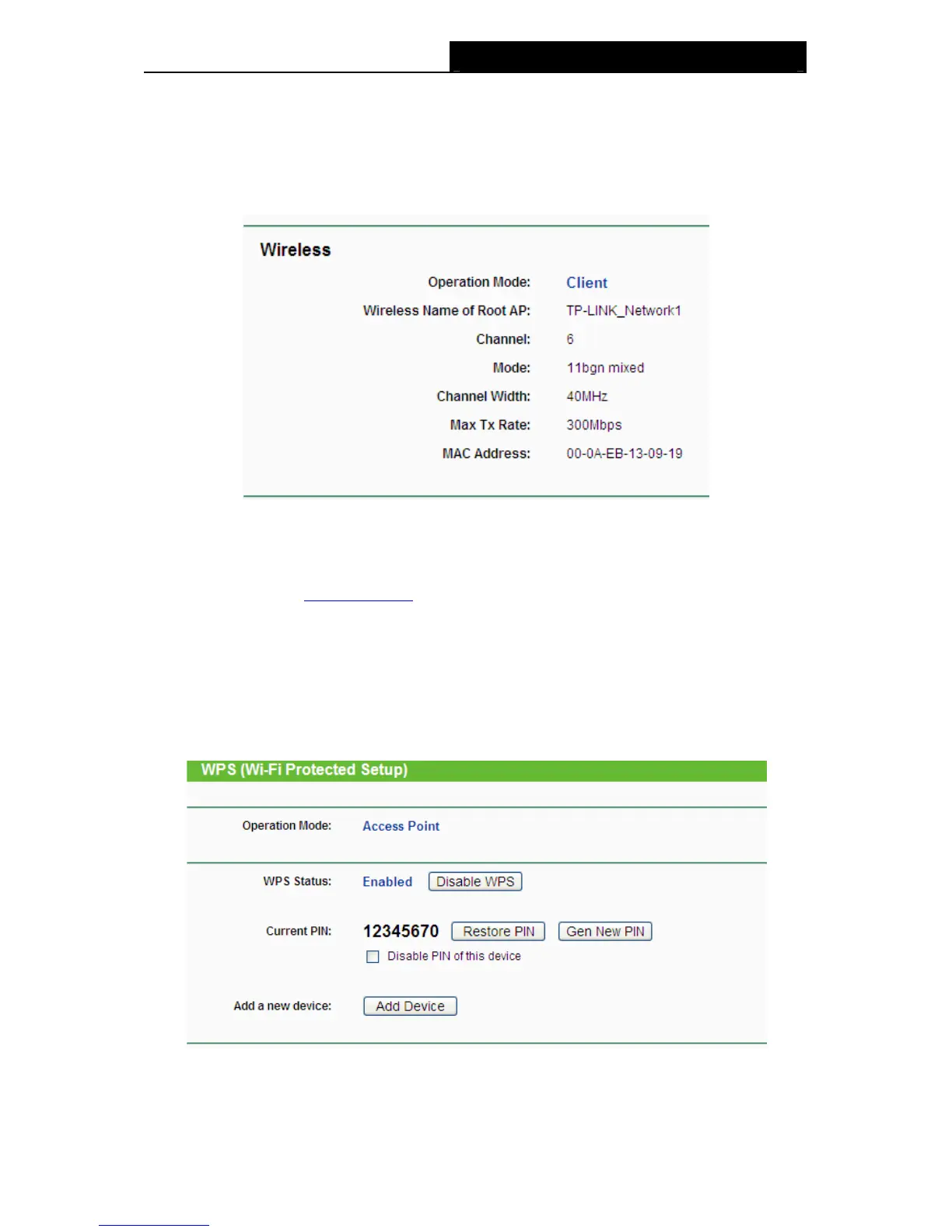

If you select Client mode in Figure 4-12, the wireless status in Figure 4-3 will change, similar to the
figure below:
Figure 4-4 Device Status - Client
4.3 Quick Setup
Please refer to Section 3.1 Quick Setup for more details.
4.4 WPS
WPS (Wi-Fi Protected Setup) can help you to quickly and securely connect to a network. This
section will guide you to add a new wireless device to an existing network quickly by function. The
WPS function is only available when the Operation Mode is set to Access Point and Multi-SSID.
Here we take the Access Point mode for example. Select menu “WPS”, you will see the next
screen shown in Figure 4-5.
Figure 4-5 WPS
¾ WPS Status - To enable or disable the WPS function here.
16

TP-Link TL-WA801ND Specifications

General

5 GHz	No
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	270M: -68dBm@10% PER\\r 130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Antenna type	External
Antenna features	Detachable antenna
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Antenna gain level (max)	5 dBi
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Output current	0.6 A
Output voltage	9 V
Output power description	9VDC / 0.85A
Power over Ethernet (PoE) type supported	Passive PoE
Transmit power range	0 - 20 dBmW
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Placement	Table
Certification	CE, FCC, RoHS
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Package depth	223 mm
Package width	310 mm
Package height	70 mm
Package weight	600 g

Weight and Dimensions

Depth	125 mm
Width	181 mm
Height	36 mm
