¾ Enable - Turn on/off Ping Watch Dog.
¾ IP Address - The IP address of the target host where the Ping Watch Dog Utility is sending
ping packets.
¾ Interval - Time internal between two ping packets which are sent out continuously.
¾ Delay - Time delay before first ping packet is sent out when the device is restarted.
¾ Fail Count - Upper limit of the ping packet the device can drop continuously. If this value is
overrun, the device will restart automatically.
Be sure to click the Submit button to make your settings in operation.
4.8.4 Firmware Upgrade
Selecting System Tools > Firmware Upgrade allows you to upgrade the latest version of
firmware for the device on the screen shown in Figure 4-36.

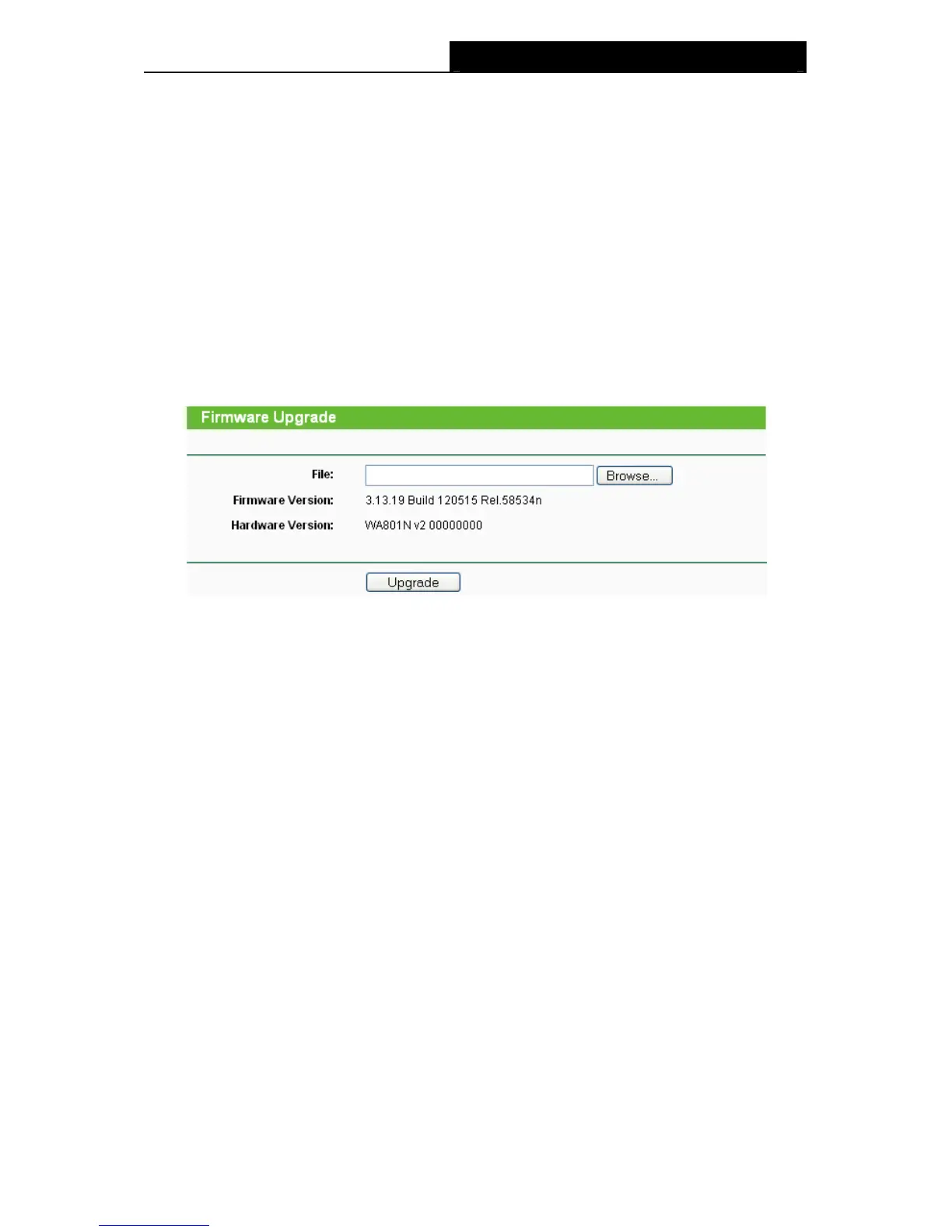

Figure 4-36 Firmware Upgrade
New firmware versions are posted at http://www.tp-link.com and can be downloaded for free.
¾ Firmware Version - Here displays the current firmware version.
¾ Hardware Version - Here displays the current hardware version. The hardware version of the
upgrade file must accord with the current hardware version.
)
Note:
1. There is no need to upgrade the firmware unless the new firmware has a new feature you want
to use. However, when experiencing problems caused by the device itself, you can try to
upgrade the firmware.
2. Before upgrading the device’s firmware, you should write down some of your customized
settings to avoid losing important configuration settings of device.
To upgrade the device's firmware, follow these instructions:
1. Download a more recent firmware upgrade file from the TP-LINK website
(http://www.tp-link.com).
2. Enter the path name or click Browse… to select the downloaded file on the computer into the
File blank.
3. Click Upgrade.
)
Note:
Do not turn off the device or press the Reset button while the firmware is being upgraded. The
device will reboot after the Upgrading has been finished.
58

TP-Link TL-WA801ND Specifications

General

5 GHz	No
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	270M: -68dBm@10% PER\\r 130M: -68dBm@10% PER\\r 108M: -68dBm@10% PER\\r 54M: -68dBm@10% PER\\r 11M: -85dBm@8% PER\\r 6M: -88dBm@10% PER\\r 1M: -90dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Antenna type	External
Antenna features	Detachable antenna
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Antenna gain level (max)	5 dBi
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	-
Ethernet LAN (RJ-45) ports	1
Output current	0.6 A
Output voltage	9 V
Output power description	9VDC / 0.85A
Power over Ethernet (PoE) type supported	Passive PoE
Transmit power range	0 - 20 dBmW
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Placement	Table
Certification	CE, FCC, RoHS
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Package depth	223 mm
Package width	310 mm
Package height	70 mm
Package weight	600 g

Weight and Dimensions

Depth	125 mm
Width	181 mm
Height	36 mm
