TP-Link TL-WA901N User Manual

21
Chapter 4
Congure the Access Point
• MAC Address - The physical address of the LAN ports. The value can not be changed.
• Type - Either select Smart IP(DHCP) to get IP address from DHCP server, or Static IP
to configure IP address manually.
• IP Address - Enter the IP address in dotted-decimal notation if your select Static IP
(factory default - 192.168.0.254).
• Subnet Mask - An address code that determines the size of the network. Normally
255.255.255.0 is used as the subnet mask.
• Gateway - The gateway should be in the same subnet as your IP address.
Note:
• If you have changed the IP address, you must use the new IP address to login.
• If you select Smart IP(DHCP), settings of the DHCP server is unchangable.
• If the new IP address you set is not in the same subnet as the old one, the IP Address pool in the DHCP
Server will be configured automatically.

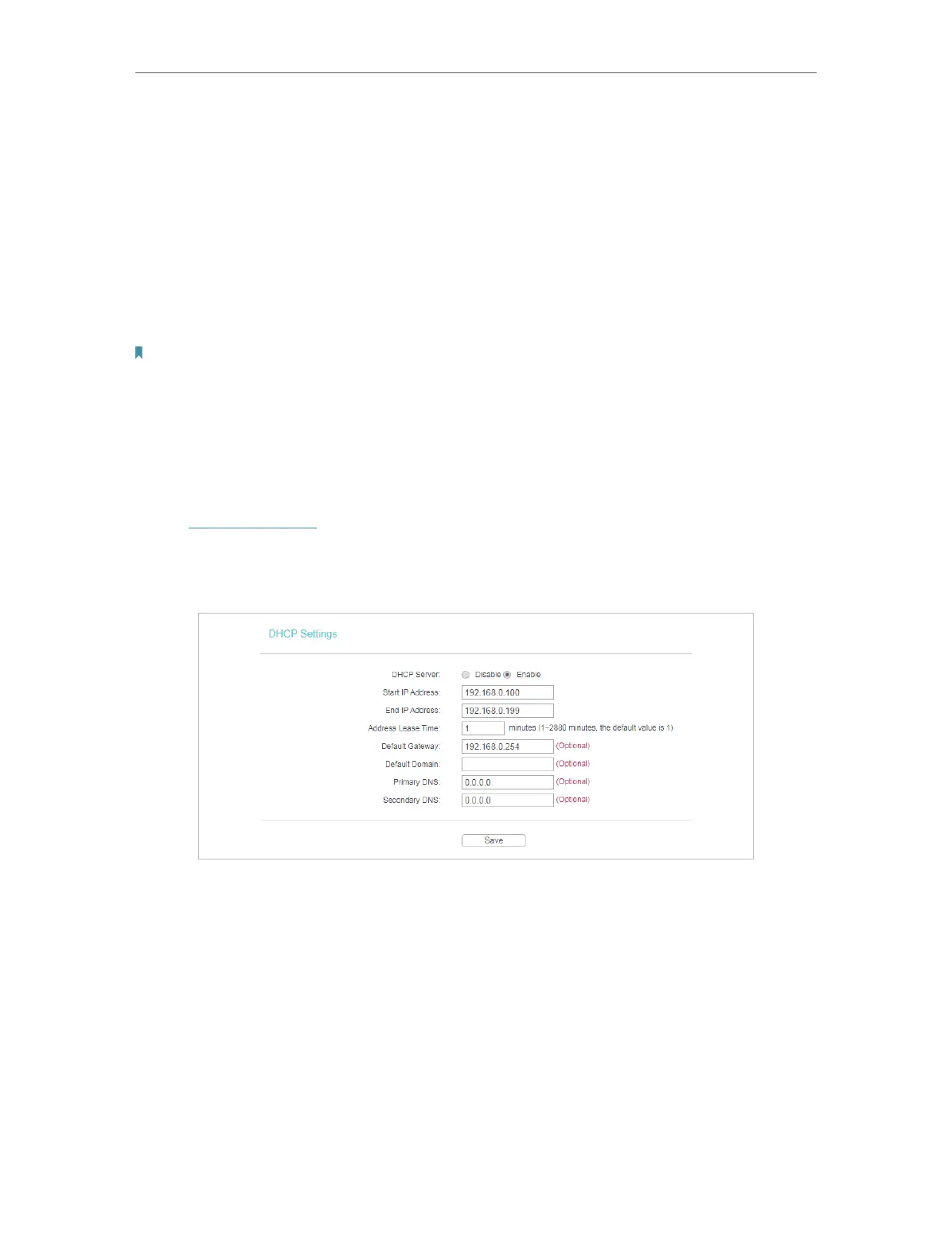

4. 3. 2. DHCP Settings
1. Visit http://tplinkap.net, and log in using the password you created.
2. Go to Network > DHCP Settings.
3. Specify DHCP server settings and click Save.
• DHCP Server - Enable or disable the DHCP server. If disabled, you must have another
DHCP server within your network or else you must configure the computer manually.
• Start IP Address - Specify an IP address for the DHCP Server to start with when
assigning IP addresses. 192.168.0.100 is the default start address.
• End IP Address - Specify an IP address for the DHCP Server to end with when assigning
IP addresses. 192.168.0.199 is the default end address.
• Address Lease Time - The Address Lease Time is the amount of time a network user
will be allowed to connect to the access point with the current dynamic IP Address.
When time is up, the user will be automatically assigned a new dynamic IP address.
The range of the time is 1 ~ 2880 minutes. The default value is 1.

TP-Link TL-WA901N Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2400-2483.5 GHz
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	450 Mbit/s
Security algorithms	64-bit AES, 128-bit AES, WPA, WPA-PSK, WPA2, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Output current	0.85 A
Output voltage	9 V
Power over Ethernet (PoE) type supported	Passive PoE
Placement	Table
Product color	White
Antenna type	External
Antennas quantity	3
Antenna direction type	Omni-directional
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Number of products included	1 pc(s)
Minimum system requirements	Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, , NetWare, UNIX or Linux , Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other , Java-enabled browser , Cable or DSL Modem , Subscription with an Internet Service Provider (for Internet access)
Package depth	223 mm
Package width	370 mm
Package height	70 mm
Package weight	660 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	133.8 mm
Width	194.8 mm
Height	36.2 mm
