TP-Link TL-WA901N User Manual

36
Chapter 4
Congure the Access Point
4. Select Allow the stations specified by any enabled entries in the list to access as the filtering
rule.
5. Delete all or disable all entries if there are any entries already.

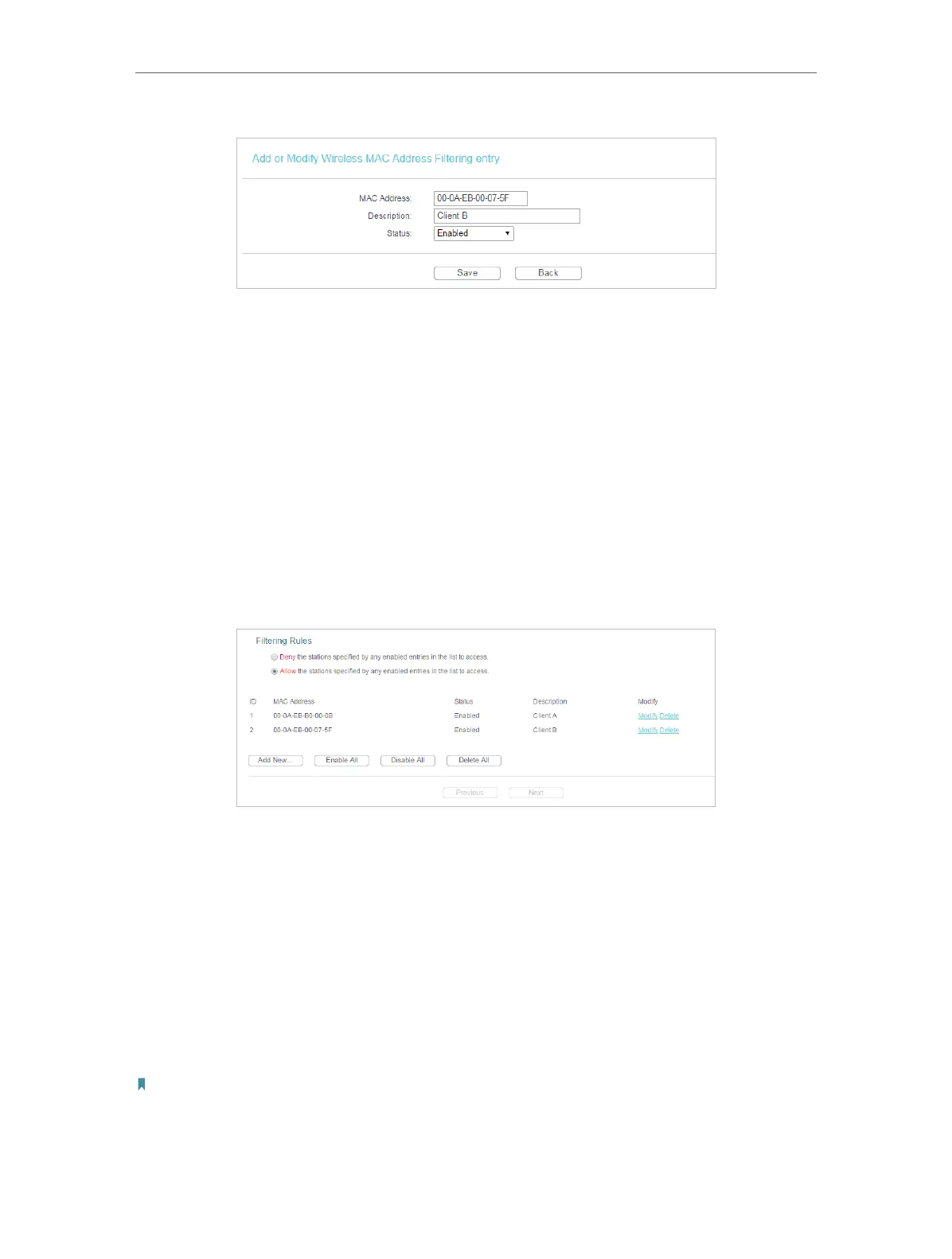

6. Click Add New and fill in the blank.
1 ) Enter the MAC address 00-0A-EB-B0-00-0B/00-0A-EB-00-07-5F in the MAC
Address field.
2 ) Enter wireless client A/B in the Description field.
3 ) Select Enabled in the Status drop-down list.
4 ) Click Save and click Back.
7. The configured filtering rules should be listed as the picture shows below.
Now only client A and client B can access your network.
4. 4. 5. Wireless Advanced
The configuration for each operation mode is almost the same, we take Access Point
mode for example here.
1. Visit http://tplinkap.net, and log in using the password you created.
2. Go to Wireless > Wireless Advanced.
3. Configure the advanced settings of your wireless network and click Save.
Note:
If you are not familiar with the setting items on this page, it’s strongly recommended to keep the provided default values;
otherwise it may result in lower wireless network performance.
Done!

TP-Link TL-WA901N Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2400-2483.5 GHz
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	450 Mbit/s
Security algorithms	64-bit AES, 128-bit AES, WPA, WPA-PSK, WPA2, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Output current	0.85 A
Output voltage	9 V
Power over Ethernet (PoE) type supported	Passive PoE
Placement	Table
Product color	White
Antenna type	External
Antennas quantity	3
Antenna direction type	Omni-directional
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Number of products included	1 pc(s)
Minimum system requirements	Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, , NetWare, UNIX or Linux , Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other , Java-enabled browser , Cable or DSL Modem , Subscription with an Internet Service Provider (for Internet access)
Package depth	223 mm
Package width	370 mm
Package height	70 mm
Package weight	660 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	133.8 mm
Width	194.8 mm
Height	36.2 mm
