TL-WDR4300 N750 Wireless Dual Band Gigabit Router
- 101 -
2. Enter the MAC Address or IP Address.
3. Click the Find button in the page as shown in Figure 4-102.

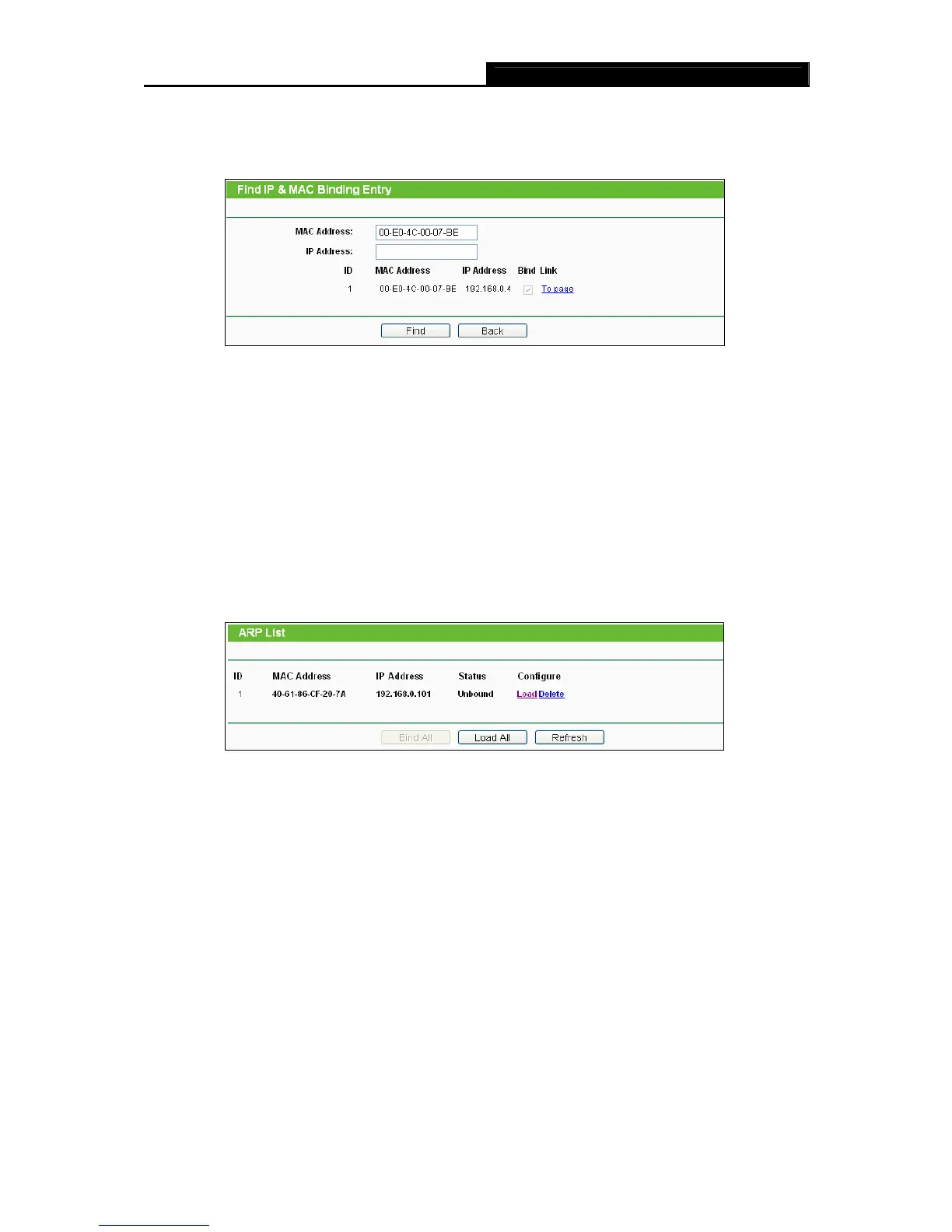

Figure 4-102 Find IP & MAC Binding Entry
Click the Enable All button to make all entries enabled.
Click the Delete All button to delete all entries.
4.17.2 ARP List
To manage the computer, you could observe the computers in the LAN by checking the
relationship of MAC address and IP address on the ARP list, and you could also configure the
items on the ARP list. This page displays the ARP List; it shows all the existing IP & MAC Binding
entries (shown in Figure 4-103).
Figure 4-103 ARP List
1. MAC Address - The MAC address of the controlled computer in the LAN.
2. IP Address - The assigned IP address of the controlled computer in the LAN.
3. Status - Indicates whether or not the MAC and IP addresses are bound.
4. Configure - Load or delete an item.
Ü Load - Load the item to the IP & MAC Binding list.
Ü Delete - Delete the item.
Click the Bind All button to bind all the current items, available after enable.
Click the Load All button to load all items to the IP & MAC Binding list.
Click the Refresh button to refresh all items.
