TP-Link TL-WDR4300 User Manual

TL-WDR4300 N750 Wireless Dual Band Gigabit Router
- 67 -

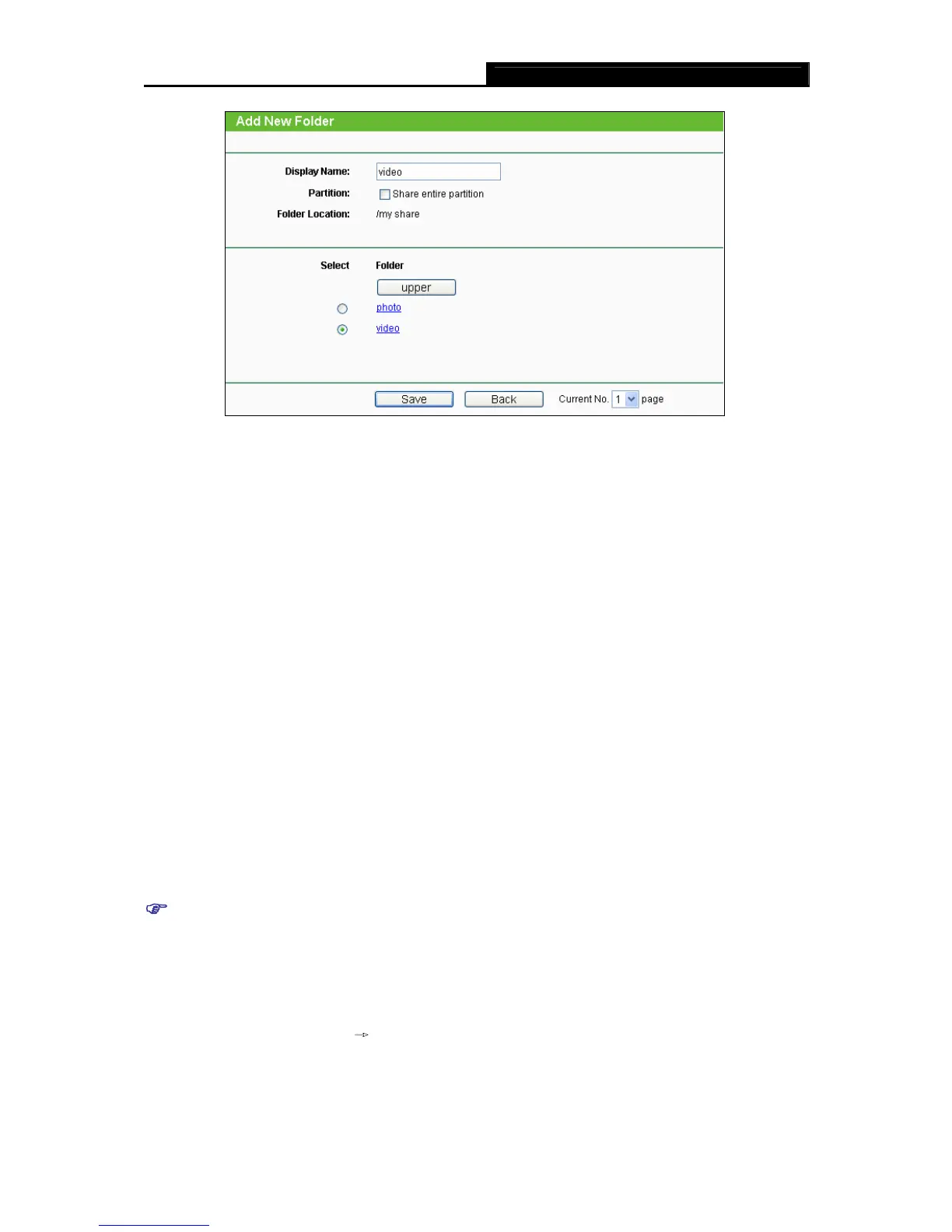

Figure 4-56 Add New Folder
Ü Display Name - You can enter a display name for the share folder.
Ü Share entire partition - Choose this option and then the folders contained in this partition
will all be shared.
Ü Folder Location- Displays the location of this folder.
Ü Select - Check the radio button to select the folder to share.
Ü Folder - Displays folders that are in current path.
Ü Upper - Click this button to get into the upper folder.
Ü Save - Click this button to save your settings and the page will be redirected to the media
server configuration page.
Ü Back - Click this button to discard the settings and just go to the media server configuration
page.
4. Click the Scan All button to scan all the share folders immediately. You can also select the
Auto-scan, at same time, select an auto scan interval time by drop-down list. In this case, the
media server will auto scan the share folders.
H
Note:
The max share folders number is 6. If you want share a new folder when the number has been
reached to be 6, you can delete a share folder and then add a new one.
4.9.4 Print Server
Choose menu “USB Settings
Print Server”, you can configure print server on this page as
shown below.

TP-Link TL-WDR4300 Specifications

General

Color	black
Frequency Band	other
QoS Traffic Prioritization	yes
Ethernet Standard	10/100/1000
Wireless Standard	n
Gigabit Ethernet Speed	yes
Antennas	3
Parental Control	yes
Firewall	spi
Data Encryption	yes
Encryption Type	wpa2-psk, wep, wpa, wpa2, wpa-psk
Security Features	wps (wi-fi protected setup)
Ports	usb
WAN Ports	1
System Requirements	pc: windows 98 se, nt, 2000, xp, vista or 7; mac os; netware; unix; linux

Weight and Dimensions

Height	9.6 inches
Width	6.4 inches
