TP-Link TL-WDR4300 User Manual

TL-WDR4300 N750 Wireless Dual Band Gigabit Router
- 121 -
Appendix B: Configuring the PCs
In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP.
First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed.
1. Install TCP/IP component
1) On the Windows taskbar, click the Start button, point to Settings, and then click Control
Panel.
2) Click the Network and Internet Connections icon, and then click on the Network
Connections tab in the appearing window.

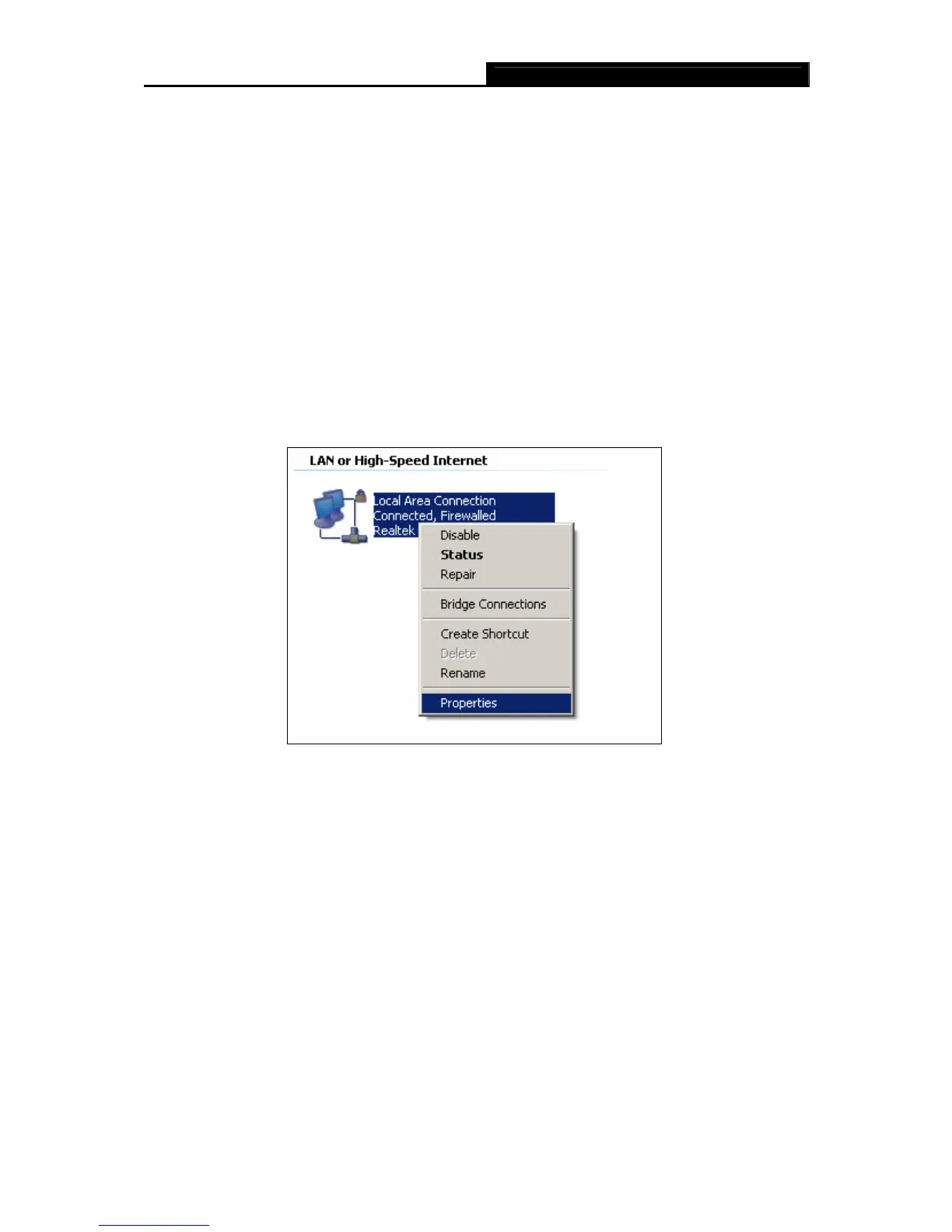

3) Right click the icon that showed below, select Properties on the prompt page.
Figure B-1

TP-Link TL-WDR4300 Specifications

General

Color	black
Frequency Band	other
QoS Traffic Prioritization	yes
Ethernet Standard	10/100/1000
Wireless Standard	n
Gigabit Ethernet Speed	yes
Antennas	3
Parental Control	yes
Firewall	spi
Data Encryption	yes
Encryption Type	wpa2-psk, wep, wpa, wpa2, wpa-psk
Security Features	wps (wi-fi protected setup)
Ports	usb
WAN Ports	1
System Requirements	pc: windows 98 se, nt, 2000, xp, vista or 7; mac os; netware; unix; linux

Weight and Dimensions

Height	9.6 inches
Width	6.4 inches
