TP-Link TL-WDR4300 User Manual

TL-WDR4300 N750 Wireless Dual Band Gigabit Router
- 4 -

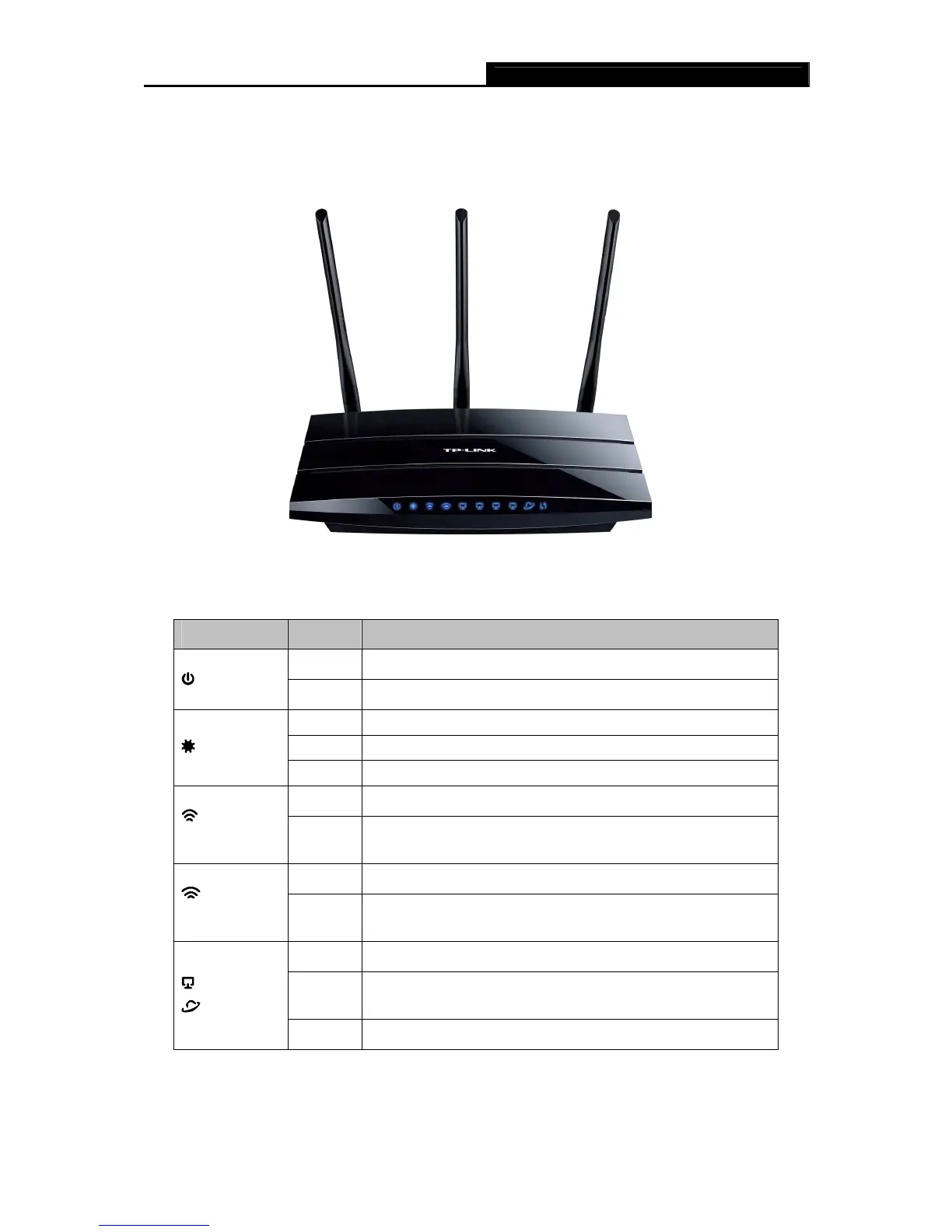

1.4 Panel Layout
1.4.1 The Front Panel
Figure 1-1 LEDs on the front panel
The Router’s LEDs are located on the front panel (View from left to right).
Name Status Indication
Off Power is off.
(Power)
On Power is on.
On The Router is initializing or maybe has a system error.
Flashing The Router is working properly.
(System)
Off The Router has a system error.
Off The wireless function is disabled.
(Wireless
2.4GHz)
Flashing
The wireless function is enabled. The Router is working on
2.4GHz radio band.
Off The wireless function is disabled.
(Wireless
5GHz)
Flashing
The wireless function is enabled. The Router is working on
5GHz radio band.
Off There is no device linked to the corresponding port.
On
There is a device linked to the corresponding port but there
is no activity.
(Ethernet)
(Internet)
Flashing There is an active device linked to the corresponding port.

TP-Link TL-WDR4300 Specifications

General

Color	black
Frequency Band	other
QoS Traffic Prioritization	yes
Ethernet Standard	10/100/1000
Wireless Standard	n
Gigabit Ethernet Speed	yes
Antennas	3
Parental Control	yes
Firewall	spi
Data Encryption	yes
Encryption Type	wpa2-psk, wep, wpa, wpa2, wpa-psk
Security Features	wps (wi-fi protected setup)
Ports	usb
WAN Ports	1
System Requirements	pc: windows 98 se, nt, 2000, xp, vista or 7; mac os; netware; unix; linux

Weight and Dimensions

Height	9.6 inches
Width	6.4 inches

Summary

Package Contents

Chapter 1: Introduction

1.1 Overview of the Router

Describes the integrated features and capabilities of the router.

1.3 Main Features

Lists the key features and specifications of the router.

1.4 Panel Layout

Details the physical layout of the router's front and rear panels.

Chapter 2: Connecting the Router

2.1 System Requirements

Lists the necessary hardware and software for router setup.

2.3 Connecting the Router

Provides step-by-step instructions for physically connecting the router.

Chapter 3: Quick Installation Guide

3.1 TCP/IP Configuration

Explains how to configure TCP/IP settings for PC connection to the router.

3.2 Quick Installation Guide

Walks through the basic configuration steps using the router's web interface.

Chapter 4: Configuring the Router

4.1 Login and 4.2 Status

Covers logging into the router and monitoring its current status.

4.4 Network Settings (WAN, LAN)

Manages WAN and LAN parameters for network connectivity.

4.6 Wireless 2.4GHz and 4.7 Wireless 5GHz

Configures wireless settings for both 2.4GHz and 5GHz bands.

4.8 DHCP and 4.9 USB Settings

Manages DHCP services and USB device configurations.

4.11 Forwarding and 4.12 Security

Covers port forwarding, DMZ, UPnP, and essential security features.

4.19 System Tools

Provides system utilities for time, diagnostics, firmware, and password management.

Appendix A: FAQ

Internet Access and Application Setup

Guides on setting up internet access and configuring for applications like Netmeeting.

Appendix B: Configuring PCs

Appendix C: Specifications

Appendix D: Glossary
