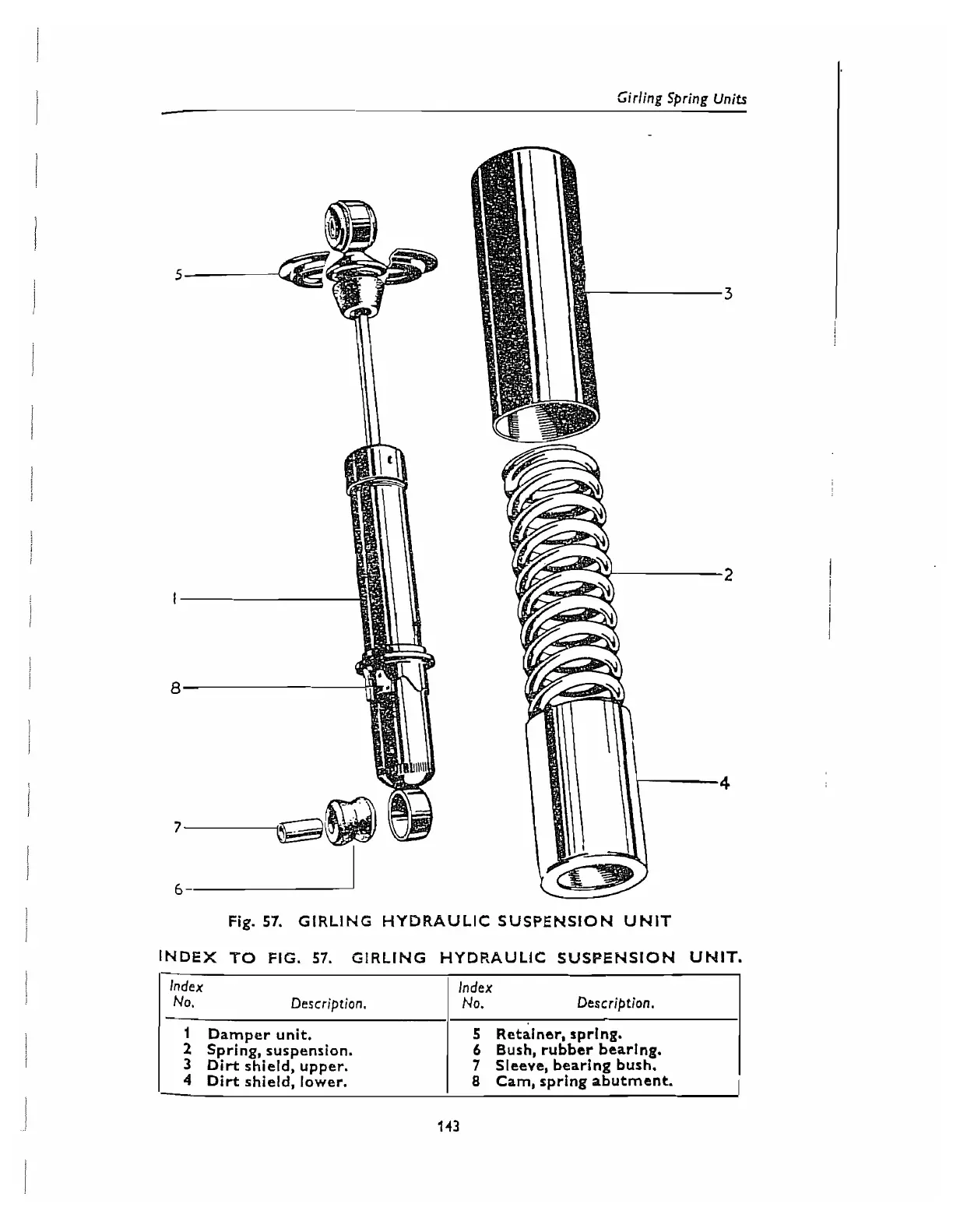

Fig.
57.
GlRLlNG HYDRAULIC SUSPENSION
UNIT
INDEX
TO
FIG.
57.
GiRLlNG HYDP,AULIC SUSPENSION
UNIT.
Index
No.
Description.
1
Damper unit.
2
Spring, suspension.
3
Dirt shield, upper.
4
Dirt shield, lower.
Index
No.
Description.
5
~etainer,
spring.
6
Bush, rubber bearlng.
7
Sleeve, bearing bush.
8
Cam, spring abutment.
