Dismontlinp Clutch
Clutch Slotted Nuts (See Fig.
28).
Unscrew these by using the special
kcy
"B"
provided in the toolkit. On the underside of the nut head is
a
small "pip" which
contacts the ends of the spring coil, thus making an effective locking device which
prevencs the nut unscrewirg when in service. To facilitate removal, insert a knife
blade
"A",
under the head of the nut in order to hold the spring away from the "pip"
while the nut
is
being unscrewed.
Pressure Springs. Withdraw from the cups.
Pressure Plate. Remove complete with cups.

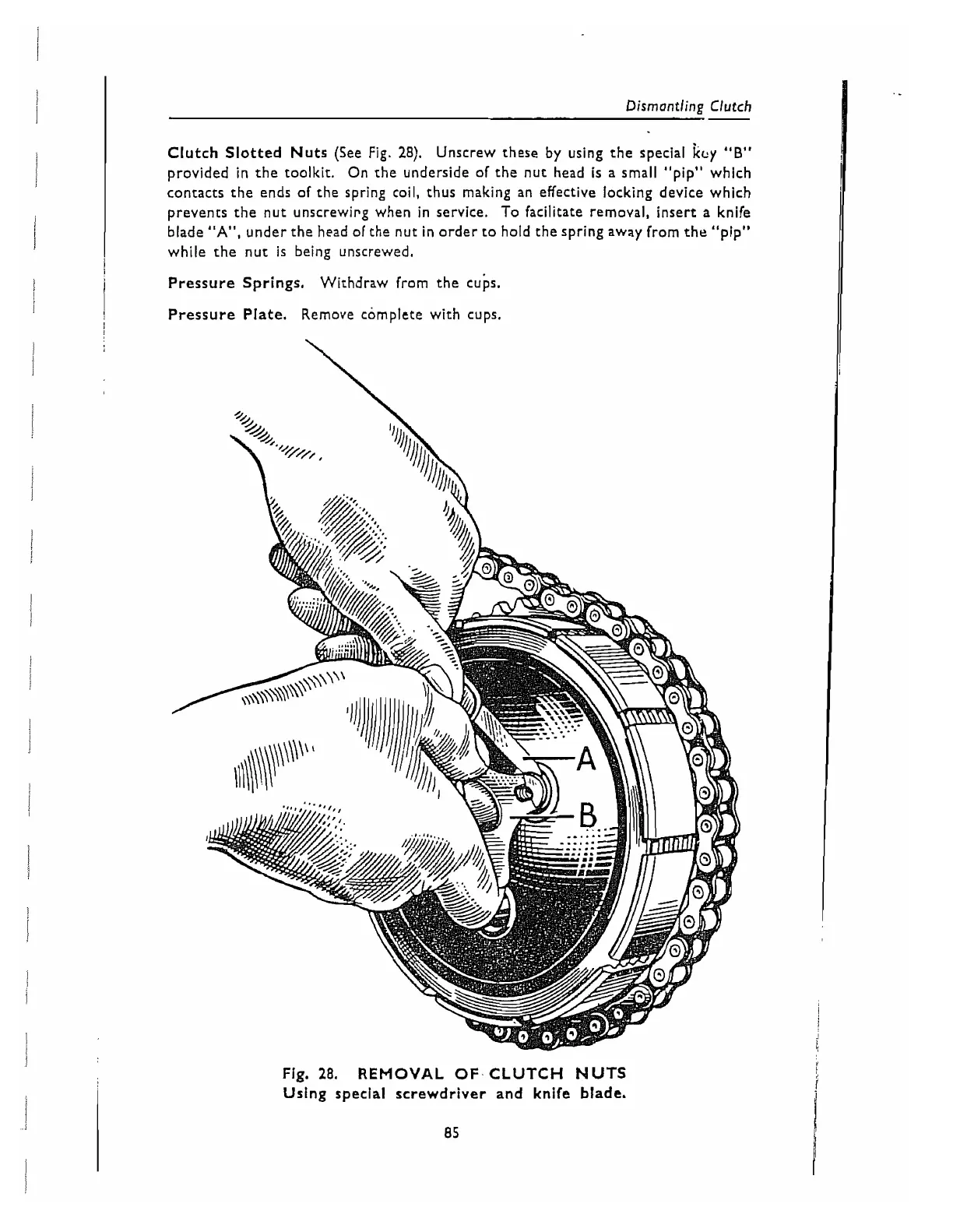

Fig.
28.
REMOVAL
OF
CLUTCH NUTS
Using special screwdriver and knife blade.
