Decorbonising !
. .
3T ENGINE

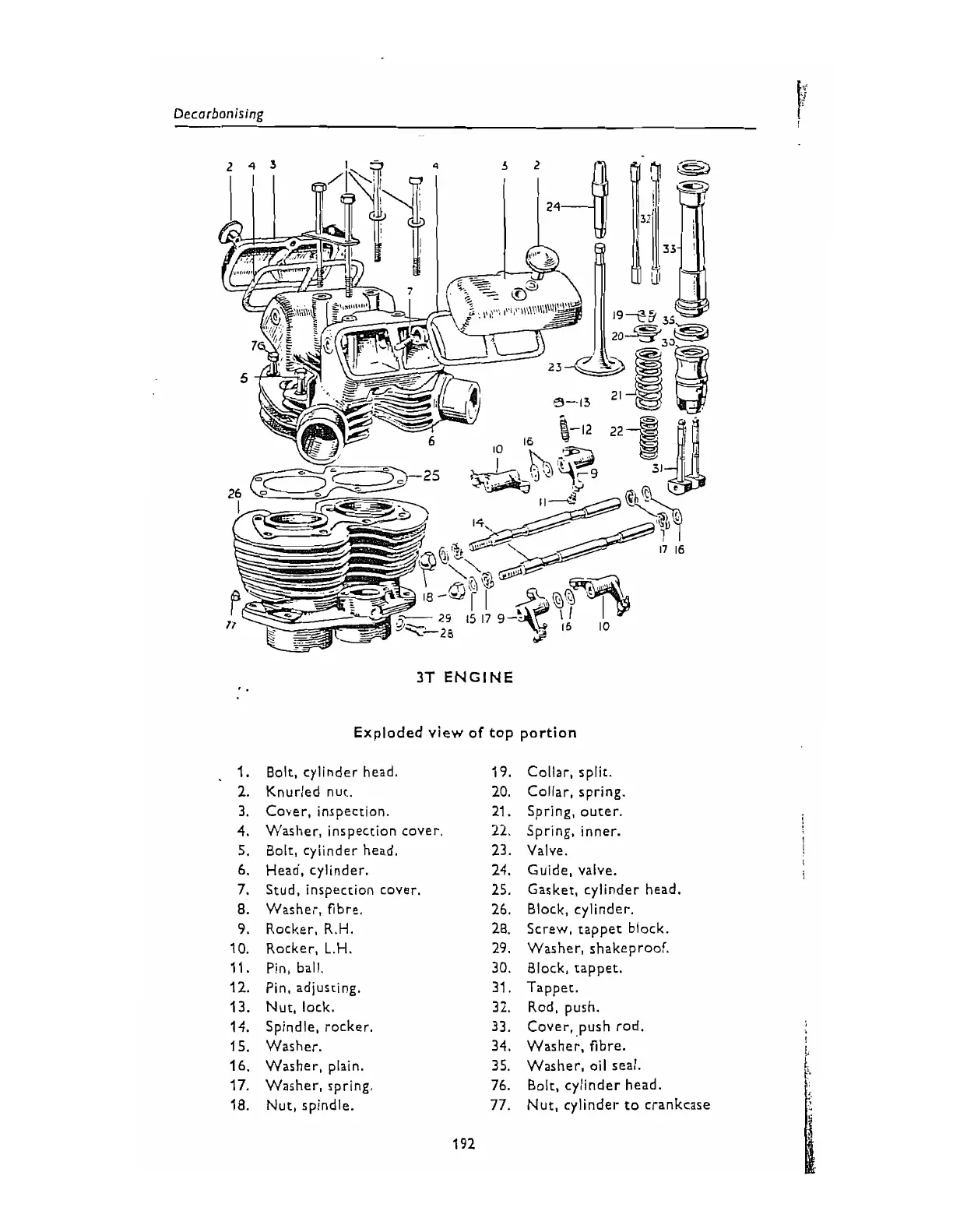

Exploded view of top portion
1. Bolt, cylinder head.
2. Knurled nut.
3. Cover. inspection.
4. Washer, inspection cover.
5. Bolt, cyiinder head.
6. Head, cylinder.
7. Stud. inspection cover.
8. Washer. fibre.
9. Rocker, R.H.
10. Rocker, L.H.
11. Pin, ball.
12. Pin. adjusting.
13. Nut, lock.
14. Spindle, rocker.
15. Washer.
16. Washer, plain.
17. Washer, spring.
18. Nut, spindle.
Collar, split.
Collar, spring.
Spring, outer.
Spring, inner.
Valve.
Guide, valve.
Gasket, cylinder head.
Block, cylinder.
Screw, tappet block.
Washer, shakeproof.
Block, tappet.
Tappet.
Rod, push.
Cover, push rod.
Washer, fibre.
Washer, oil seal.
Bolt, cylinder head.
Nut, cylinder to crankcase
