Clutch
Hub.
If the sprocket play on the hub
is
excessive, split the assembly by
simply pressing out the hub from the clutch centre when the sprocket, hub and
rollers can be examined (see page
90).
I
I

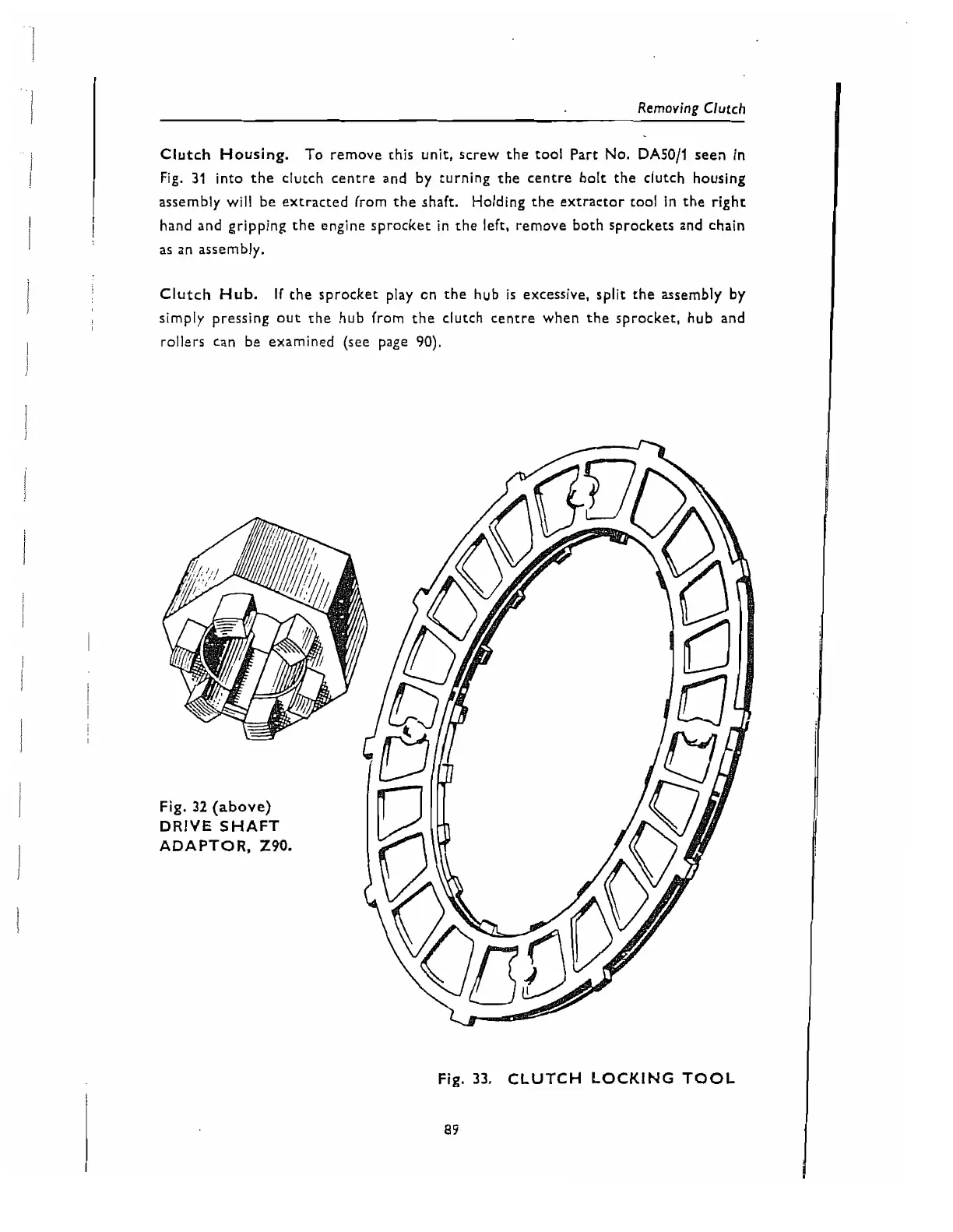

Fig.
33.
CLUTCH LOCKING
TOOL
89
I
1
I
Removing Clutch
Clutch Housing.
To remove this unit, screw the tool Part No.
DA50/1
seen in
Fig.
31
into the clutch centre and by turning the centre bolt the clutch housing
assembly will be extracted from the shaft. Holding the extractor tool in the right
1
:
hand and gripping the engine sprocket
in
the left, remove both sprockets and chain
I
as an assembly.
