SARA-R5 series - System integration manual
UBX-19041356 - R04 Design-in Page 55 of 118
C1-Public
2.4 Antenna interfaces
SARA-R5 series modules provide a cellular RF interface for connecting the external cellular antenna:
the ANT pin represents the cellular RF input/output for cellular signals transmission and reception.
SARA-R510M8S modules provide also a GNSS RF interface for connecting the external GNSS
antenna: the ANT_GNSS pin represents the GNSS RF input for GNSS signals reception.
The ANT and ANT_GNSS pins have a nominal characteristic impedance of 50 and must be
connected to the related physical antenna through a 50 transmission line to allow clean
transmission / reception of RF signals.
2.4.1 General guidelines for antenna interfaces
2.4.1.1 Guidelines for ANT and ANT_GNSS pins RF connection design
The GNSS antenna RF interface is not supported by SARA-R500S and SARA-R510S modules.
A clean transition between the ANT and ANT_GNSS pads and the application board PCB must be
provided, implementing the following design-in guidelines for the layout of the application PCB close
to the ANT and ANT_GNSS pads:
On a multilayer board, the whole layer stack below the RF connections should be free of digital lines
Increase GND keep-out (i.e. clearance, a void area) around the ANT and ANT_GNSS pads, on the
top layer of the application PCB, to at least 250 m up to adjacent pads metal definition and up to
400 m on the area below the module, to reduce parasitic capacitance to ground, as described in
the left picture in Figure 32
Add GND keep-out (i.e. clearance, a void area) on the buried metal layer below the ANT and
ANT_GNSS pads if the top-layer to buried layer dielectric thickness is below 200 m, to reduce
parasitic capacitance to ground, as described in the right picture in Figure 32
Min.
250 µm
Min. 400 µm
GND
RF pad
GND clearance
on buried layer very close to top layer
below RF pad
GND clearance
on top layer
around RF pad

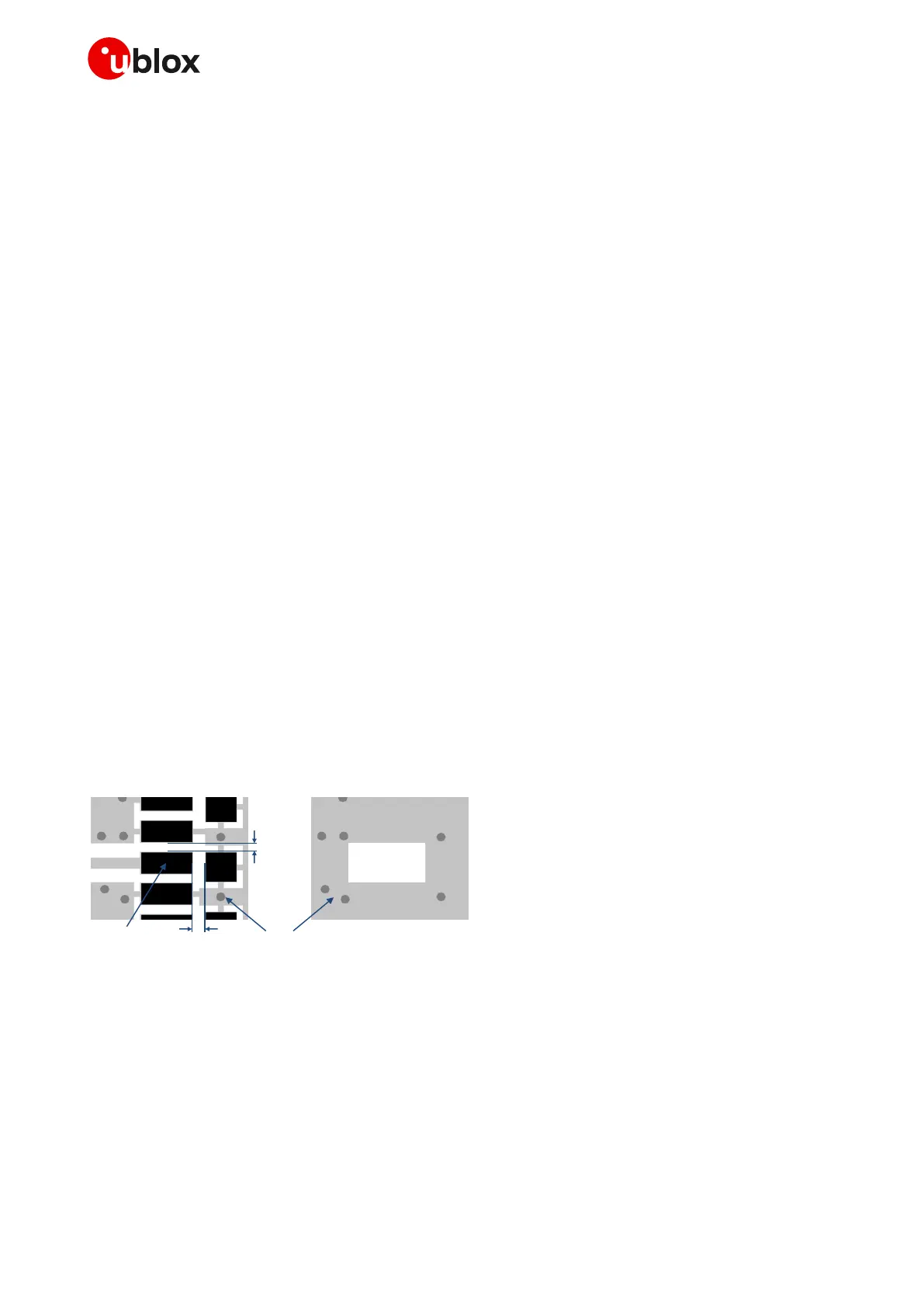

Figure 32: GND keep-out area on top layer around RF pad and on very close buried layer below RF pad (ANT / ANT_GNSS)
See section 2.4.2.3 for the description of the antenna trace design implemented on the u-blox host
printed circuit board used for conformity assessment of SARA-R5 series surface-mounted
modules for regulatory type approvals such as FCC United States, ISED Canada, RED Europe, etc.
