Ublox SARA-R5 Series System Integration Manual

SARA-R5 series - System integration manual
UBX-19041356 - R04 Design-in Page 94 of 118
C1-Public
2.11 Module footprint and paste mask
Figure 70 and Table 45 describe the suggested footprint (i.e. copper mask) and paste mask layout for
SARA modules: the proposed land pattern layout reflects the modules’ pins layout, while the proposed
stencil apertures layout is slightly different (see the F’’, H’’, I’’, J’’, O’’ parameters compared to the F’,
H’, I’, J’, O’ ones).
The Non Solder-resist Mask Defined (NSMD) pad type is recommended over the Solder-resist Mask
Defined (SMD) pad type, as it implements the solder resist mask opening 50 m larger per side than
the corresponding copper pad.
The recommended thickness of the stencil for the soldering paste is 150 m, according to application
production process requirements.
K
M1
M1
M2
E G H’ J’ E
ANT pin
B
Pin 1
K
G
H’
J’
A
D
D
O’
O’
L N L
I’
F’
F’
K
M1
M1
M2
E G H’’ J’’ E
ANT pin
B
Pin 1
K
G
H’’
J’’
A
D
D
O’’
O’’
L N L
I’’
F’’
F’’
Stencil: 150
µm

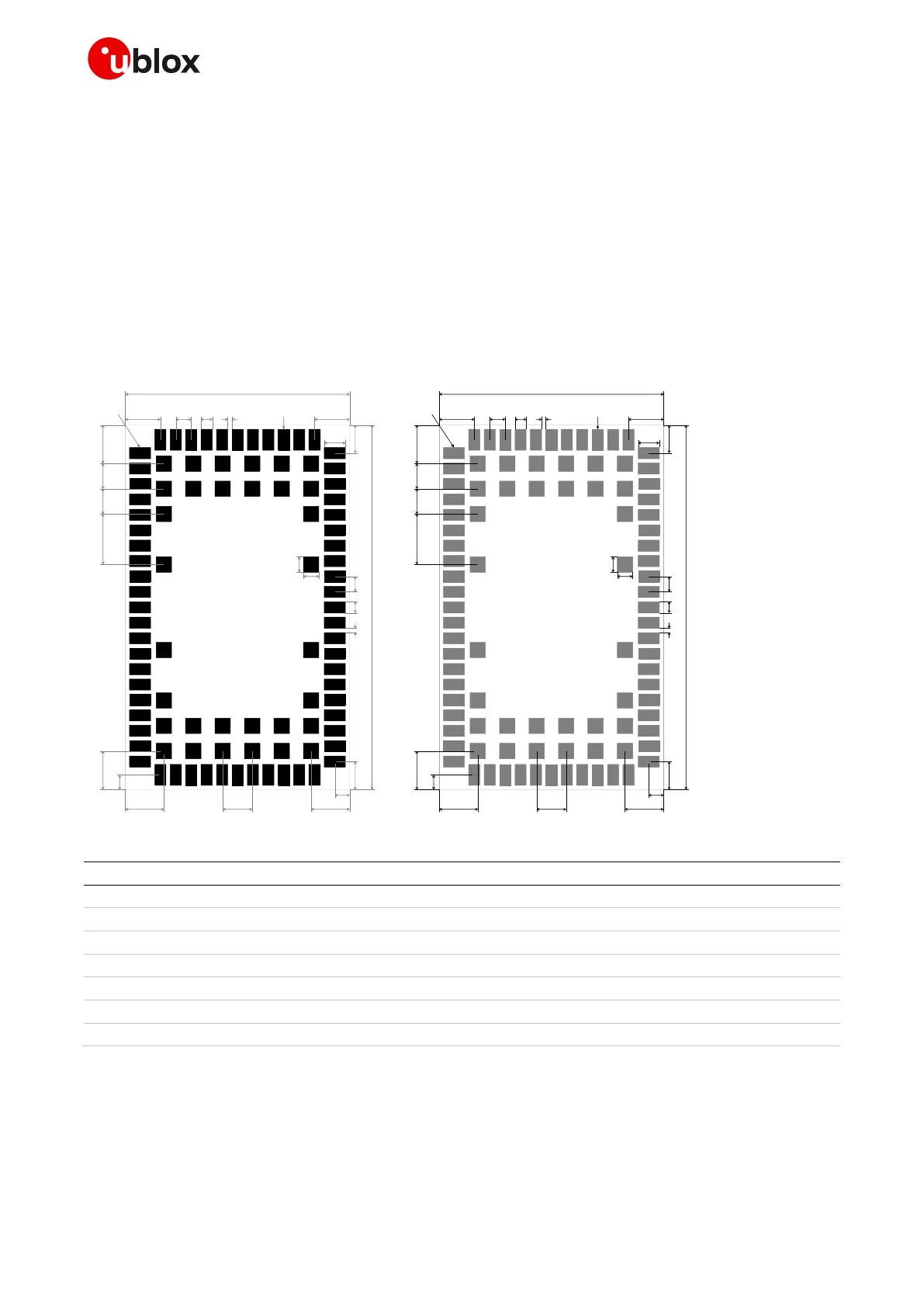

Figure 70: SARA-R5 series modules suggested footprint and paste mask (application board top view)
Parameter
Value
Parameter
Value
Parameter
Value
A
26.0 mm
G
1.10 mm
K
2.75 mm
B
16.0 mm
H’
0.80 mm
L
2.75 mm
C
3.00 mm
H’’
0.75 mm
M1
1.80 mm
D
2.00 mm
I’
1.50 mm
M2
3.60 mm
E
2.50 mm
I’’
1.55 mm
N
2.10 mm
F’
1.05 mm
J’
0.30 mm
O’
1.10 mm
F’’
1.00 mm
J’’
0.35 mm
O’’
1.05 mm
Table 45: SARA-R5 series modules suggested footprint and paste mask dimensions
☞ These are recommendations only and not specifications. The exact copper, solder and paste mask
geometries, distances, stencil thicknesses and solder paste volumes must be adapted to the
specific production processes (e.g. soldering etc.) implemented.
