Oil to lter
By-pass
To bottom of cylinder
Oil input to lter
To bottom of cylinder
Oil input
Rises for
camshafts
Oil to supports
Rises for
camshafts
Oil to supports
Rises for
camshafts
Oil input
22
LUBRICATION CIRCUIT
WORKSHOP MANUAL
bis 22

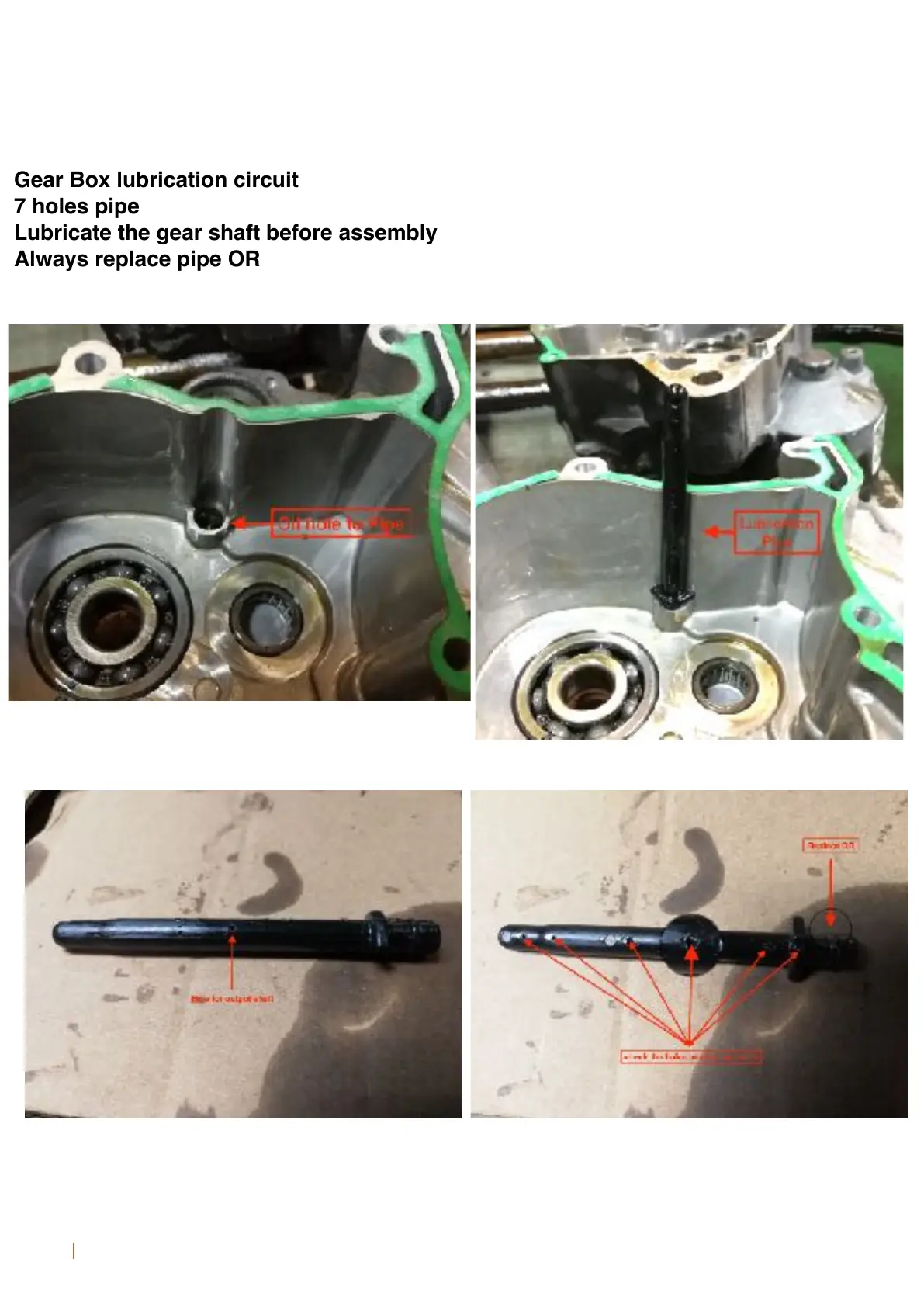

Gear Box lubrication circuit
7 holes pipe
Lubricate the gear shaft before assembly
Always replace pipe OR
OIL TO PIPE
LUBRICATION
PIPE
OUTPUT SHAFT LUBRICATION HOLE
CHECK THE SIX HOLE ARE FREE
REPLACE OR
CHECK THE PIPE CONDITION
GEAR BOX CIRCUIT LUBRICATION
THIS PIPE HAVE SEVEN HOLE
ALWAYS REPLACE PIPE OR
CHECK IF THE CONDITION OF PIPE IS GOOD
BEFORE ASSEMBLY THE ENGINE LUBRICATE SHAFT AND GEAR VERY WELL
