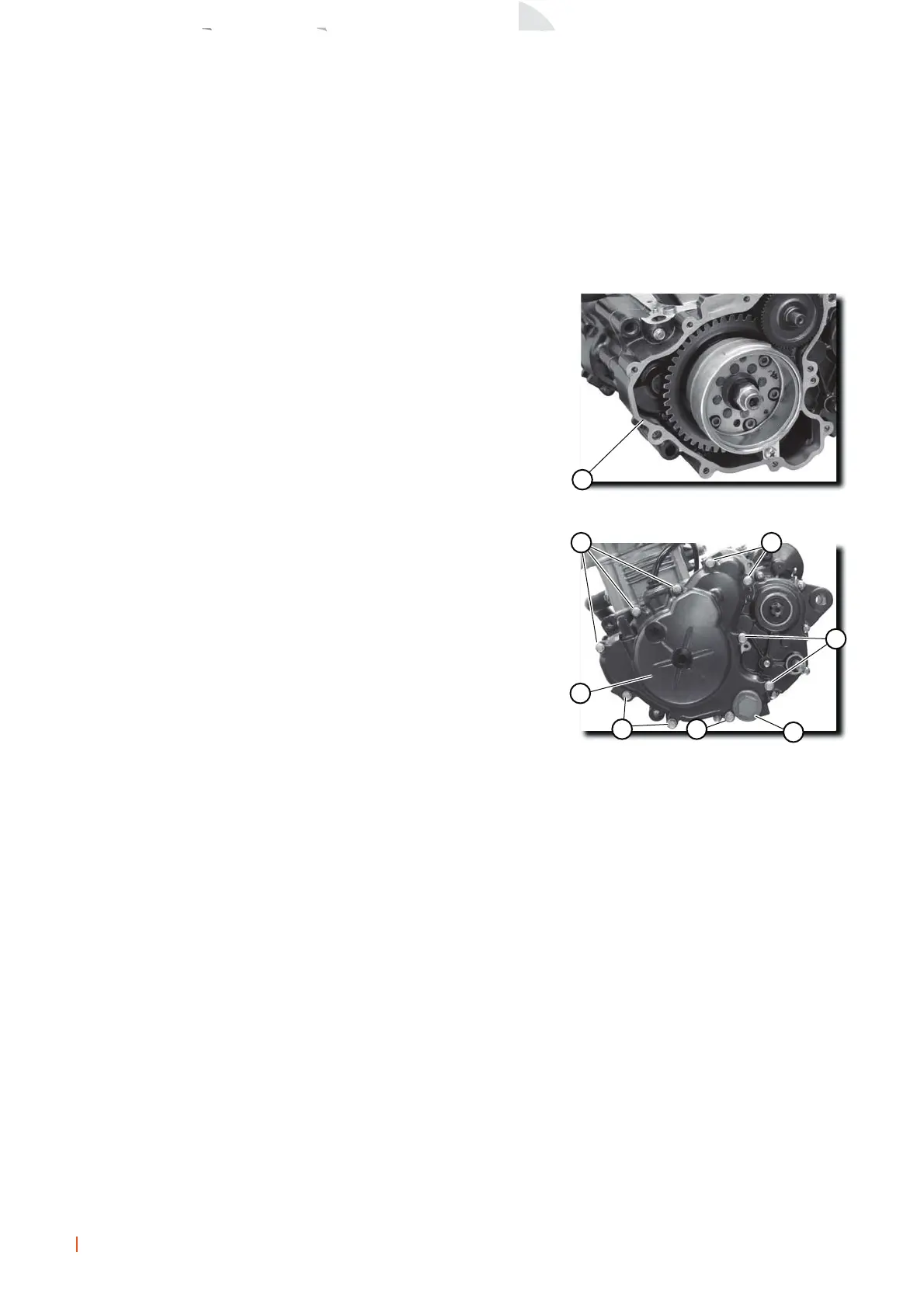

Fit:
- The cover gasket (8) (new gasket).
Fit:
- Cylinder head side cover (9).
- The 10 bolts (10) on the left-hand crankcase cover.
The crankcase cover bolts:
1,1-1,3 kgf.m (11-13 N.m)
IMPORTANT
TIGHTEN THE BOLTS ON THE BLOCK IN SUCCESSION
CROSSWISE, GOING FROM ONE TO ANOTHER TWO OR
THREE TIMES.
Fit:
- The engine oil pre-filter.
- The pre-filter plug (11)
The pre-filter plug:
2,4-3,0 kgf.m (24-30 N.m)
9
11
10 10
10
1010
8
76
ASSEMBLING THE ENGINE
AND ADJUSTMENTS
WORKSHOP MANUAL
