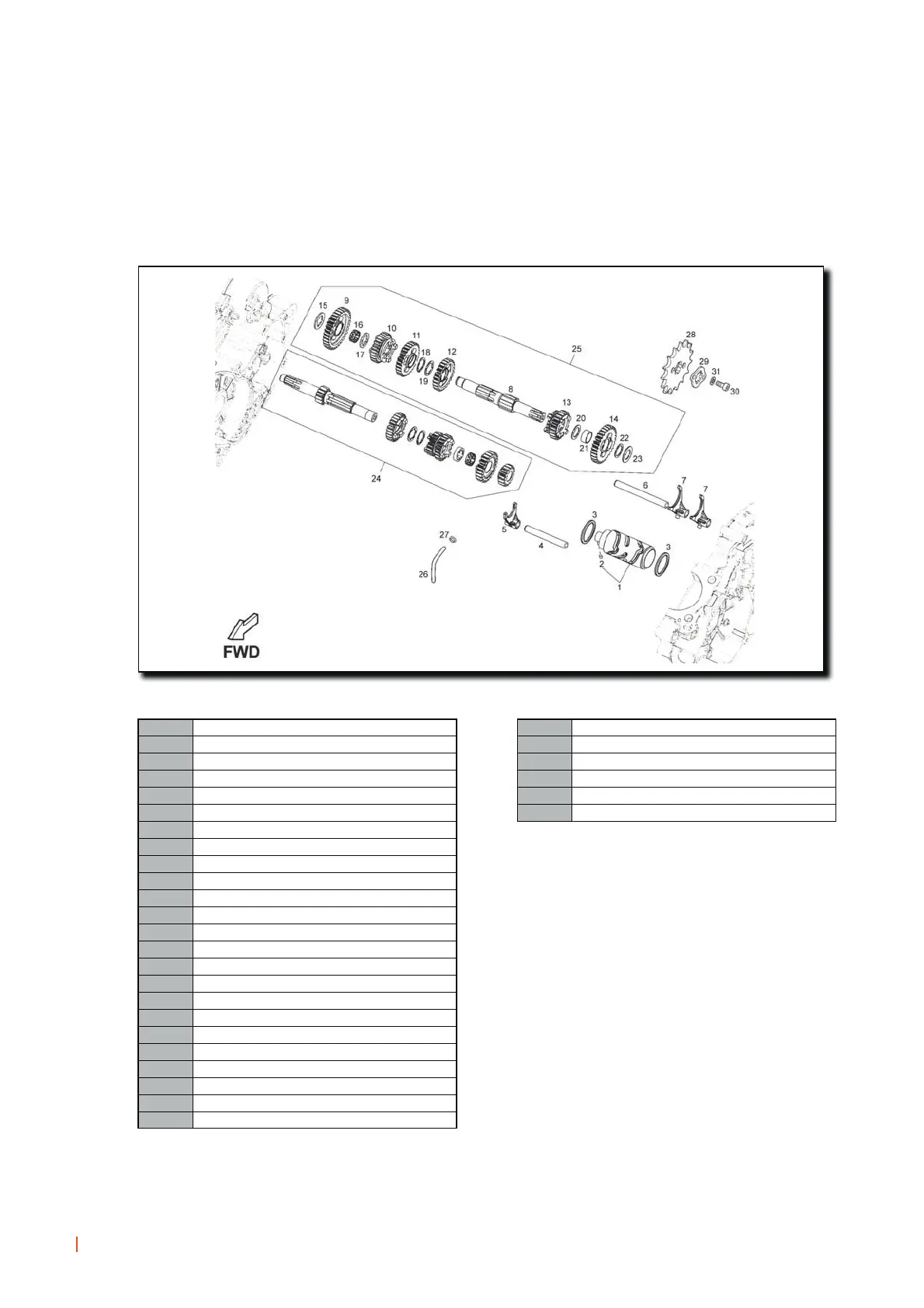

TRANSMISSION PARTS
Distributor drum
Roller
Washer
Primary fork shaft
Cat. 1 gear change fork.
Secondary fork shaft
Cat. 2 gear change fork
Secondary shaft
1st secondary gear 1º
5th secondary gear 5ª
3rd secondary gear 3ª
4th secondary gear 4ª
6th secondary gear 6ª
2nd secondary gear 2ª
Adjustment washer
Needle bearing assy.
Adjustment washer
Safety ring
Adjustment washer
Washer
Bush
Washer
Primary shaft assy.
Secondary shaft assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
27
28
29
30
31
Gear change greasing tube
O-ring
Z14 gear change output gear
Output gear seal
5M80x10 Allen bolt
Int. star washer
61
ASSEMBLING THE ENGINE
AND ADJUSTMENTS
WORKSHOP MANUAL
