um DSR EX 125 User Manual

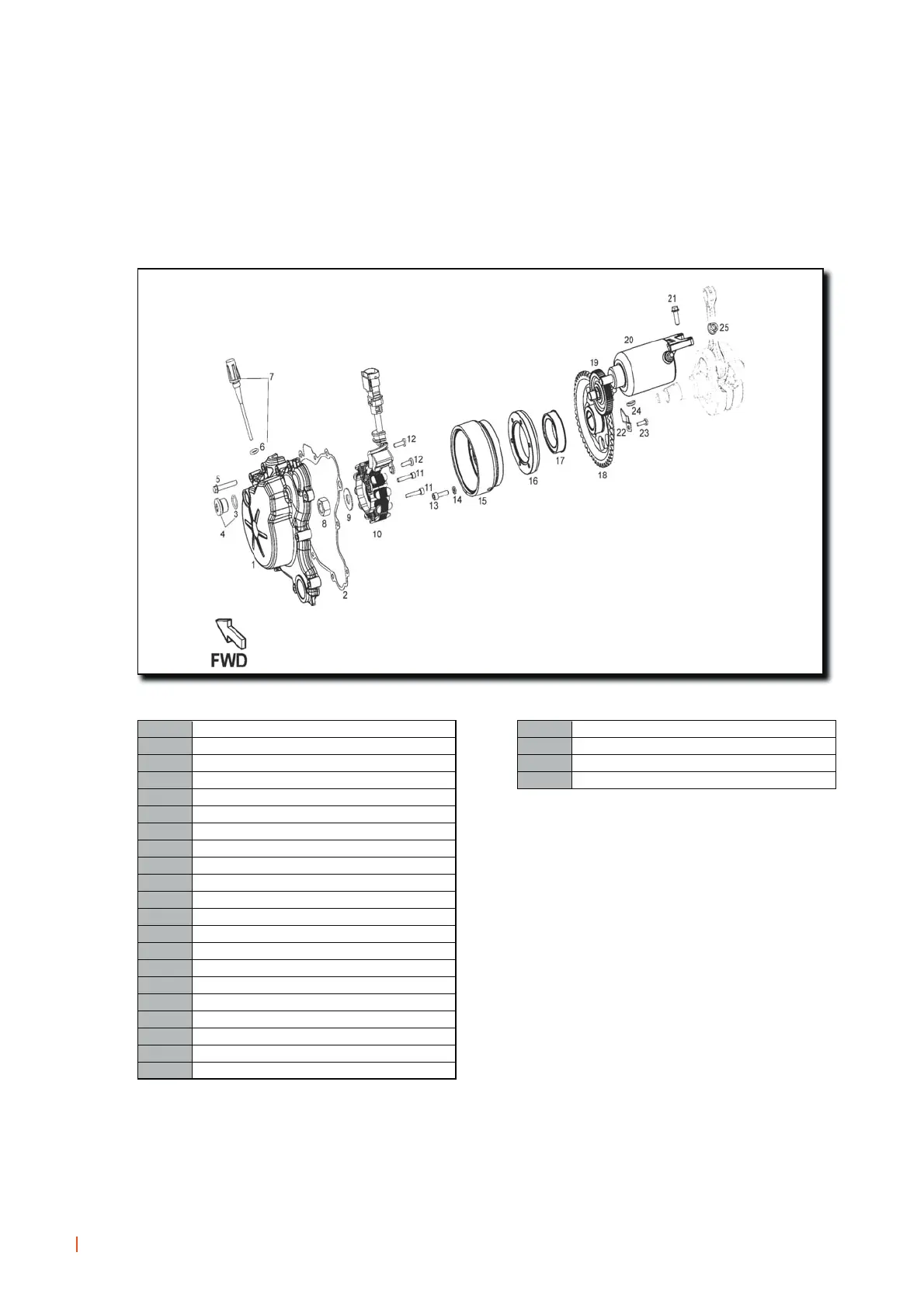

M AGNETO PARTS
Magneto side cover
Magneto cover-crankcase gasket
O-ring
Ignition cover
M6x35 bolt
O-ring
Oil dipstick
Nut
Flat washer
Stator
M 5x25 bolt
M 5x16 bolt
Bolt
Washer
Rotor
Free wheel inner ring
Free wheel
Electric start crown wheel
Starter motor takeo gear
Starter motor
M6x25 bolt
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Starter crown wheel retaining plate
M6x14 bolt
Key
6M100 hexagonal nut with clamp
22
23
24
25
77
