ADJUSTING THE THROTTLE CABLE
N.B:
BEFORE ADJUSTING THE THROTTLE CABLE, THE IDLE
SPEED MUST BE ADJUSTED.

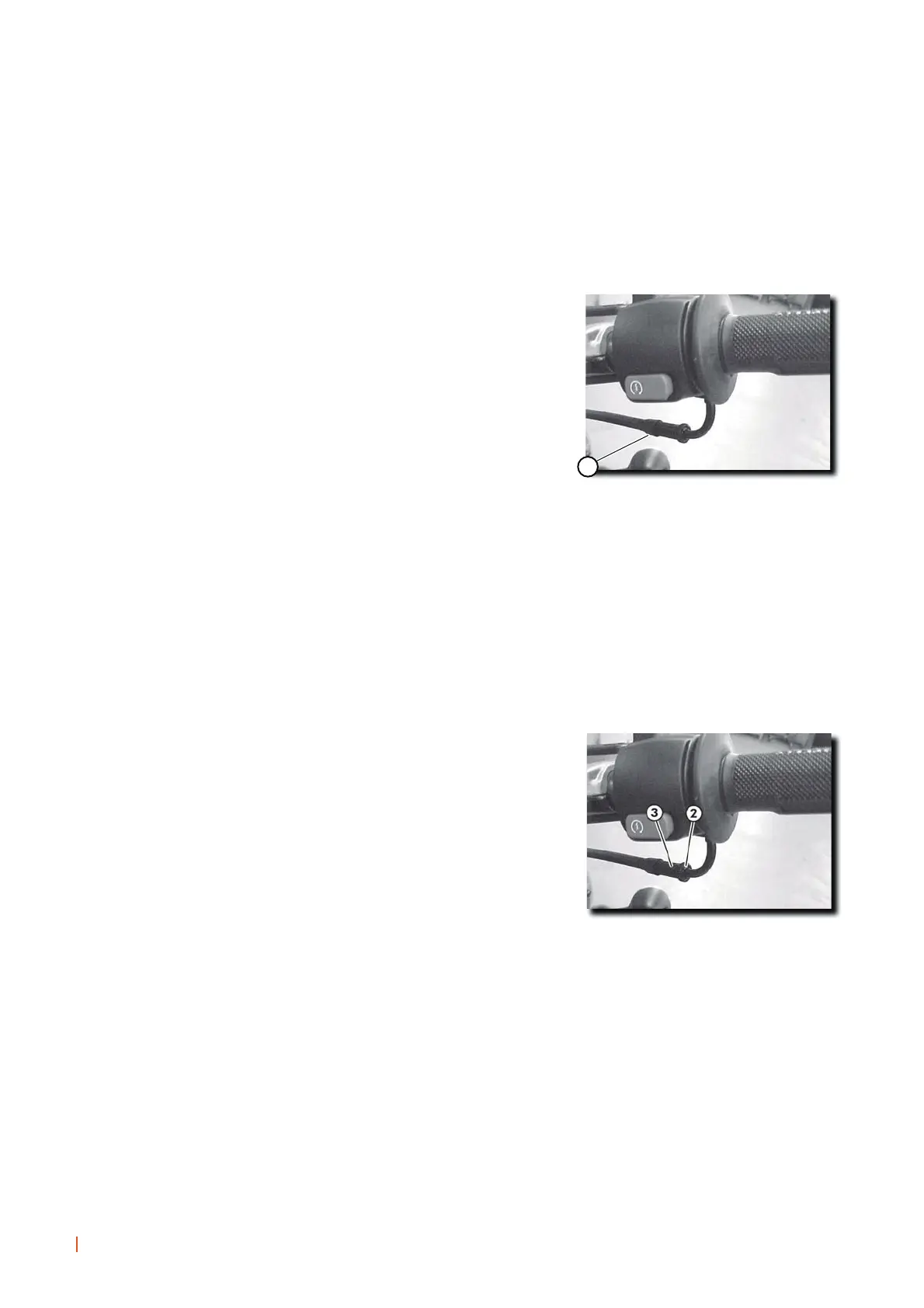

1. Check:
- Throttle cable play (1).
Outside that specified => Adjust .
Clearance:
2÷6 mm.
In the throttle twist-grip plate.
2. Adjust:
- Throttle cable play.
Checking steps:
N.B:
NEVER ACCELERATE WHILE THE ENGINE IS STOPPING.
- Loosen the throttle cable locknut (2).
- Turn the adjuster (3) inwards or outwards until the speci-
fied play is obtained (1).
Turning inwards => Increasing the clearance.
Turning outwards => Reducing the clearance.
- Tighten the lock nut.
N.B.:
IF THE PLAY IS STILL INCORRECT, ADJUST IT USING THE
ADJUSTER (3) BELOW THE TWIST GRIP.
WARNING:
AFTER MAKING THE ADJUSTMENT, TURN THE HANDLE-
BARS BOTH WAYS TO ENSURE THAT THERE IS NO VARIA-
TION IN THE IDLE SPEED.
