ADJUSTING THE VALVES

Remove the camshaft (see chapter)

Valve clearance:

Inlet: 0,10 – 0,15mm para 0,15 – 0,20mm

Outlet: cambiar de 0,15 – 0,20 para 0,20 – 0,25mm

Extract:

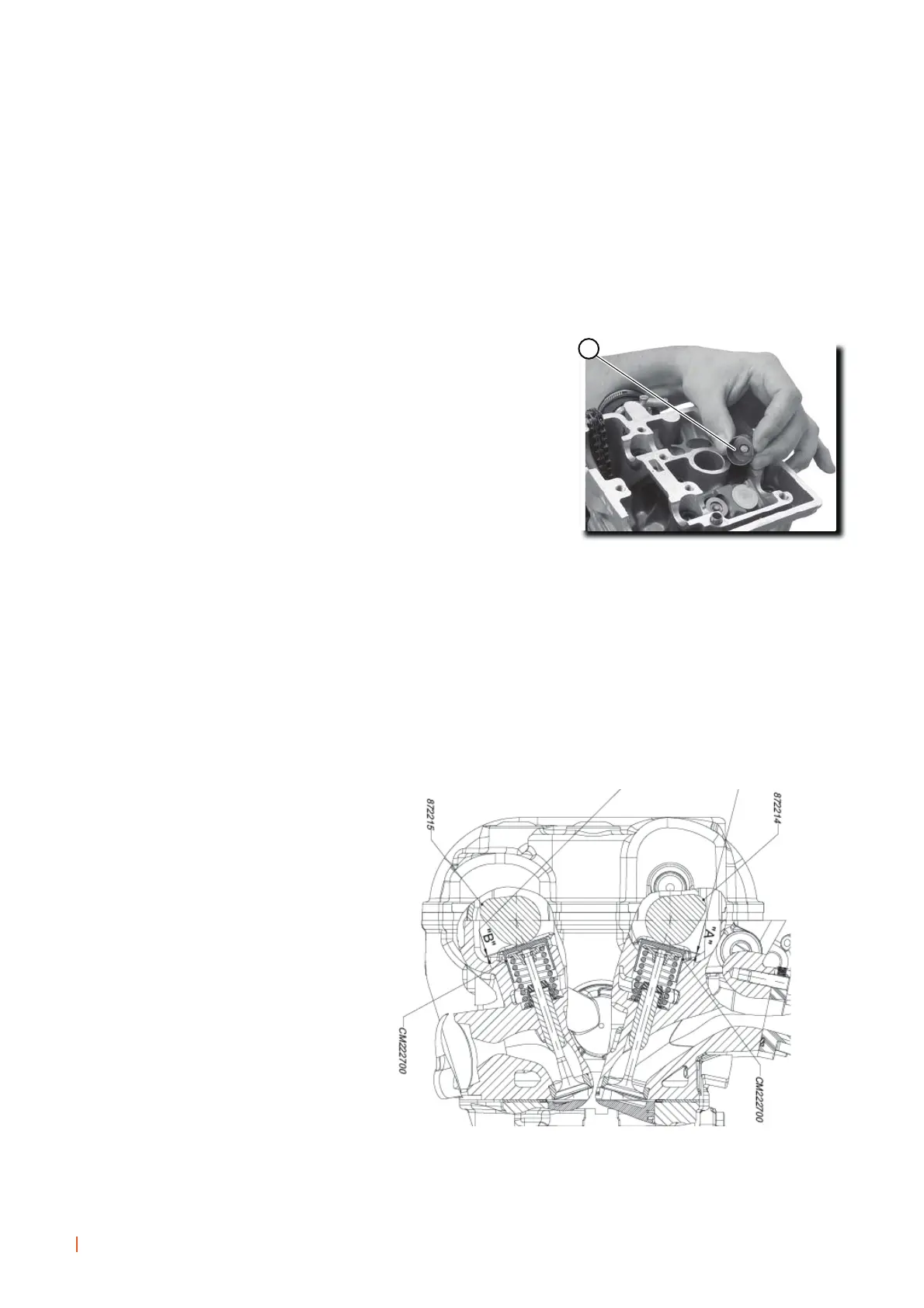

Remove the tappet and check the numbering of the pad fitted (1).

In the event of the clearance being incorrect, continue by

calculating the appropriate pad(s) in accordance with the fo-

llowing calculation:

Thickness of new pad = (A – B) + C (mm)

Where

A= Clearance indicated (inlet or exhaust)

B= Value measured with the feeler gauge

C= Thickness of pad fitted

Example (exhaust valve):

A= 0,20

B= 0,15

C= 2,00

Thickness of new pad = (0,20-0,15)+2,00 = 2,05 mm

INSPECTION AND REPAIR

WORKSHOP MANUAL
