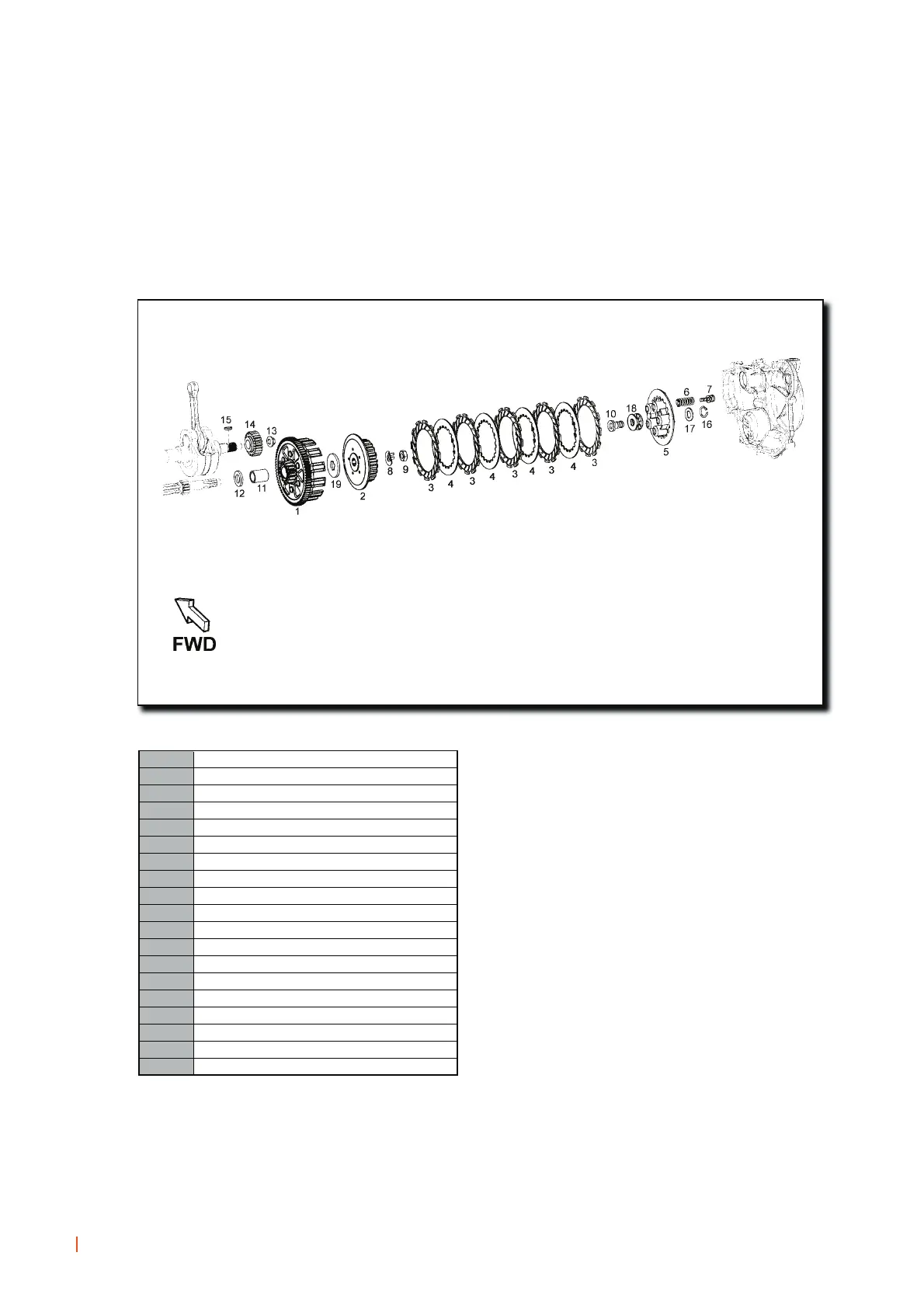

C LUTCH BELL HOUSING PARTS
Clutch bell housing
Clutch casing
HZ driving disk
HZ driven disk
Clutch closing cover
Clutch spring
Bolt with washer
Washer
M6 hexagonal nut
Clutch bolt
Separator
Washer
Nut with tapered spring
Engine gear
Key
Seeger ring
Washer
Needle bearing assy.
Separator bush
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
73
ASSEMBLING THE ENGINE
AND ADJUSTMENTS
WORKSHOP MANUAL
