10.Cable Strain Relief Bracket
The bracket provides cable strain relief when the Teach Pendant is in use, under normal operation.
10.1. OEM Control Box AC

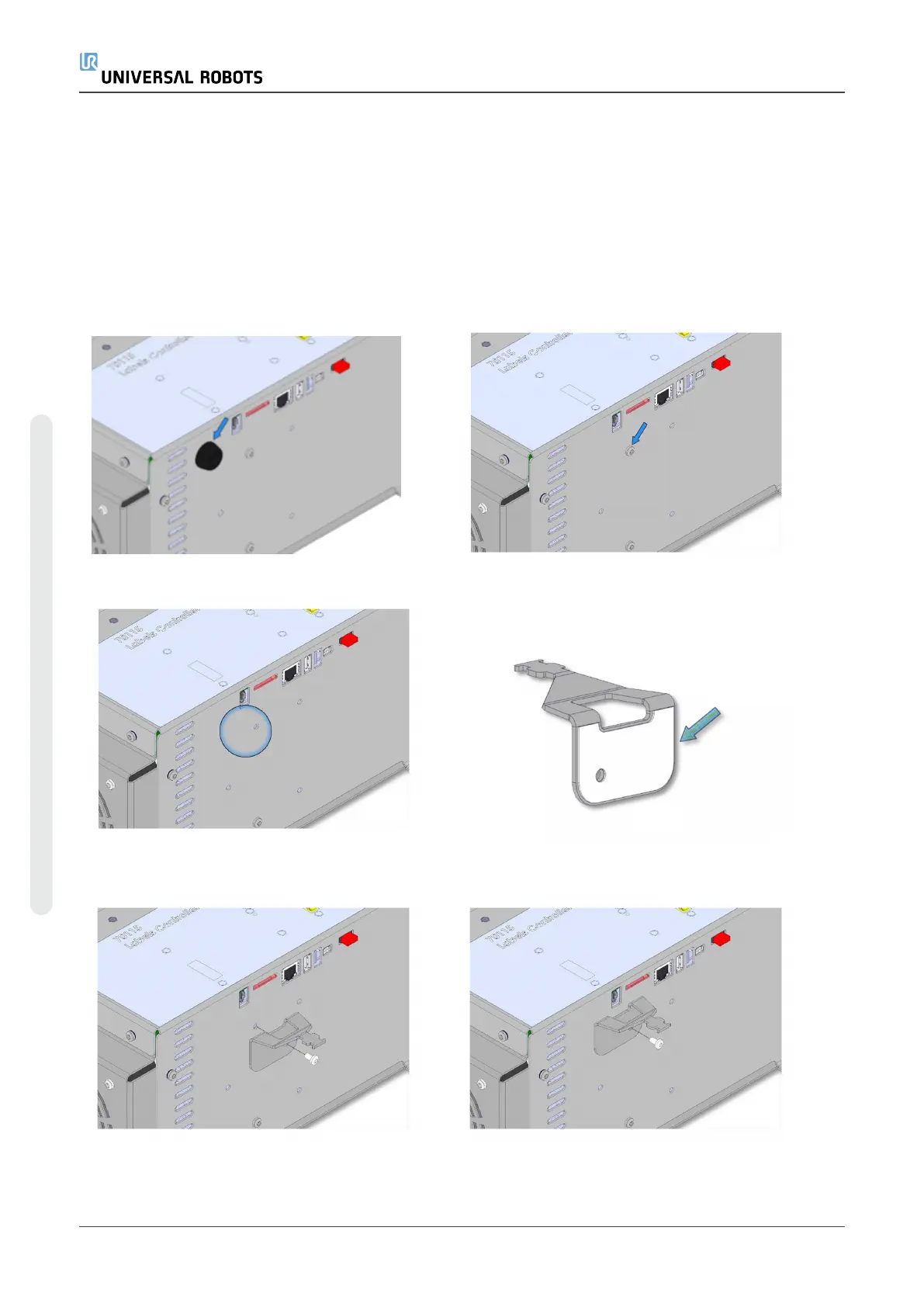

To install and use the cable strain relief bracket
1.Remove grommet 2.Remove screw
3.Clean area with alcohol solution and allow the
alcohol to evaporate.
4.Remove protective film from adhesive patch
5.Align the bracket using the included screw 6.Tighten the included screw (Torque 1Nm)
OEM Control Box Installation Guide
