13
DS1083-048
DESCRIPTION OF TERMINALS
]
LINE
Bus line in
SE+ Positive for pedestrian crossing electric lock
SE- Negative for pedestrian crossing electric lock
A
[
V3 Control camera signal (*)
V5 Reference for control camera signal (*)
B
[
V3 Control camera signal 2 / video switch (*)
V5 Reference for control camera signal 2 / video switch (*)
]
ILA
Output of device for deaf people Ref. 1148/48
(*)
]
SE2
Driveway electric lock activation
T+ Command for video switch (*)
T- Reference for video switch (*)
CT Reference for PA and SP
PA Hall button
SP Open door detector
]
ILL
Power supply for name tags lighting
- Local power supply negative
+ Local power supply positive
EXP Connector for expansion module Ref. 1083/17
I2C Connector for module with voice messages and led Ref. 1148/47 (*)
(*) available only on Ref. 1083/78 and 1083/79

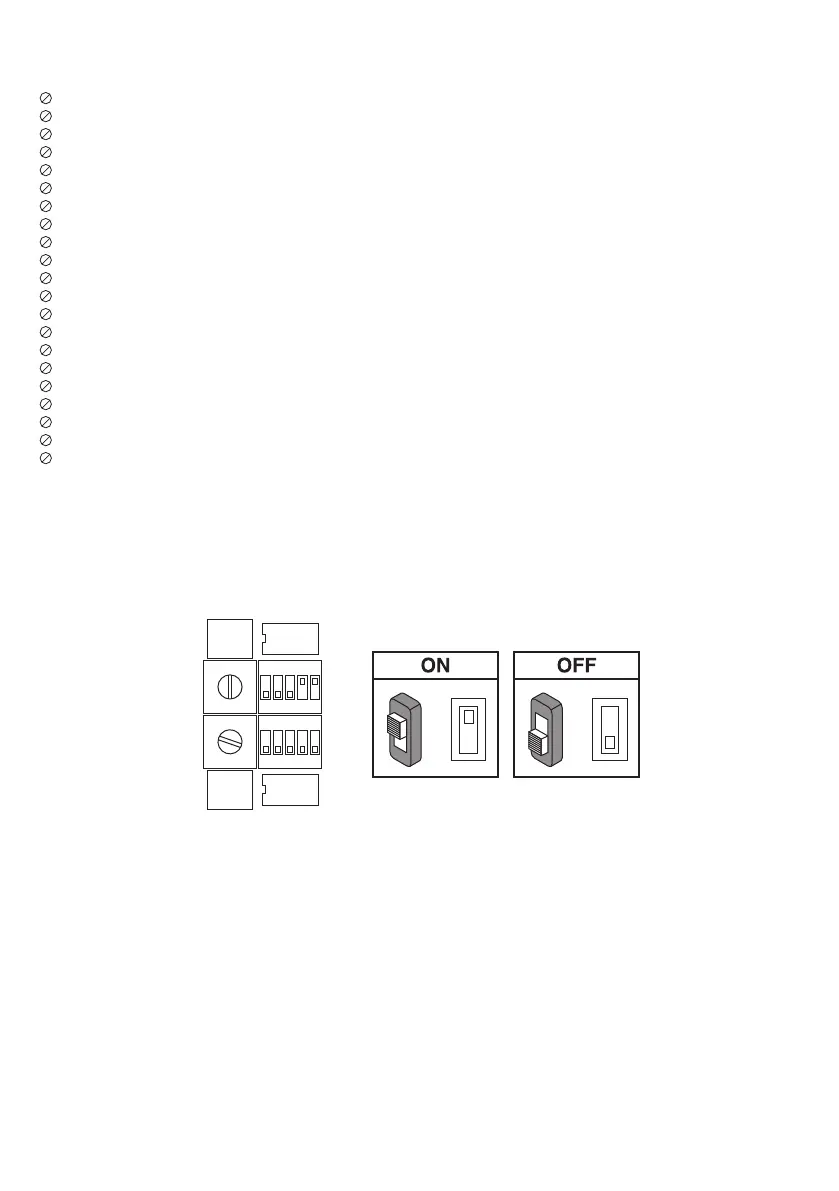

DOOR UNITS CONFIGURATION
= =
ON
ON
AUX
ON DIP
4321 5
0
5
3
8
4
9
1
6
2
7
ON DIP
4321 5
0
5
3
8
4
9
1
6
2
7
DOOR
TIME
ID
CONV
TIME
Default settings: default indoor station settings are:
PE type: main
Secondary number: 0
Door opener: free
Interruption: Not assured
Camera lights: on
Guaranteed conversation time rotary: 30 s (pos 3)
Door lock release rotary: 1 s (pos 0)
Door unit number: 0
