ID: door unit number
Set a number from 0 to 3 if the door unit is a main unit (v. AUX) or from 0 to 31 if the door unit is a secondary
unit as shown in the following gure.
There must not be two main stations with the same ID. Two secondary stations may coexist with the
same ID but with different address (v. AUX).
The ID of the secondary door unit must coincide with the column ID set in the column interface 1083/50,
if present.

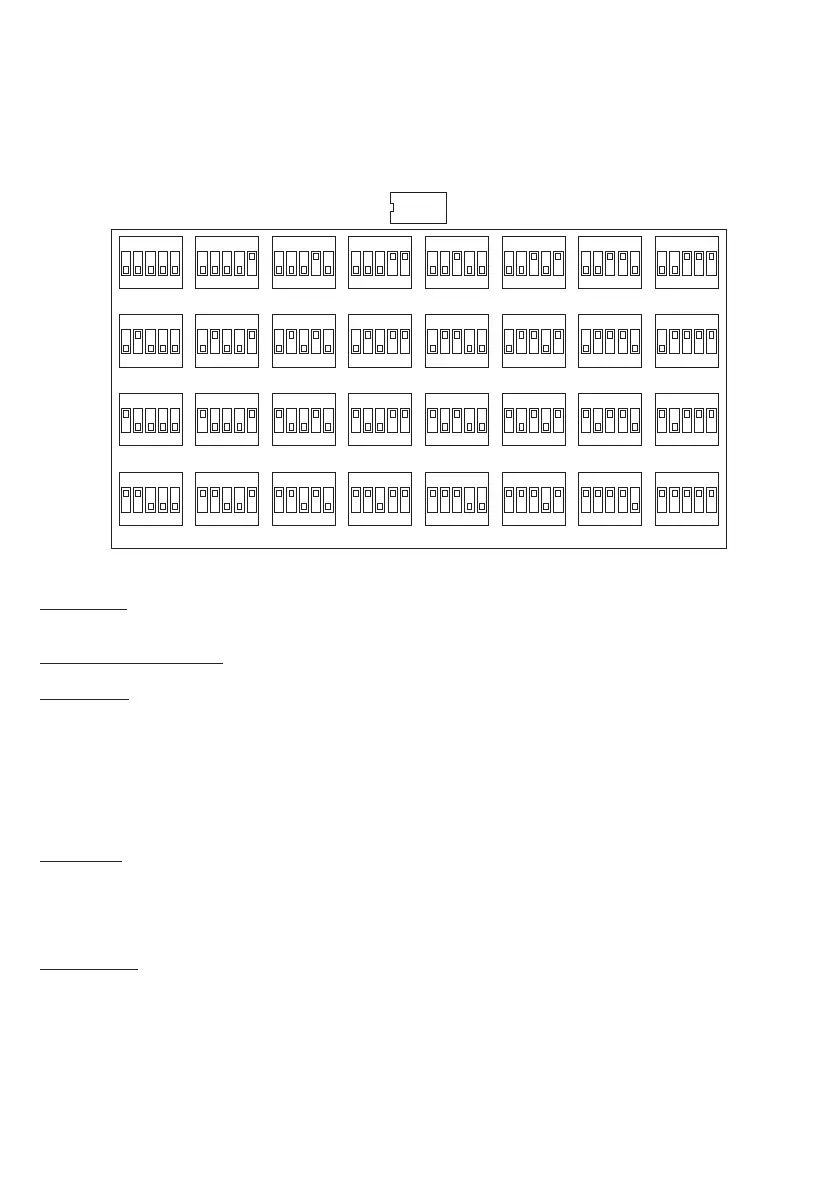

ID
ON DIP
4321 5
ID=0
ON DIP
4321 5
ID=1
ON DIP
4321 5
ID=2
ON DIP
4321 5
ID=3
ON DIP
4321 5
ID=4
ON DIP
4321 5
ID=5
ON DIP
4321 5
ID=6
ON DIP
4321 5
ID=7
ON DIP
4321 5
ID=8
ON DIP
4321 5
ID=9
ON DIP
4321 5
ID=10
ON DIP
4321 5
ID=11
ON DIP
4321 5
ID=12
ON DIP
4321 5
ID=13
ON DIP
4321 5
ID=14
ON DIP
4321 5
ID=15
ON DIP
4321 5
ID=16
ON DIP
4321 5
ID=17
ON DIP
4321 5
ID=18
ON DIP
4321 5
ID=19
ON DIP
4321 5
ID=20
ON DIP
4321 5
ID=21
ON DIP
4321 5
ID=22
ON DIP
4321 5
ID=23
ON DIP
4321 5
ID=24
ON DIP
4321 5
ID=25
ON DIP
4321 5
ID=26
ON DIP
4321 5
ID=27
ON DIP
4321 5
ID=28
ON DIP
4321 5
ID=29
ON DIP
4321 5
ID=30
ON DIP
4321 5
ID=31
AUX: auxiliary settings
Station type: the door unit can be congured either as a main or a secondary device. All the users in the
system may be called from the main door unit. A secondary door unit may only call the users of the column
to which it belongs. Users can identify the source of the call by the ring tone.
Secondary calling station: Two secondary calling stations may be present in a column and must have a
different address
Door opener: The electric lock can be managed in “privacy” or “free” mode. The door unit works as follows
in the two cases:
“Privacy”: the electric lock may only be activated by pressing the door opening button on the calling
station when an audio conversation has been established or when after having received a call or auto-on
function either a video connection has been established.
‘Free’: when pressing the door lock release button of an apartment station, the door unit electric lock can
be activated only if the door unit is congured as main or the user belongs to the column of the same
secondary door unit. This column is dened by the ID setting of the secondary door unit. This function is
typically used for secondary stations.
Interruption: where is in progress an auto-on or an intercom conversation or the video door phone answering
machine browsing, the respective column or the whole system is in busy mode, which, according to the
conguration of this switch, can be interrupted or not by a call from the door unit.
The parameter “interruption” must be programmed in the same way for all system call stations.
Camera lights: the camera lights may be turned off if illumination in the surrounding environment is sufcient
at night.
•
•
•
•
§
