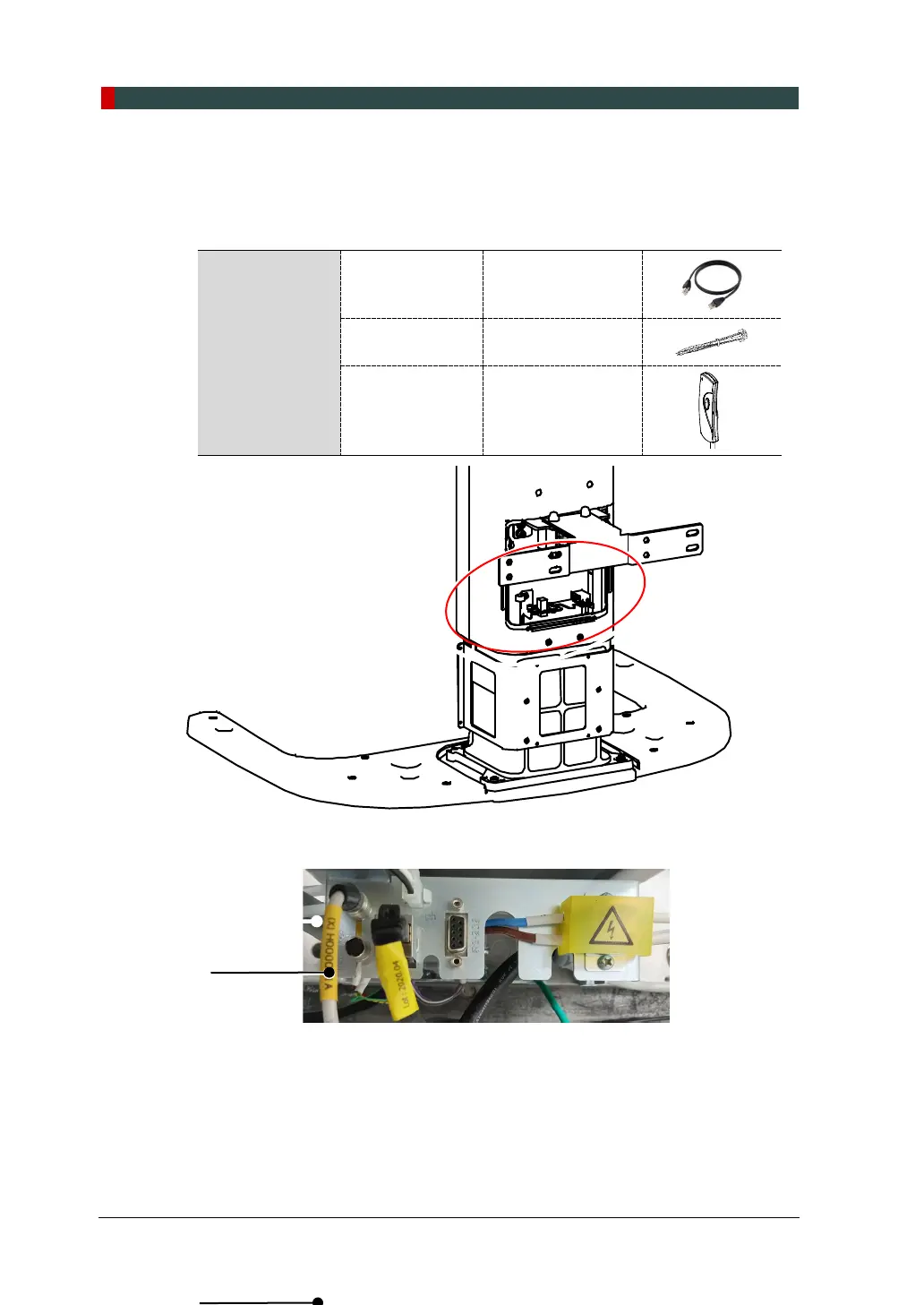

4
.
Installi
ng the Equipment: Base Stand (O
ptional)
60
vatech A9
(Model:PHT
-
30CSS
)
Installation Manual
4.5
Connecting the Cab
les to the Equipment.
1.
Connect the Et
hernet a
nd oth
er
cables in
t
he
back of the Co
lumn Unit
as
shown
in the figure.
Parts and
Accessory
Ethernet Cabl
e
(Part No.
21)
Cable Tie
(Part No. 20)
Exposure Switch
(Part No. 2)
Ethernet Cable
Indicator
(Optional)
Exposure
S
witch
69
71
Table of Contents
Important Notes
6
Table of Contents
7
Table of Contents
8
Introduction
11
Manufacturer's Liability
11
Customer's Responsibility
11
Conventions in this Manual
12
Marks and Symbols
17
Standards and Regulations
19
Choosing an Installation Site
21
Room Requirements
21
Specifications for Electrical Installation
25
Electrical Requirement
25
Environmental Specifications
27
Exposure Switch Installation Options
28
Installation Versions
30
Installing the Warning Lamp and Door Interlock Switch
34
Installing the Emergency Stop Switch
34
Before Installing the System
35
Required Tools
35
Checking the Shockwatch and Tiltwatch
37
Unpacking Boxes
38
Checking the Parts
44
Installing the Equipment: Base Stand (Optional)
52
Assembling the Base and Main Units
52
Installing the CEPH Unit (Optional)
57
Installing the Wall and Column Brackets
60
Fixing the Base (Optional)
66
Connecting the Cables to the Equipment
70
Removing the Transportation Safety Bolts
72
Leveling the Equipment
74
Tightening the Bolts
77
Completing Miscellaneous Works
88
Assembling Various Covers
88
Assembling the Chinrest and Bite
90
Installing the Switch Holders
91
Installing the Real Miscellaneous Works
93
Setting up PC
96
Direct Connection Diagram
96
The Recommended PC Requirements
97
Connecting the Cables to PC
102
Setting up G-Ethernet Grabber
104
Setting up Pc's Environment Variables
110
Before Beginning
110
Turning off the Firewall
111
Setting up the Power Management Options
112
Turning off the User Account Control
114
Setting Folder Exclusions with Anti-Virus Software
115
Installing Software
116
Before Beginning
116
Software Installation Flow
117
Installing Image Viewer Program
117
Installing the Installshield
118
Setting up the User-Specific Information
129
10. Technical Specifications
142
Mechanical Specifications
142
Drawing Dimensions
143
Electrical Specifications
145
Environmental Specifications
146
Vatech A9 (Model: PHT-30CSS) Installation Manual
149
Appendix
149
Installing the Warning Lamp and Door Interlock Switch
149
Installing the Emergency Stop Switch
152
Connecting the 3 Rd Party Exposure Switch (Optional)
153
Checking PC BIOS Settings
154
Installation Checklist
155
Other manuals for Vatech A9
User Manual
196 pages
Technical Manual
214 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Vatech A9 and is the answer not in the manual?
Ask a question
