6. Completing Miscellaneous Works
78 vatech A9 (Model:PHT-30CSS) Installation Manual
6. Completing Miscellaneous Works
6.1 Assembling Various Covers
Base Top Cover Front
Required Tool
Cross Head
Screwdriver w/
Magnetic Tip
L = 200 mm (7.9”)
Parts and
Accessory
Base Top Cover
Front
-
Pan Head Screw
M4 x 6 – 4 pcs
(Part No. 27)
Silicon Cap
(White)
4 pcs
(Part No. 16)

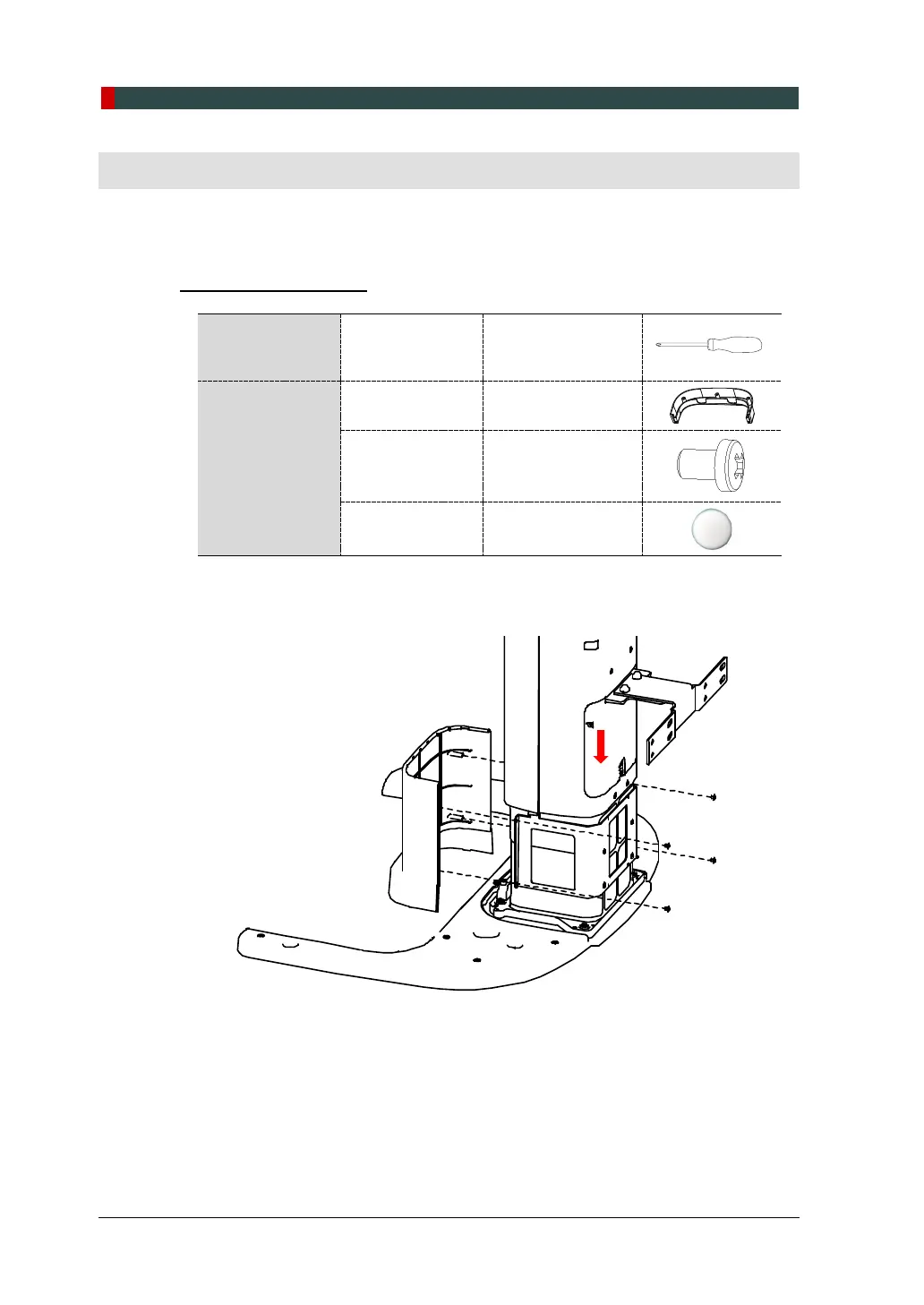

1. Assemble the Base Top Cover Front in front of the Column Unit with 4 truss bolts
and a screwdriver. (see below)
2. Put a silicon cap (white) into each hole to complete the step.
