4. Imaging System Overview
22 Green Smart User Manual
4.6 Equipment Overview

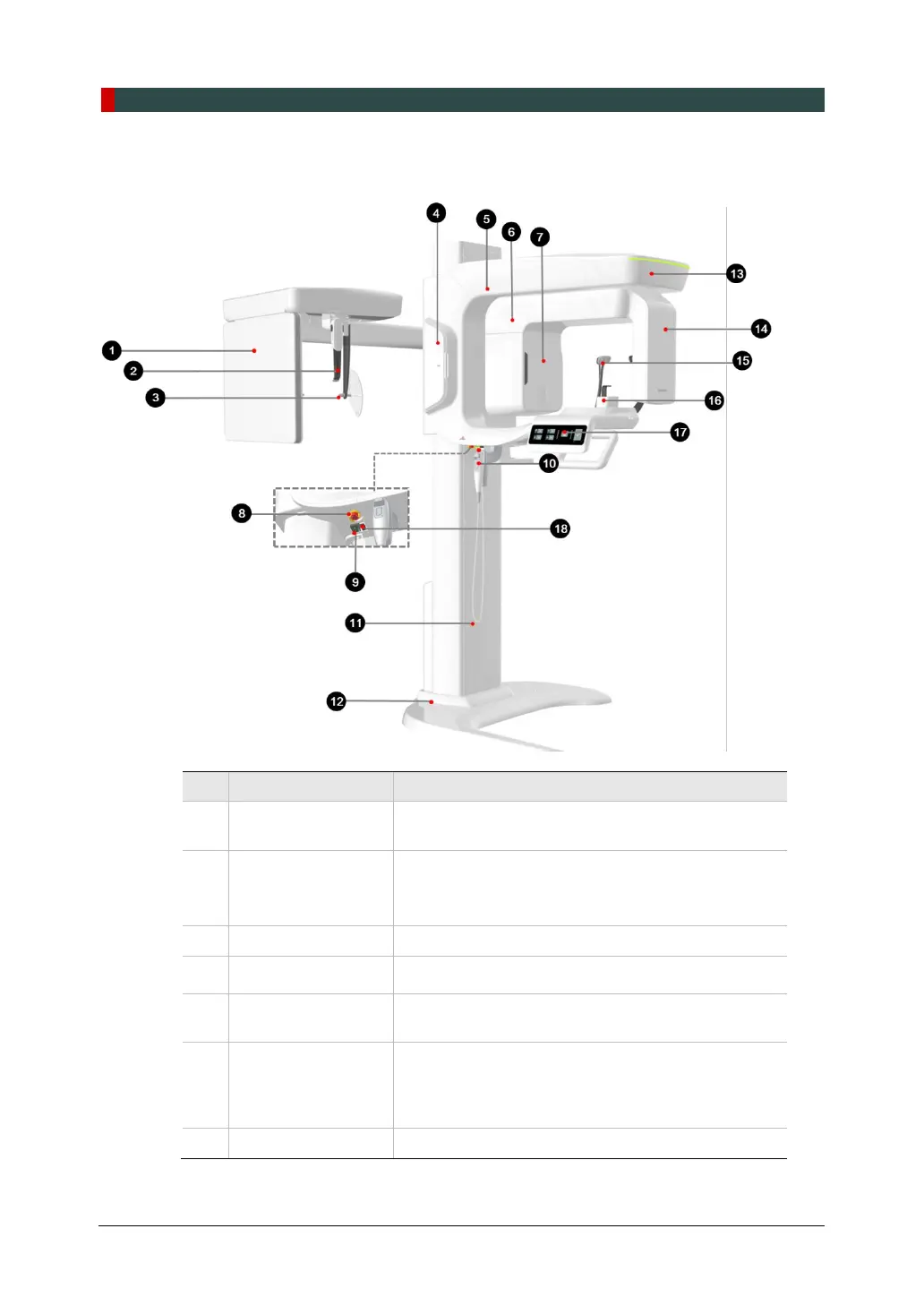

No. Item Description
1
X-ray Detector for
CEPH (Optional)
Xmaru2602CF for CEPH imaging sensor
2 Nasal Positioner
− Positions the patient during CEPH imaging.
− The ruler used for reference in an acquired image
that is different from the actual size
3 Ear Rods Secure the patient’s head during CEPH imaging.
4
Enclosed Component
Storage
The place where Bites, Chinrest Ass’y, and the other
components can be stored.
5 Vertical Frame
Can be controlled by Column UP/DOWN switch.
6 Rotating Unit
Rotates around the patient's head while the image is
being acquired.
(Its movement is different according to the scan
mode.)
7 X-ray Generator The vacuum tube where the X-ray is produced.
