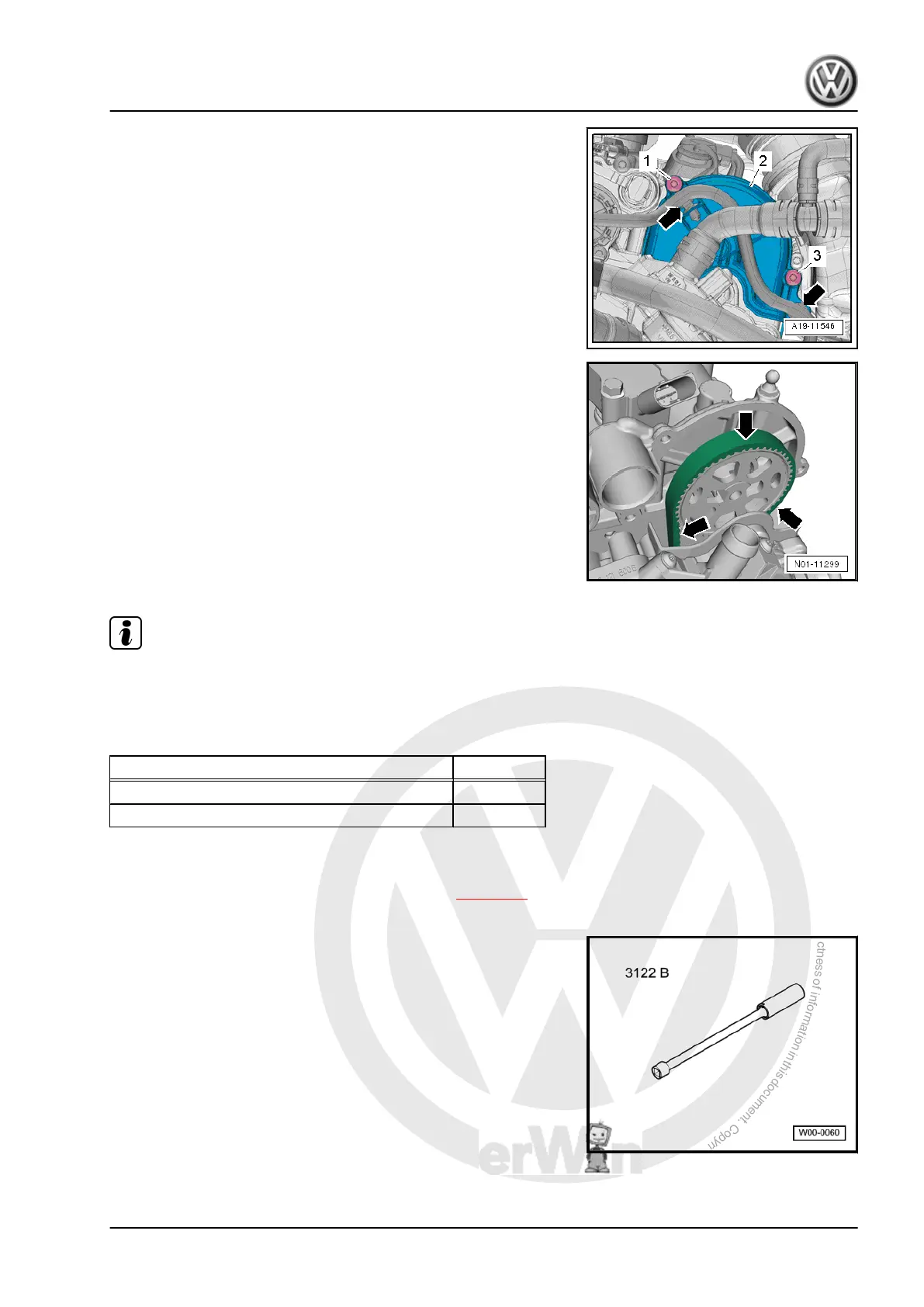

– Lay wiring harness to one side -arrows-.
– Unscrew bolts -1, 3- and remove cover -2- for toothed belt for
coolant pump.
– Turn crankshaft by the bolt of the crankshaft toothed belt in the
direction of the engine and check the entire toothed belt for the
following:
♦ Cracks, cross-sectional breaks, cracks (coating) -arrow-
♦ Side contact
♦ Fraying of cord strands
♦ Cracks (in teeth base) -arrow-
♦ Layer separation (toothed belt body, draw strands)
♦ Surface cracks (synthetic coating)
♦ Traces of oil and grease
Note
If faults are found always renew toothed belt. This will avoid pos‐
sible breakdowns or operating problems. The replacement of a
toothed belt is a repair measure.
Installation is carried out in reverse order of removal.
Torque setting Nm
Bolt for toothed belt guard 8
Bolt for crankcase breather 9
4.47 Spark plugs: Renewing
Renewing spark plugs, 1.2 l and 1.4 l TSI engines ⇒ page 98 .
Special tools and workshop equipment required
♦ Spark plug socket and extension -3122 B-
Golf 2013 ➤
Maintenance - Edition 10.2012
4. Descriptions of work 97
