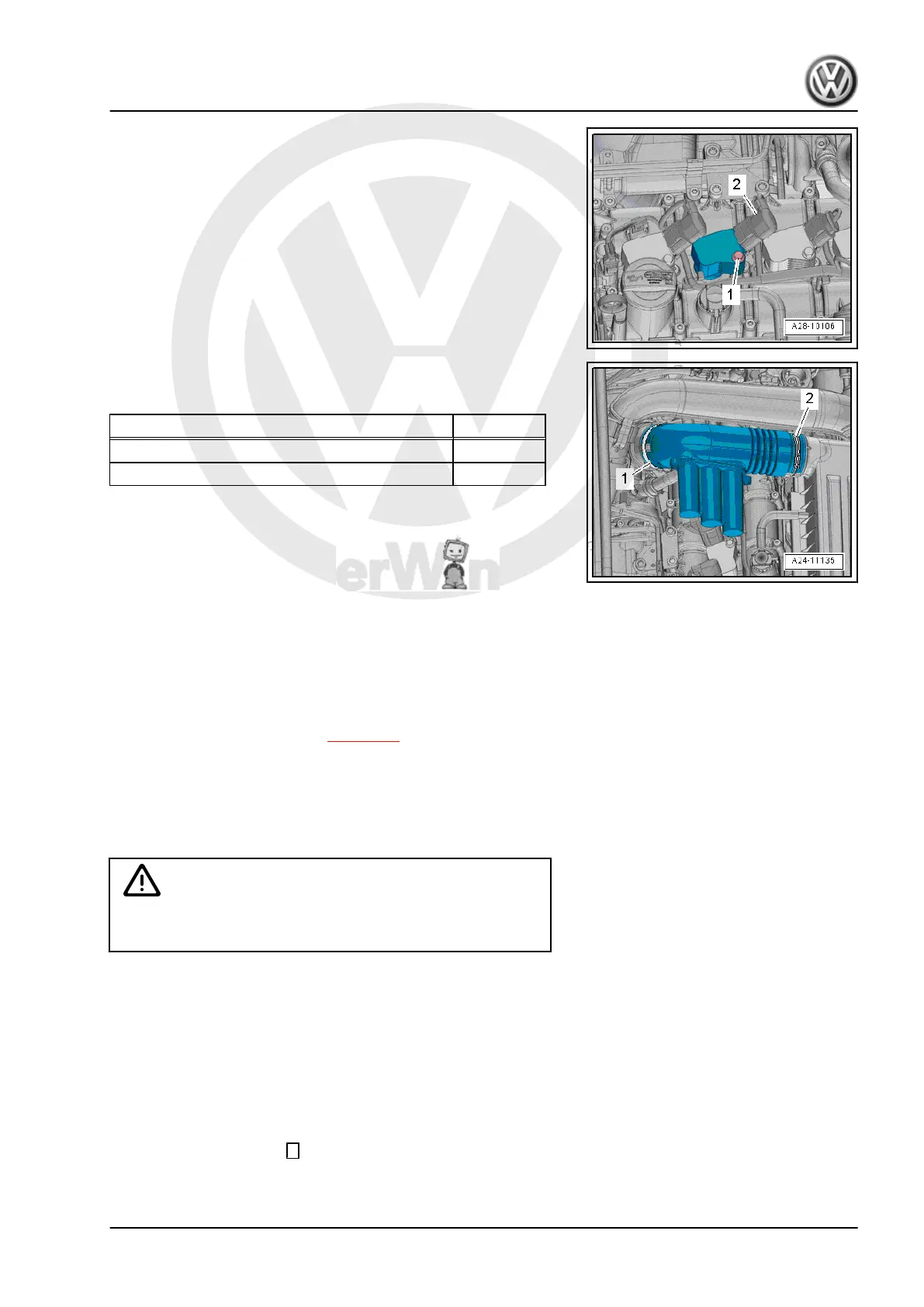

– Tighten bolt -1- of pencil-type ignition coil to specified torque.
– Reconnect electrical connector -2-.
Repeat the procedure for all other pencil-type ignition coils.
– Fit air pipe.
– Fit hose clips -1- and -2-.
Torque setting Nm
Spark plugs in cylinder head 22
Bolt for ignition coil with output stage 8
4.48 Reading fault memory of all systems
with vehicle diagnostic tester , correct‐
ing possible faults according to repair
guidelines
Procedure
– Connecting diagnosis tester ⇒ page 13 .
– Select “Vehicle self-diagnosis”.
– Select “self-diagnostic” system.
– Read “equipment configuration list”.
– Repair all faults according to repair guidelines.
Caution
The vehicle must always be delivered to the customer with
event memory cleared.
Static faults
If one or more static faults are found in the fault memory, we rec‐
ommend in agreement with the customer to rectify these faults
using guided fault finding.
Sporadic faults
If only sporadic faults or notes are stored in the event memory
and the customer has no complaints regarding the electronic ve‐
hicle system, erase event memory.
– Press continue button > again to go to the test plan.
– Now finish guided fault finding using GoTo button and then
End.
Golf 2013 ➤
Maintenance - Edition 10.2012
4. Descriptions of work 99
