7. Display elements and symbols

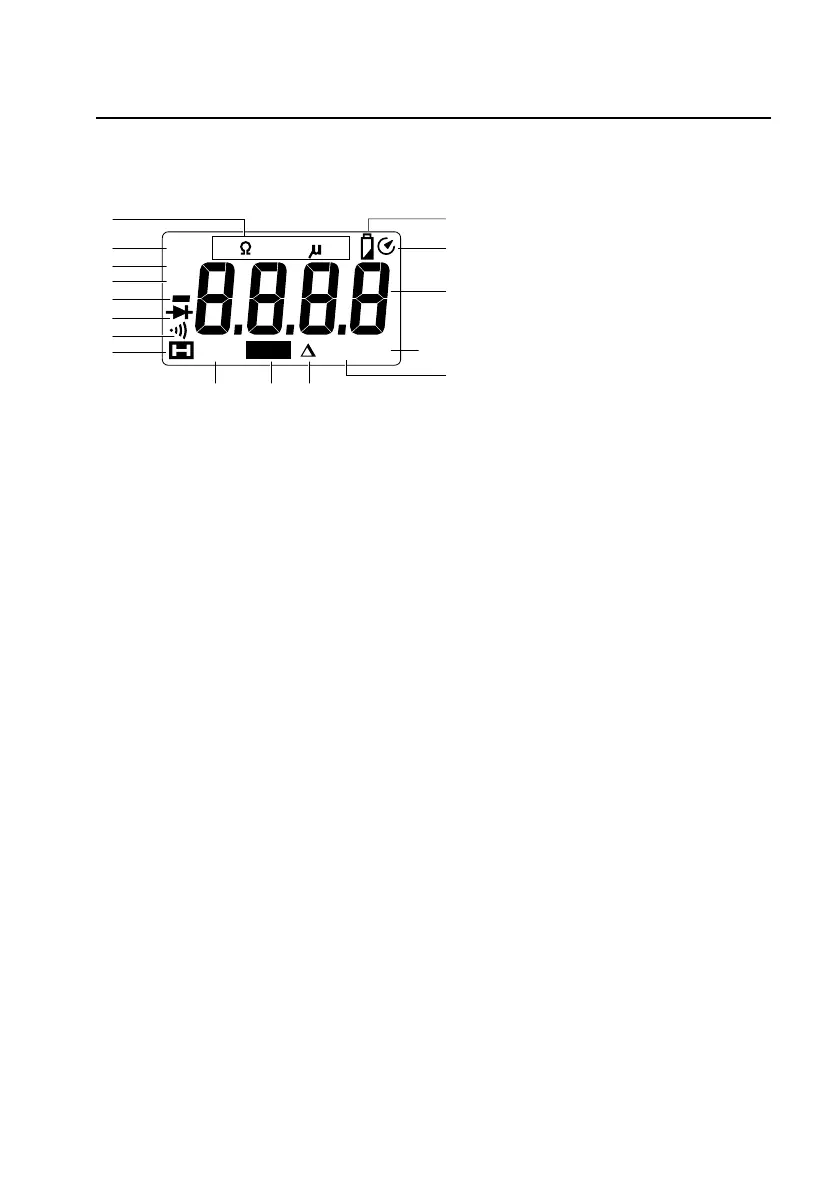

The following symbols and information are available on the device or in the display (5).
For production reasons, during the function test, some icons may appear in the display but they are not required by
this model type.
I
J
A
C
B
D
FG
NCV
Auto
DC
AC
T
RMS
ZERO
Mk nmVFA
E
VFC
P
A Battery replacement indicator
B Automatic power-off is active
C Measurement display
D Zero adjustment symbol
E Symbol for relative value measurement
F Symbol for automatic measuring range selection
G Symbol for non-contact AC voltage detection
H Symbol for active data hold function
I Symbol for continuity tester
J Symbol for diode test
K Sign for negative measured values
L Symbol for DC measurement
M Symbol for AC measurement
N Symbol for true effective measurement
O Measurement units
V = Volt (unit of electrical voltage)
mV = Milli-Volt (exp.–3)
A = Ampere (unit of electric current)
nF = Nano Farad (exp.-9, unit of electrical capacity)
μF=MicroFarad(exp.-6)
Ω=Ohms(unitofelectricalresistance),
kΩ=Kiloohms(exp.3),
MΩ=Megaohms(exp.6)
P Symbolforactivesoftwarelow-passlter
