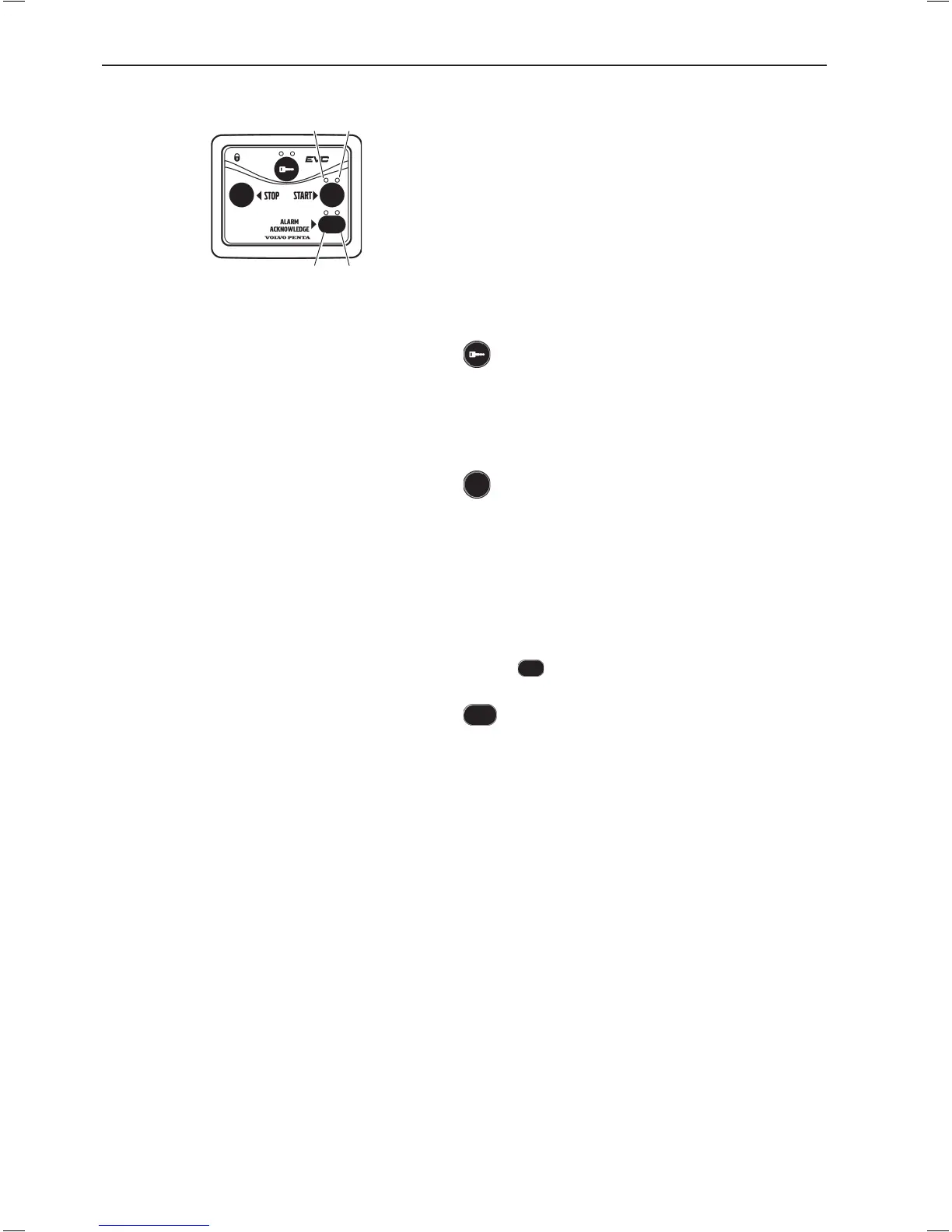

Docking Station Panel
The docking station panel allow stopping and restarting
of the engines and handling of faults when operating the
boat from a docking station.
The docking function (maneuvering with the joystick) is
enabled when the docking station is activated.
Please refer to the chapter “Operation” section “Docking
(Joystick)” for more information on docking.
NOTE! Docking station can only be activated when the
engines are running.
NOTE! Always push the buttons firmly for at least one
second.
ACTIVATION BUTTON
Push this button on the docking station panel to activate
and lock/unlock the docking station. For more detailed
instructions please refer to the section “EVC control
panel”, headlines “Activation button” and “Padlock sign”,
in this chapter.
STOP and START BUTTONS
Push these buttons to stop or restart the engines.
NOTE! Both engines must be running when using the
docking function.
LED indication above the button: White
Lit: Port engine (1)/Starboard (2) engine are/is running.
Off: Port engine (1)/Starboard (2) engine are/is shut off.
Flashing and accompanied with a buzzer: The engine(s)
has stopped without a stop request. Silence the buzzer
with the ALARM ACKNOWLEDGE BUTTON and
restart the engine(s).
ALARM ACKNOWLEDGE BUTTON
Push this button to acknowledge an alarm of a fault.
A fault is always indicated with a flashing LED above
the button and a more serious faults is also indicated
with a buzzer. When the fault is acknowledged the LED
will light continuously and the buzzer will silence. The
fault pop-up must be read and acknowledged on a sta-
tion that is equipped with displays. Please refer to the
“Operation” chapter, section “Acknowleging alarms and
messages”.
LED indication above the button: Red
Flashing: Port (1)/Starboard (2) engine has a fault.
Lit: The fault is acknowledged.
