Propellers
For best performance and fuel economy the engine speed should be within the maximum RPM range: See
chapter “Operation”. If the engine speed at maximum RPM falls outside the max. RPM range then the propeller
should be changed.
WARNING! Make it impossible to start the engine when working on the propellers. Take the starter key
out of the starter switch.
IMPORTANT! Damaged propellers should be replaced immediately. Operating the boat with a damaged
propeller should be undertaken with extreme care and only at reduced engine speeds.

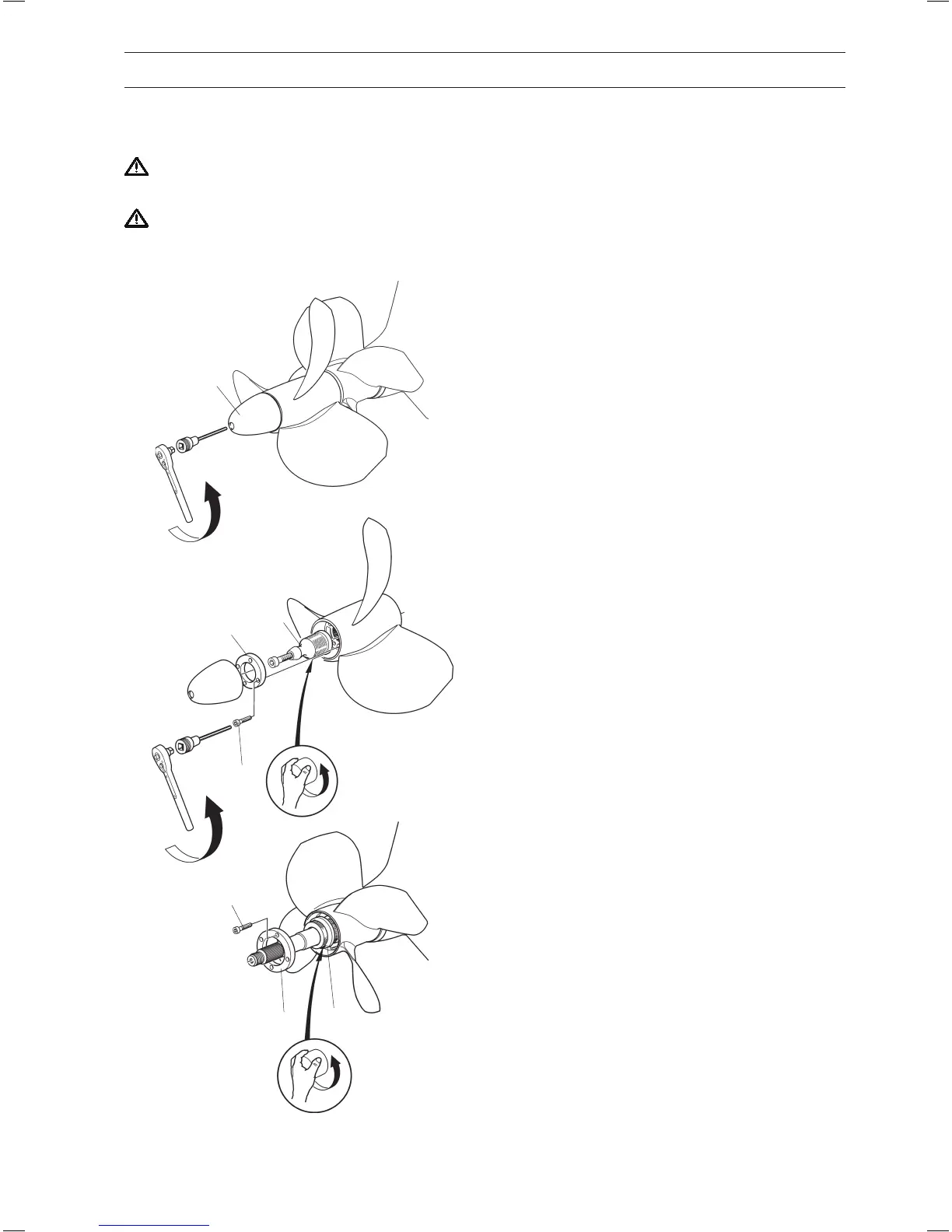

Propellers. Drive-unit
Note! A special tool (A) for removing and fitting the
propellers is supplied together with the drive-unit (see
figure).
Dismantling
1. Take the starter key out of the starter switch.
2. Remove the spinner (1) using the special tool.
1
3. Undo the locking ring with the accompanying spe-
cial tool by unscrew the four socket cap screws
(2). Remove nut (B) and locking ring (3). Remove
the forward propeller from the propeller shaft.
4. Undo the locking ring for the aft propeller with the
accompanying special tool by unscrew the four
socket cap screws (4). Remove nut (C) and lock-
ing ring (5). Remove the aft propeller from the pro-
peller shaft.
5. Wipe the propeller shafts clean.
4
C
5
2
B
3
A
87
