Wacker Neuson DT10 User Manual

BA DT10 en - Edition 1.5 * dt10b320.fm 3-1
Operation
3Operation
This chapter describes the controls, and contains information on the function and handling
of the indicator lights and controls.
The pages stated in the table refer to the description of the controls.
Numeric or alphanumeric combinations (for example 40/18 or 40/A) used for identifying
control elements, mean:
figure no. 40/control element no. 18, or position A in figure no. 40
Figures carry no numbers if they are placed to the left of the text.

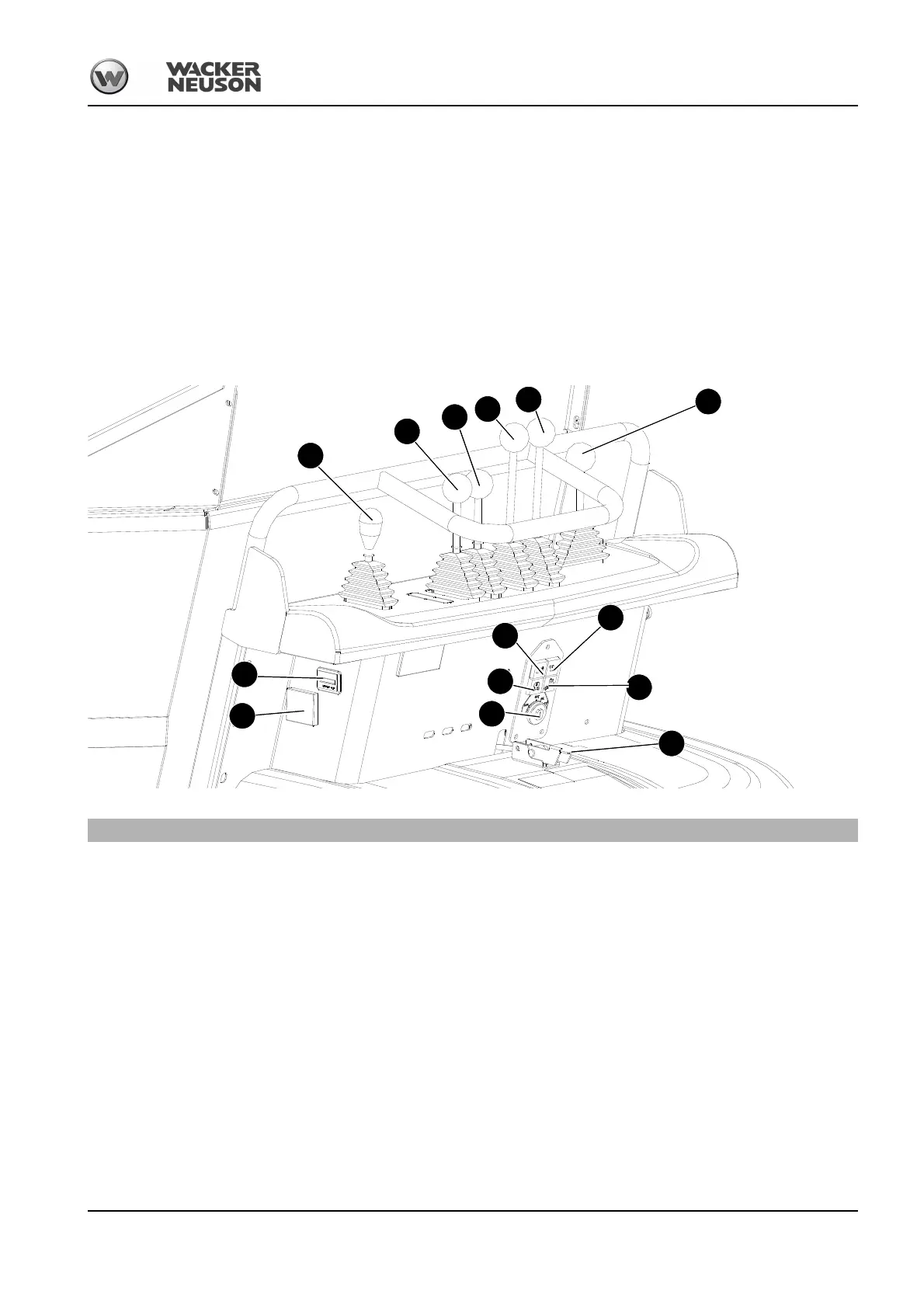

3. 1 Overview of the operator's cab (front tip skip model, front tip skip for light-
weight material)
1
2
4
8
7
9
3
10
11
12
6
13
14
5
Item
Description For more information see page
1 Self-loading equipment operation ...........................................................................................................................................3-17
2 Skip operation .....................................................................................................................................................................3-17
3 Drive lever (left) ....................................................................................................................................................................3-13
4 Drive lever (right) ..................................................................................................................................................................3-13
5 Throttle
6 Hour meter
7 Ignition lock.............................................................................................................................................................................................
3-10
8 Charge function indicator light ..................................................................................................................................................3-5
9 Engine oil pressure indicator light .............................................................................................................................................3-5
10 Water temperature indicator light..............................................................................................................................................3-5
11 Indicator light – diesel engine glow plug preheating ....................................................................................................................3-5
12 Lock for cover
13 Fuse box.................................................................................................................................................................................................
6-12
14 Actuation of the hydraulic PTO shaft (H.P.T.O.) (optional) ................................................................................................................... 3-30
