5-28 BA DT10 en - Edition 1.5 * * dt10b530.fm
Maintenance
5.6 Tracks
Careful when working on the tracks –
Accident hazard!
☞Use suitable means to support and secure the vehicle
☞In addition, ensure that the vehicle cannot overturn
Check track tension
Check track tension as follows:
☞Park the dumper on firm and level ground
☞Raise the dumper with suitable means
☞Tracks should be raised off the ground
☞Stop the engine
☞Use additional supports for the dumper and ensure that it cannot overturn
☞Measure the clearance at the middle track roller A
➥The rubber track should not sag more than 15 mm when tight
If possible, the distance from the rollers should be the same for both tracks.
Tightening the tracks
Perform the starting aid as follows:
☞Park the dumper on firm and level ground
☞Raise the dumper with suitable means
☞Tracks should be raised off the ground
☞Stop the engine
☞Use additional supports for the dumper and ensure that it cannot overturn
☞Screw in adjusting screw B with a suitable tool
➥Cylinder C is extended
➥The track is tensioned
☞Check track tension
➥Repeat the procedure if the tracks are not tight enough
Check track tension once a day since excessive or insufficient track tension can
damage the tracks and the components of the undercarriage.

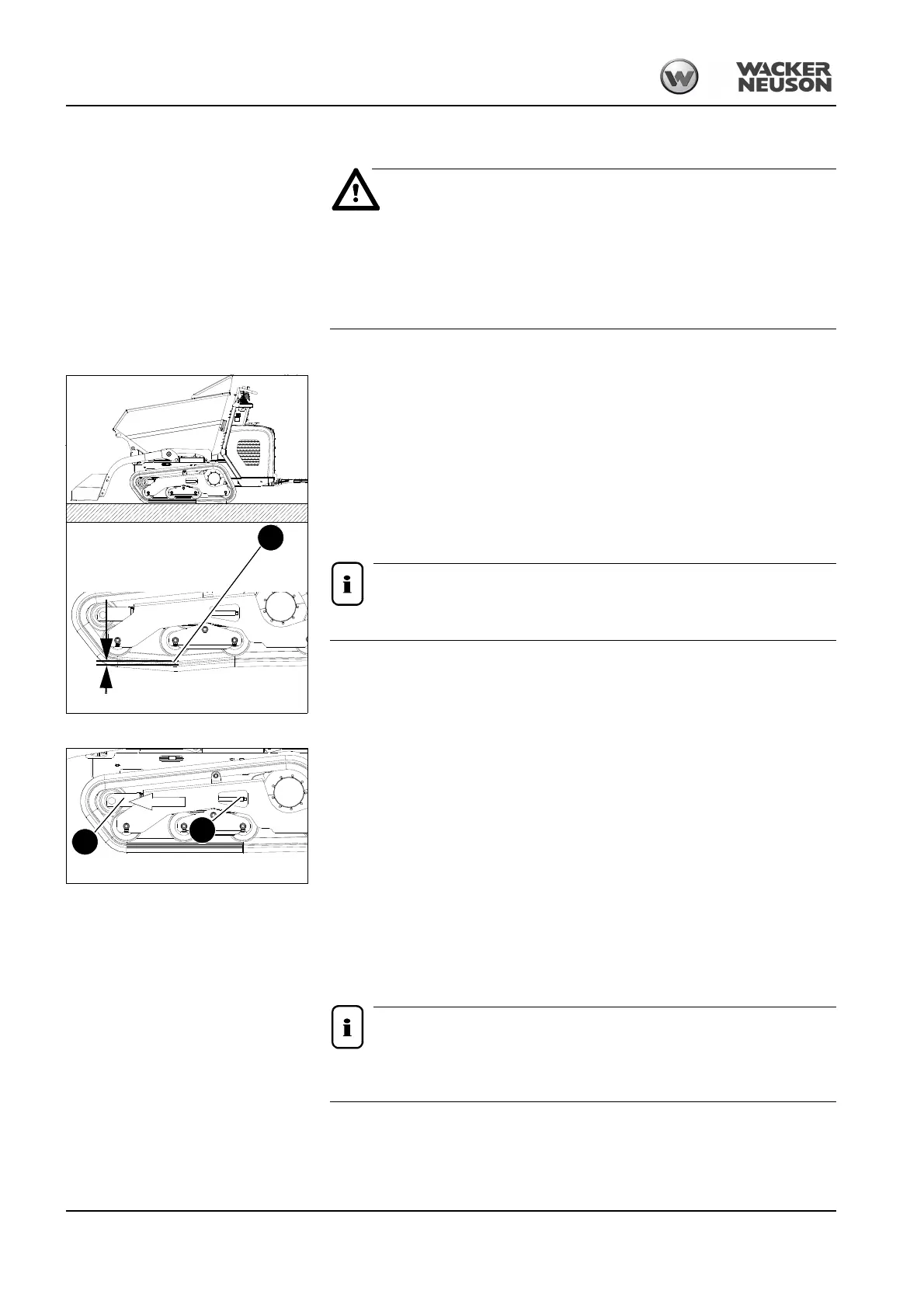

Fig. 91: Checking track tension
15 mm
A
Fig. 92: Increasing track tension
B
C
