Changing Drums (RTx-SC3) RT / RTx
Continued from the previous page.

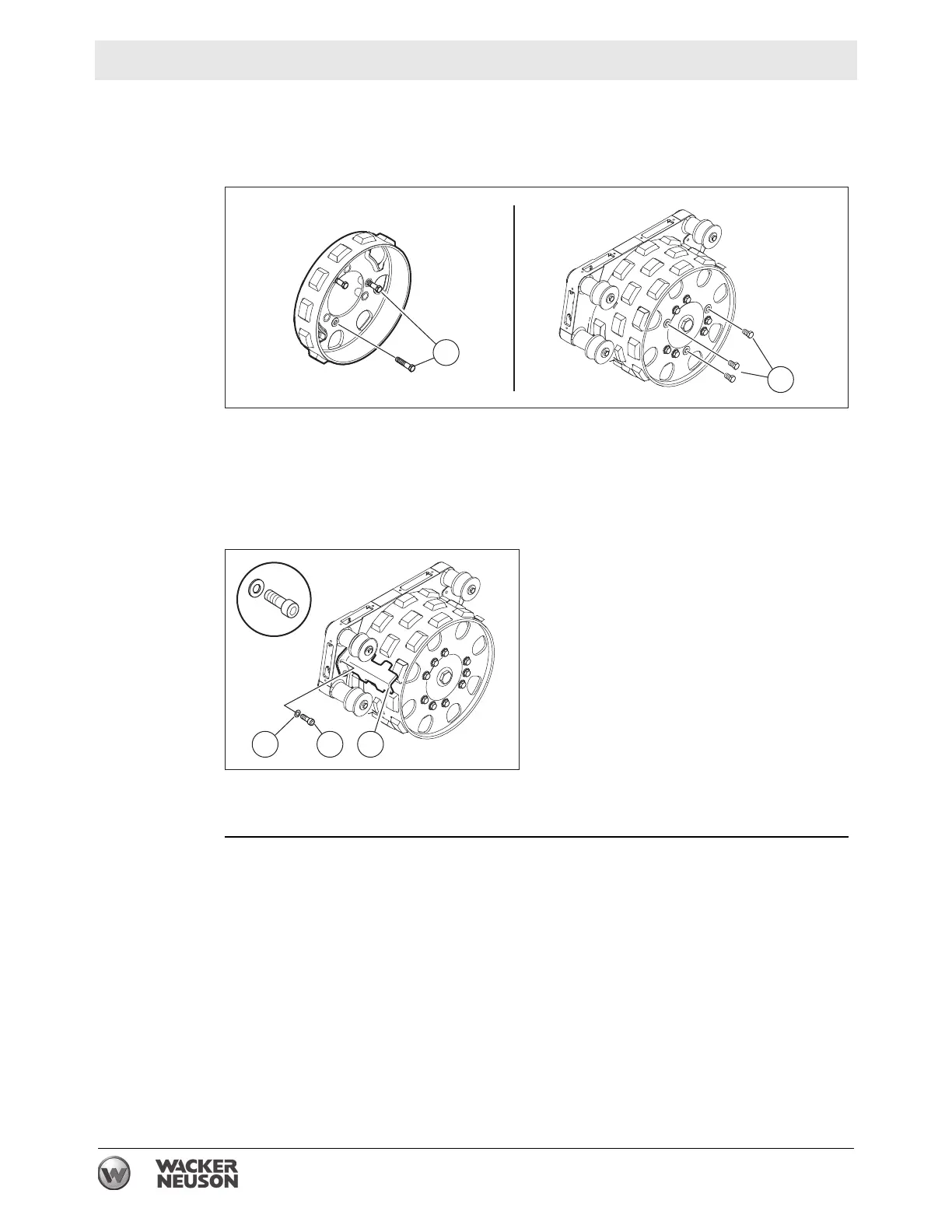

4. Install the three M16 x 80 screws (d) into the threaded holes of the drum
extension. (Use the holes where the M16 x 25 screws were installed.) Place the
drum extensions, with screws installed, in storage for future use.
5. Install the M16 x 25 screws (c) to the drum in the locations shown. Use Loctite
243 or equivalent on the screws and torque them to 210 Nm (155 ft.lbs.).
6. Install the narrow scraper (f) using the screws (g) and washers (h) from step 1.
Use Loctite 243 or equivalent on the screws and torque them to 86 Nm (63
ft.lbs.).
7. Repeat the procedure for each drum.
Result
The drum extensions have now been removed.
M16x25
wc_gr010671
M16x80
c
d
f
h
g
wc_gr010672
To Next Page
