Operating manual Manual Powder System SPRINT XE
8 Cleaning and Maintenance
46 Order number 2354920 | Edition 01/2023
P_05051
EPG
SPRINT X
0
%
10
20
30
40
50
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
80
100
%
Tri
90
60
70
17

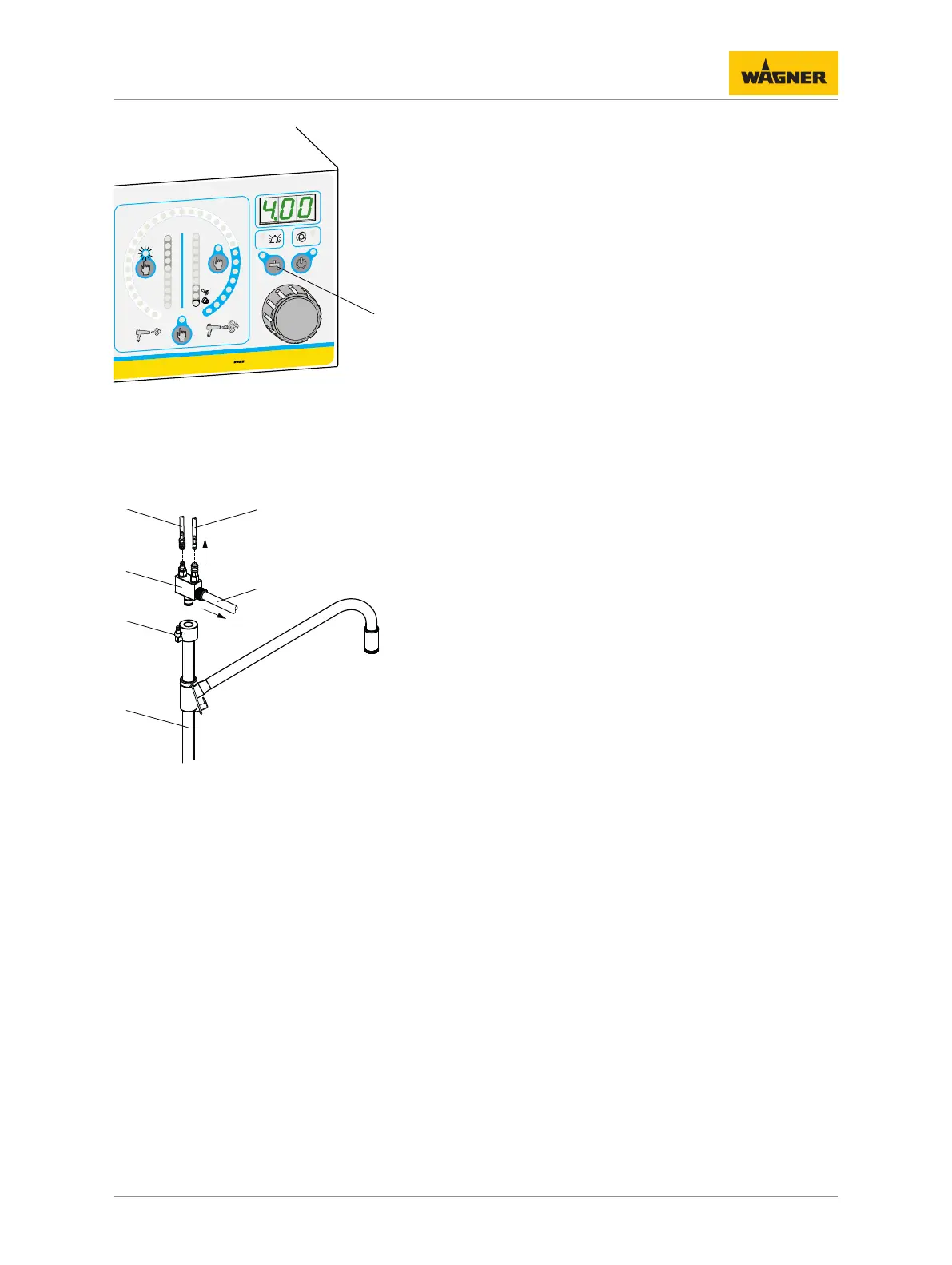

4. Hold the gun in the spray booth and start the flush function by pressing the
[Flush]button(17).
ð The injector and hoses are flushed.
5. Switch off control unit.
6. Remove the union nut on powder feed hose(3) and disconnect powder feed hose(3)
from injector(4).
7. Disconnect feed air hose(5) (red) from injector(4).
8. Disconnect dosing air hose(6) (blue) from injector(4).
9. Pull the fluid air hose (black) off suction connector(2).
10. Pull injector(4) out of feed unit(1).
11. Check injector4 for wear and replace worn parts if necessary. The wearing and spare
parts can be found in the powder injector's operating manual.
12. Pull feed unit(1) out of the holder arm.
13. Blow out the suction tube of the feed unit(1) thoroughly and rub it clean with a dry
cloth.
14. Check whether the fluid disk on the bottom of the feed unit is blocked and replace if
necessary.
8.3.2 60 L tank version
1. Release the trigger lever on the spray gun.
ð The high voltage and the powder feed are deactivated.
