12.5.1 Installation of the switchbox
WARNING
Danger from electric current!
Risk of injury and damage to the device.
4 Before starting with the installation of the switchbox, the manual system must be
switched off and the mains plug disconnected.
1
2
3
P_01159

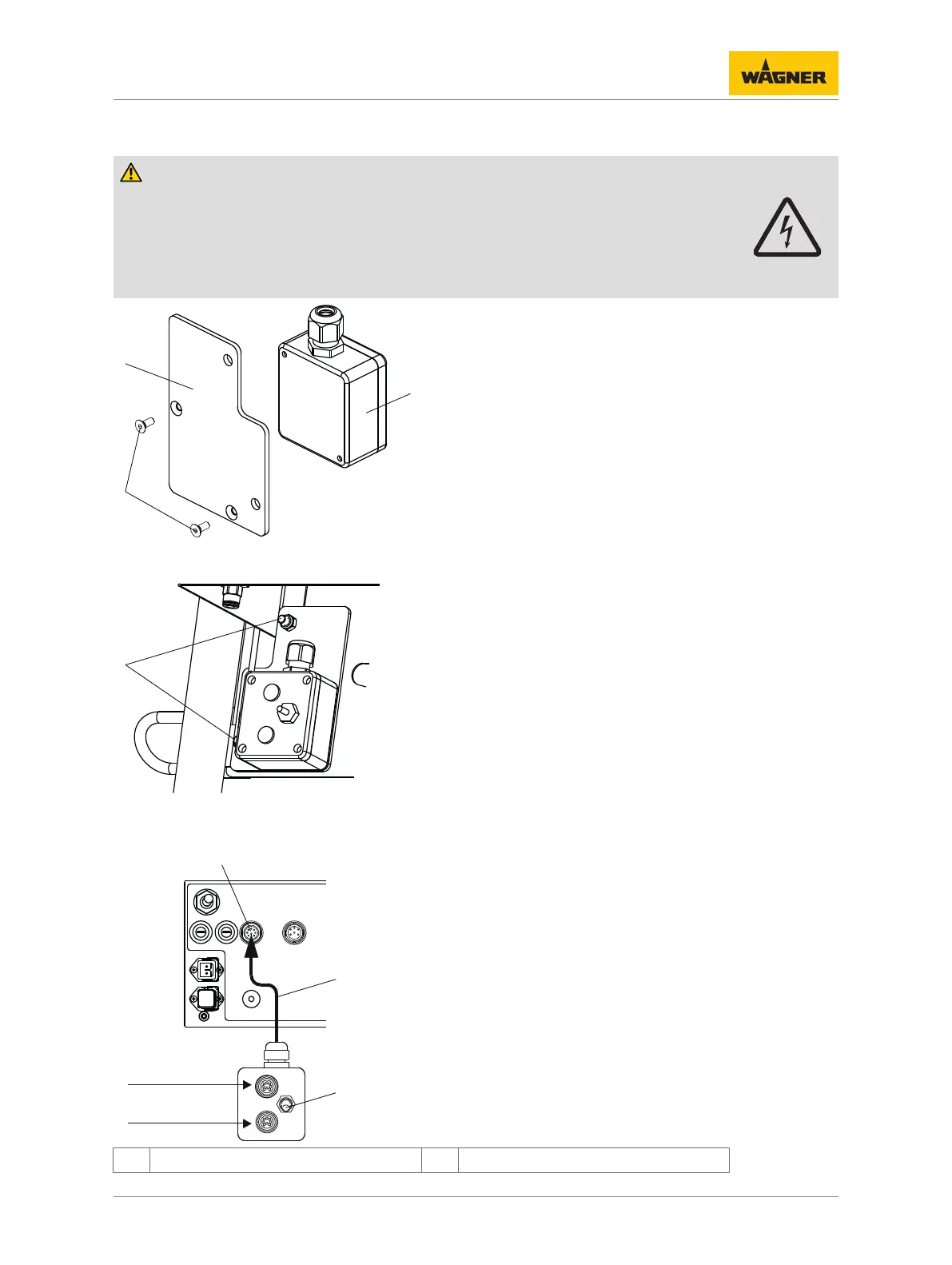

1. Screw switchbox(1) to adapter plate(3) with screws(2).
4
P_01183
2. Use screws(4) to screw adapter plate with fitted switchbox onto the back side of
trolley's front plate.
P_02718
A
B
C
2
1
1 Connection for Corona guns 2 Tribo gun connection
