3. Pull the gun cable out of the socket(A) on the control unit.
4. Plug the switchbox's electrical cable(B) into the socket (A) on the control unit and
secure it with the protective sleeve.
5. Connect the spray gun to the appropriate connection on the switchbox and secure it
with the protective sleeve of the spray gun cable.
6. Set the switch(C) on the switchbox to the desired gun type.

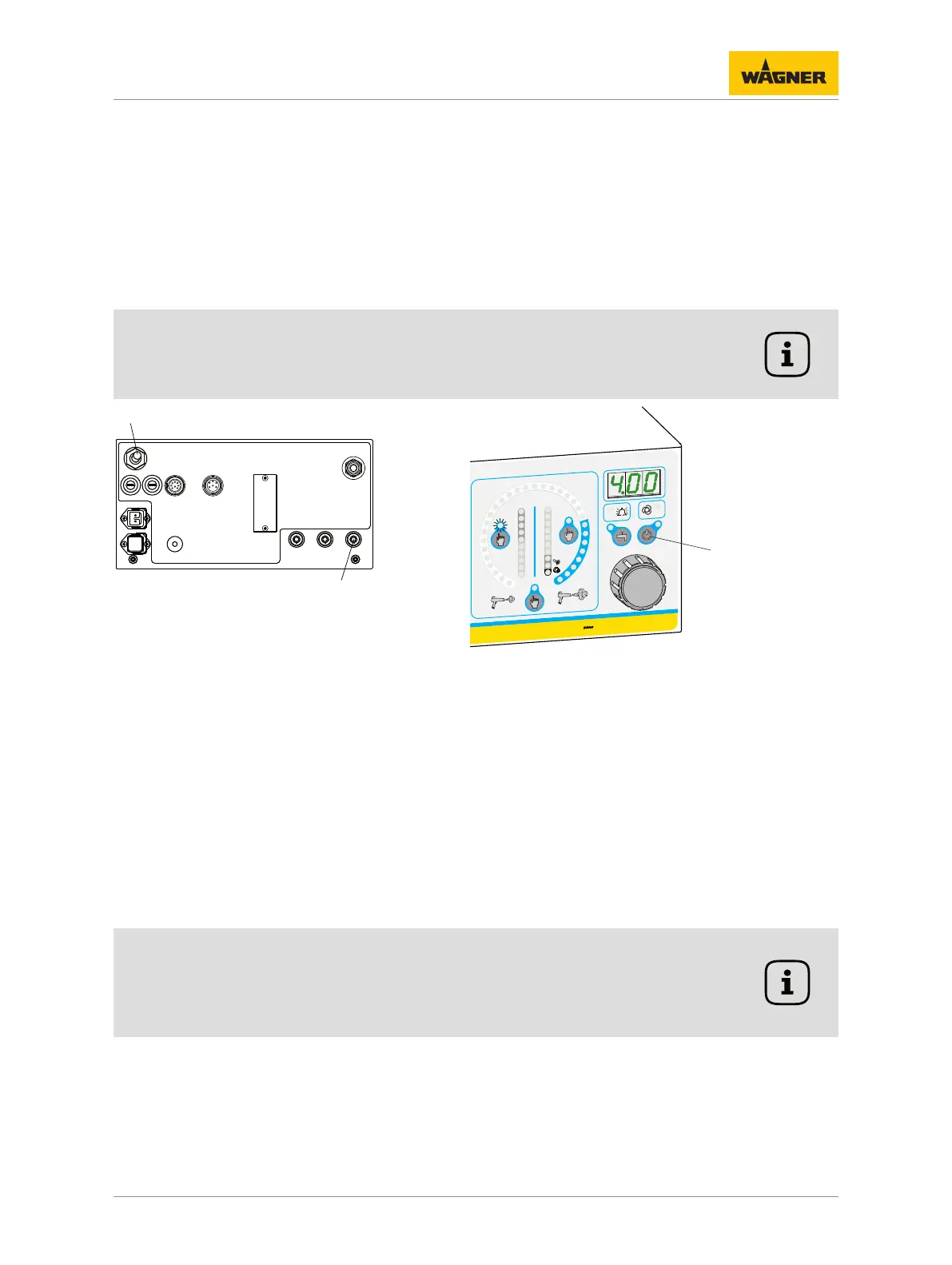

12.5.2 Switching the gun type
Info
Clean the powder residues from all powder-conveying parts thoroughly, before changing
to another gun type.
1
2
P_02719
P_05053
EPG
SPRINT X
0
%
10
20
30
40
50
Ø
12
10
11
9
8
m /h
2.0
3.0
0.5
0.3
0.1
1.5
3
5.5
4.5
3.5
2.5
80
100
%
Tri
90
60
70
15
For example: switching from Corona to Tribo
1. Switch off control unit with switch (1) on the rear or with [Standby] button (15) on the
front.
2. Change the coating powder from Corona to Tribo.
3. Disconnect the hose (2) (transparent, atomizing air) from the Corona gun and connect
it to the Tribo gun (Tribo air).
4. Disconnect the powder feed hose of the Corona gun from the powder injector and
connect the Tribo gun powder feed hose to the powder injector.
5. Set the switch (C) on the switchbox to Tribo.
6. Switch on control unit with switch (1) on the rear or with [Standby] button (15) on the
front.
Info
Parameter C11, in the EPG-Sprint XE control unit device configuration, must be set to
[aut]. No gun is selected at first after the control unit is switched on. This will however be
automatically selected and displayed after 1 second.
