13 Spare Parts
Order number 2354920 | Edition 01/2023 67
Pos K Stk Order no. Designation
1 1 2303294 Solenoid valve, 2/2 way
2 1 2304119 Fluid air throttle
3 1 2305860 Filter precipitator
9981951 Compressed air connection hose, 18.5x12.5mm

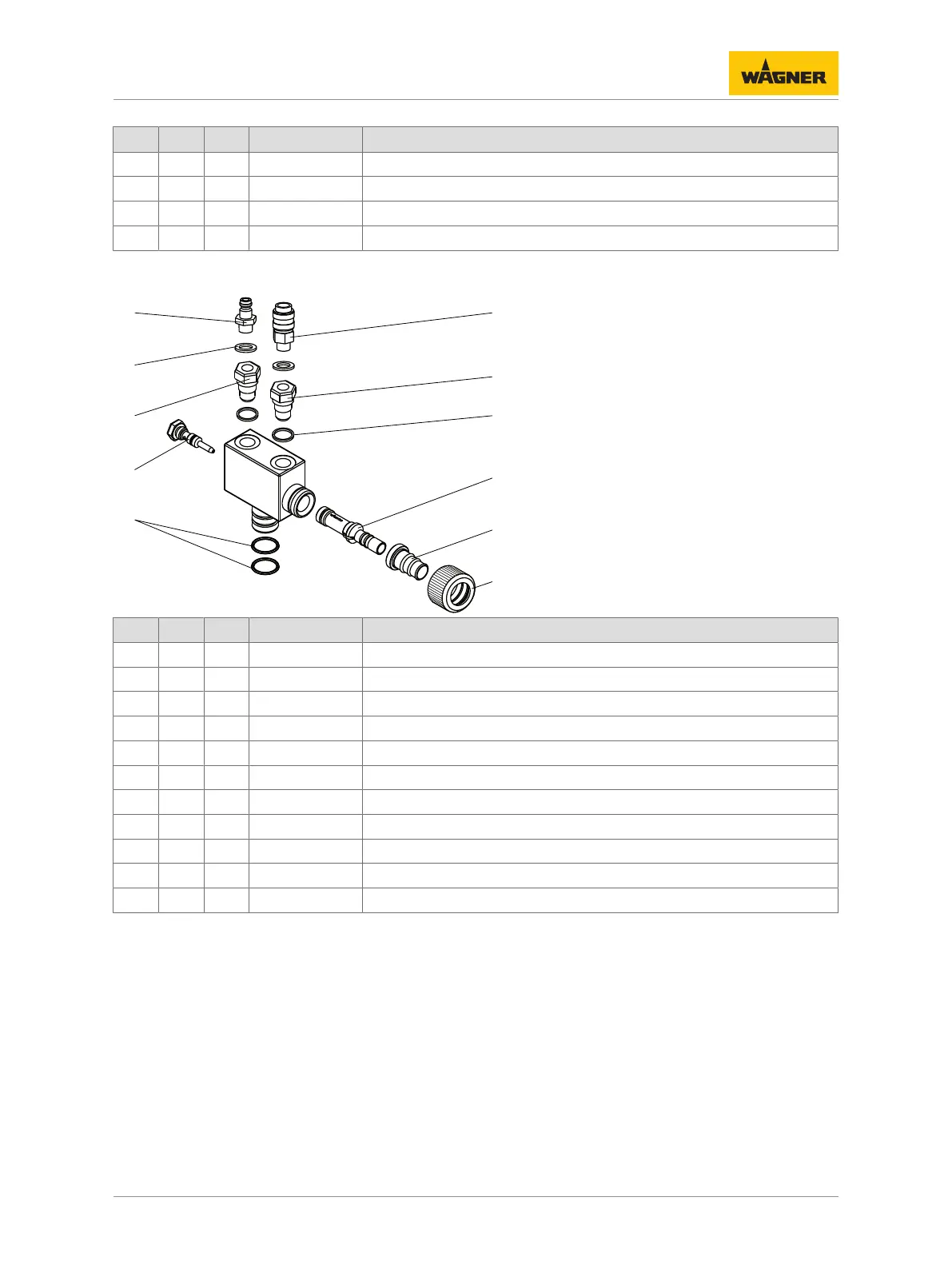

13.9 POWDER INJECTOR, PI-F1
8
10
5
4
11
9
5
7
1
2
3
P_00894
Pos K Stk Order no. Designation
241622 Powder injector, PI-F1
1 ♦ 1 241225 Annular gap collector nozzle
2 1 241476 Hose sleeve
3 1 241466 Union nut
4 ♦ 1 241923 Air nozzle
5 2 241460 Spring check valve
7 ♦ 1 9970149 Sealing ring
8 1 9992709 Quick-release plug
9 1 9992710 Quick-release socket
10 ♦ 1 9970150 Sealing ring
11 ♦ 2 9974023 Sealing ring, electrically conductive
♦ = wearing parts
