8.3 PILOT IGNITION ROD – BMK 5000 & 6000
The Pilot Burner (P/N 29700) is located on the right-front of the Burner Plate. It contains an
ignition cable, the Pilot gas line connected to the bushing. The Pilot Burner Rod (P/N 66100),
should be inspected every 12 months and replaced if damaged or warped. Figure 8-2a shows
the location of the Pilot Burner and related components.
Parts and instructions are included in 12 Month Maintenance Kit P/N 58025-11 and all BMK
5000 – 6000 24 Month Maintenance Kits.

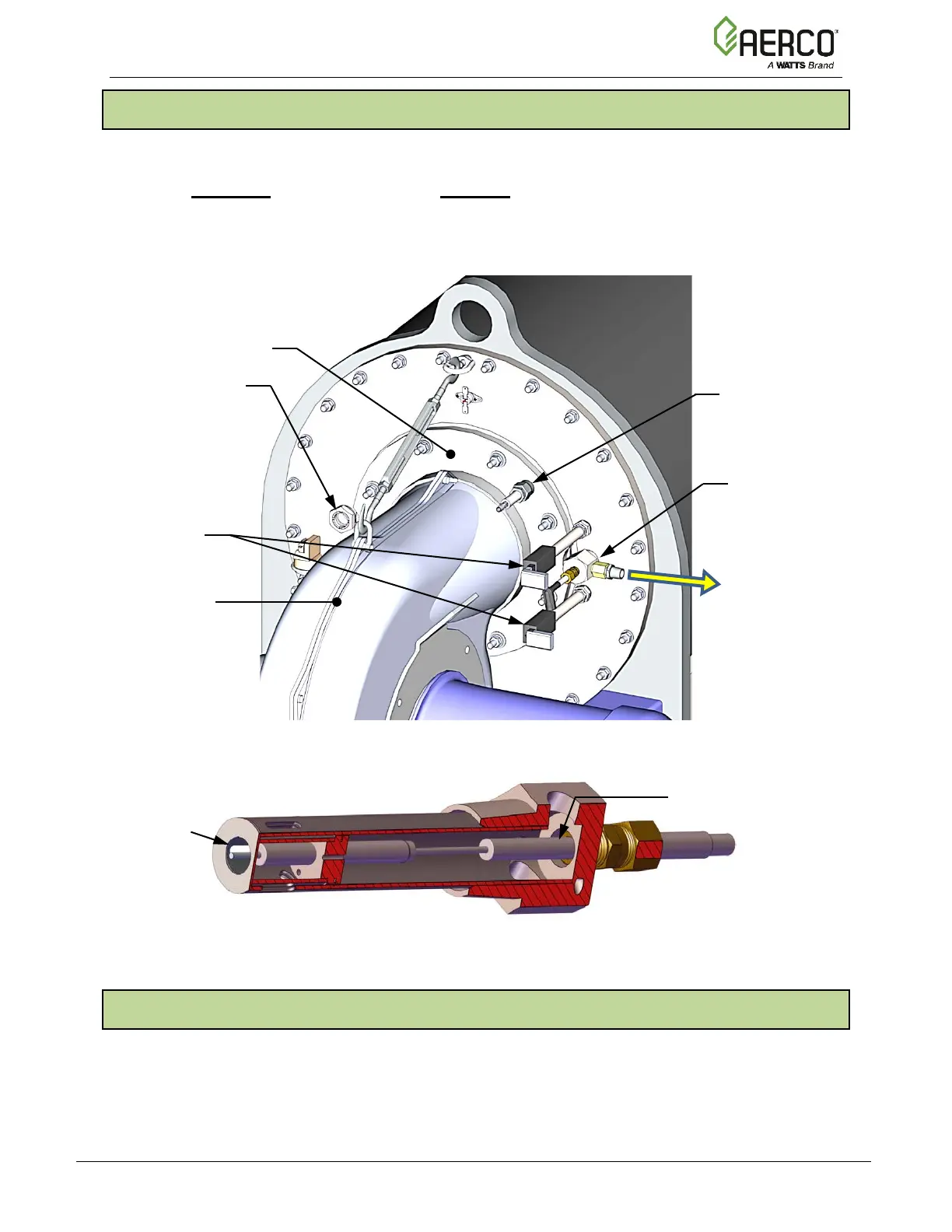

Figure 8-2a: Pilot Burner, Main & Pilot Flame Detector
Figure 8-2b: Pilot Burner & Pilot Ignition Rod – Cross-Section
8.4 FLAME DETECTOR
The BMK 750 – 3000 Flame Detector (kit P/N 24356-1) is located on the burner plate at the top
of the unit (see Figure 8-1a through 8-1c, above).
The BMK 5000 & 6000 Main Flame Detector (P/N 65182) is located on the Blower Flange near
the top of the unit (see Figure 8-2a, above).
DETECTOR
(P/N 65182)
GAS LINE
PILOT IGNITION ROD
(P/N 66100)
DETECTORS
ROD TIP
(P/N 66100)
