Willcox & Gibbs W562 User Manual

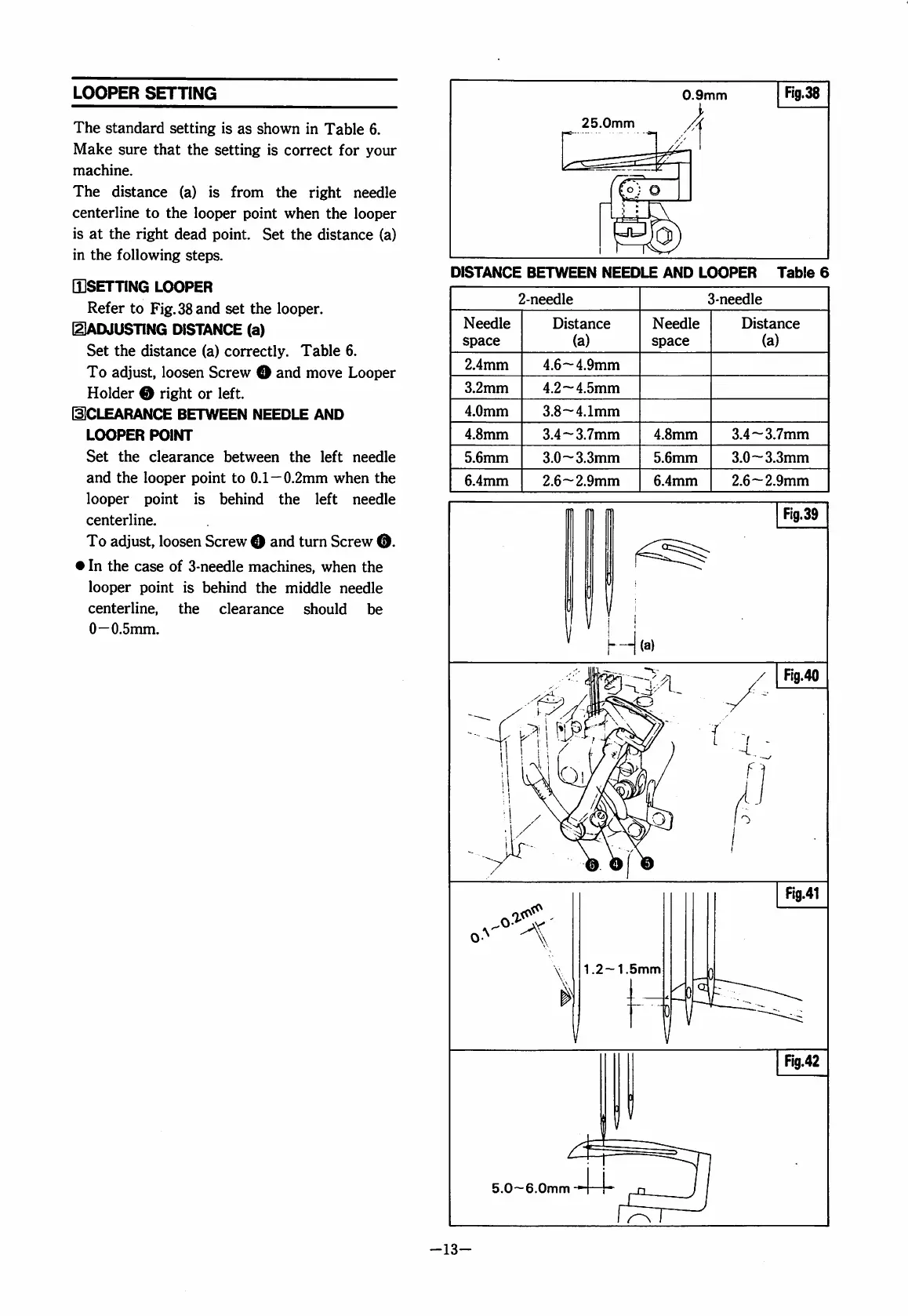

LOOPER SETTING
The standard setting is as shown in Table 6.
Make sure that the setting is correct for your
machine.
The distance (a) is from the right needle
centerline to the looper point when the looper
is at the right dead point. Set the distance (a)
in the following steps.
[IISETTING LOOPER
Refer to Fig. 38 and set the looper.
mADJUSTING DISTANCE (a)
Set the distance (a) correctly. Table 6.
To adjust, loosen Screw O and move Looper
Holder 0 right or left.
IHGLEARANCE BETWEEN NEEDLE AND
LOOPER POINT
Set the clearance between the left needle
and the looper point to 0.1—0.2mm when the
looper point is behind the left needle
centerline.
To adjust, loosen Screw O and turn Screw 0.
• In the case of 3-needle machines, when the
looper point is behind the middle needle
centerline, the clearance should be
0—0.5mm.
25.0mm
0.9mm
R9.38
DISTANCE BETWEEN NEEDLE AND LOOPER Table 6
2-needle 3-needle
Needle
space
Distance
(a)
Needle
space
Distance
(a)
2.4mm 4.6—4.9mm
3.2mm 4.2—4.5mm
4.0mm 3.8—4.1mm
4.8mm 3.4—3.7mm 4.8mm 3.4—3.7mm
5.6mm 3.0—3.3mm 5.6mm 3.0—3.3mm
6.4mm 2.6—2.9mm 6.4mm 2.6—2.9mm
Fig.39
i-H(a)
/ Fig.40
1.2—1.5mm
"■Q
Fig.41
5.0~6.0mm
Fig.42
-13-
