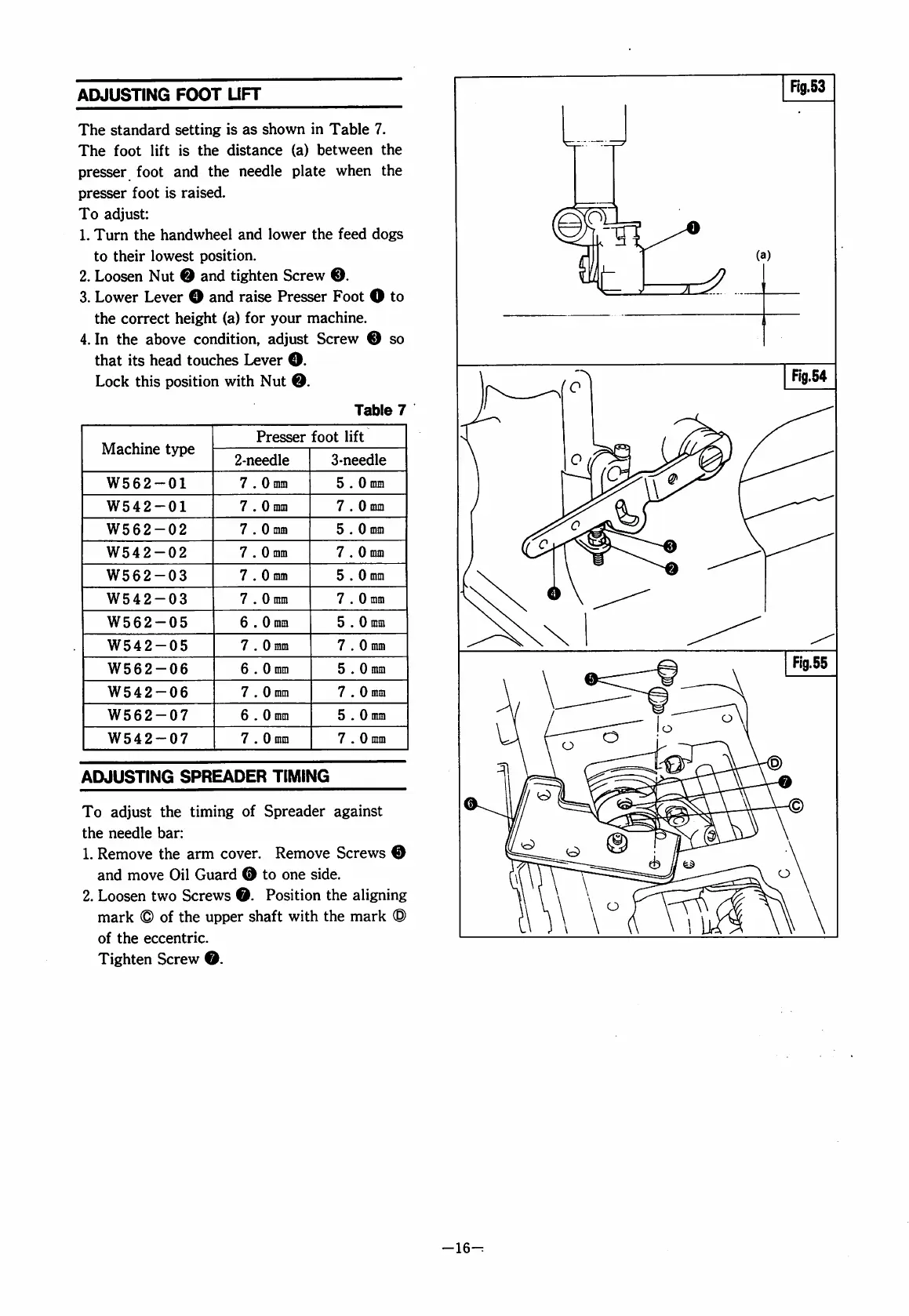

ADJUSTING
FOOT
UFT
The
standard
setting
is
as
shown
in
Table
7.
The
foot
lift
is
the
distance
(a)
between
the
presser
foot
and
the
needle
plate
when
the
presser
foot
is
raised.
To
adjust:
1.
Turn
the
hand
wheel
and
lower
the
feed
dogs
to
their
lowest
position.
2.
Loosen
Nut
©
and
tighten
Screw
®.
3.
Lower
Lever
o
and
raise
Presser
Foot
O
to
the
correct
height
(a)
for
your
machine.
4.
In
the
above
condition,
adjust
Screw
©
so
that
its
head
touches
Lever
O.
Lock
this
position
with
Nut
©.
Table
7
Machine
type
Presser
foot
lift
2-needle
3-needle
W562-01
7
.
0
mm
5
.
0
mm
W542-01
7
.
0
mm
7
.
0
mm
W562-02
7
.
0
mm
5
.
0
mm
W542-02
7
.
0
mm
7
.
0
mm
W562-03
7
.
0
mm
5
.
0
mm
W542-03
7
.
0
mm
7
.
0
mm
W562-05
6
.
0
mm
5
.
0
mm
W542-05
7
.
0
mm
7
.
0
mm
W562-06
6
.
0
mm
5
.
0
mm
W542-06
7
.
0
mm
7
.
0
mm
W562-07
6
.
0
mm
5
.
0
mm
W542-07
7
.
0
mm
7
.
0
mm
ADJUSTING
SPREADER
TIMING
To
adjust
the
timing
of
Spreader
against
the
needle
bar:
1.
Remove
the
arm
cover.
Remove
Screws
©
and
move
Oil
Guard
©
to
one
side.
2.
Loosen
two
Screws
©.
Position
the
aligning
mark
©
of
the
upper
shaft
with
the
mark
®
of
the
eccentric.
Tighten
Screw
©.
-16-^
From the library of: Superior Sewing Machine & Supply LLC
