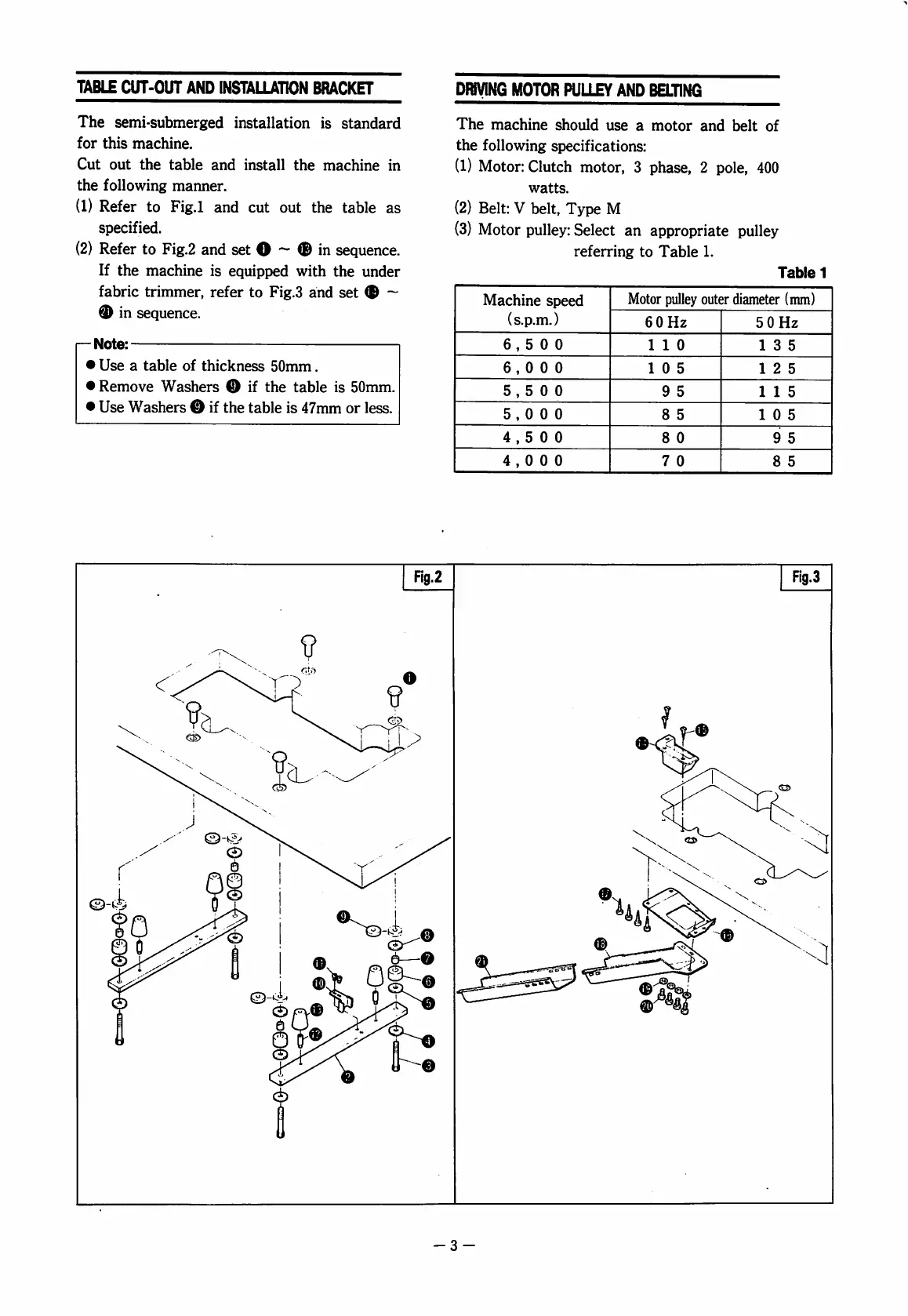

TABLE CUT-OUT AND INSTALLATION BRACKET
The semi-submerged installation is standard
for this machine.
Cut out the table and install the machine in
the following manner,
(1) Refer to Fig.l and cut out the table as
specified.
(2) Refer to Fig.2 and set O ^ ® in sequence.
If the machine is equipped with the under
fabric trimmer, refer to Fig,3 and set —
® in sequence.
r— Note:
• Use a table of thickness 50mm.
• Remove Washers o if the table is 50mm.
• Use Washers O if the table is 47mm or less.
DRiyiNG MOTOR PULLEY AND BELTING
The machine should use a motor and belt of
the following specifications:
(1) Motor: Clutch motor, 3 phase, 2 pole, 400
watts.
(2) Belt: V belt. Type M
(3) Motor pulley: Select an appropriate pulley
referring to Table 1.
Table 1
Machine speed
(s.p.m.)
Motor pulley outer diameter (mm)
60 Hz
50Hz
6,500
1 1 0
13 5
6,000
1 0 5
12 5
5,500
9 5
1 1 5
5,000
8 5
10 5
4,500
8 0
9 5
4,000
7 0 8 5
Fig.2
9
C£>
3 D
Fig.3
-3 -
From the library of: Superior Sewing Machine & Supply LLC
