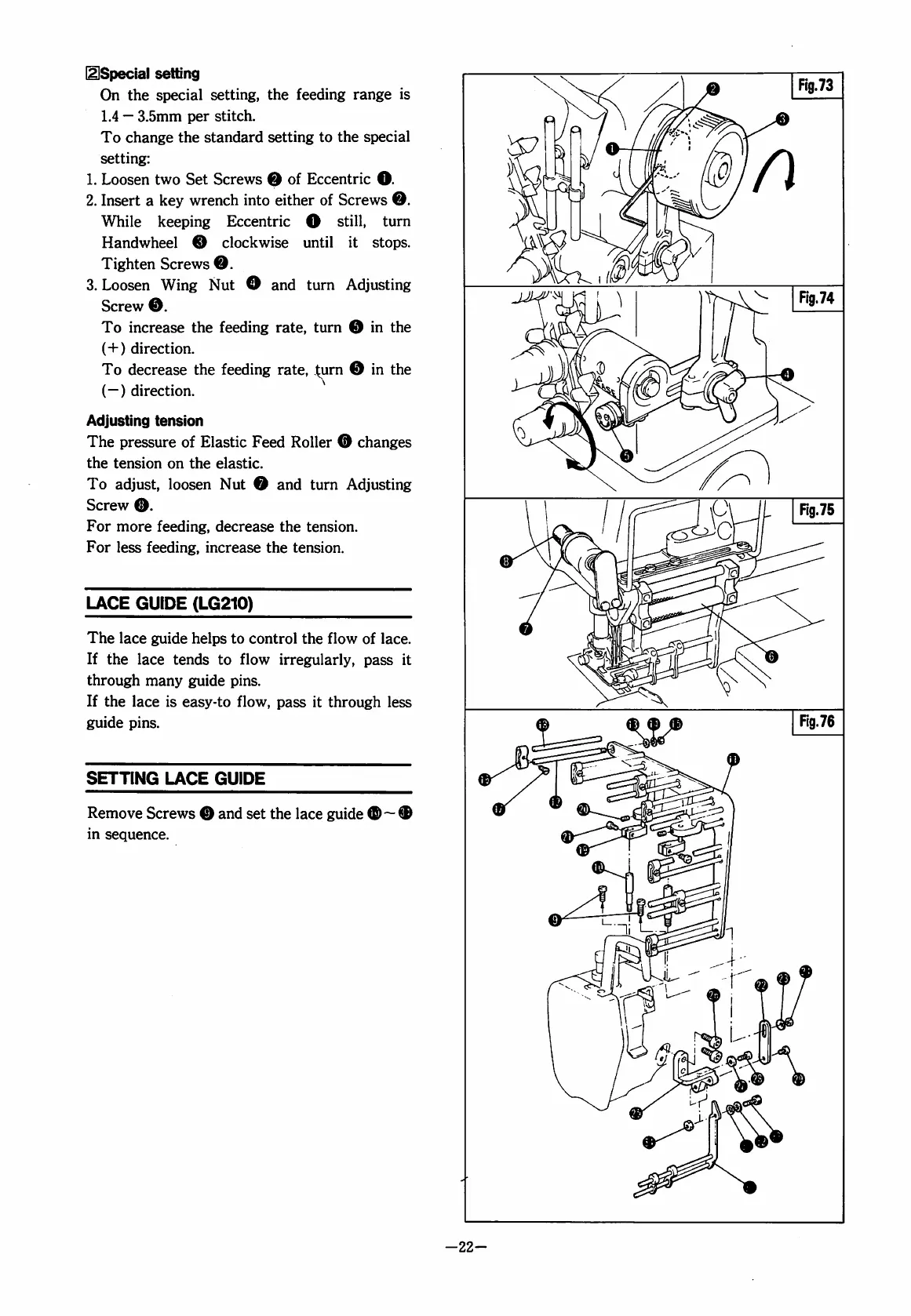

mSpecial setting
On the special setting, the feeding range is
1.4 — 3.5mm per stitch.
To change the standard setting to the special
setting:
1. Loosen two Set Screws of Eccentric O.
2. Insert a key wrench into either of Screws 0.
While keeping Eccentric O still, turn
Handwheel 0 clockwise until it stops.
Tighten Screws 0.
3. Loosen Wing Nut O and turn Adjusting
Screw ©.
To increase the feeding rate, turn 0 in the
(+) direction.
To decrease the feeding rate, fum © in the
(—) direction.
Adjusting tension
The pressure of Elastic Feed Roller © changes
the tension on the elastic.
To adjust, loosen Nut 0 and turn Adjusting
Screw 0.
For more feeding, decrease the tension.
For less feeding, increase the tension.
LACE GUIDE (LG210)
The lace guide helps to control the flow of lace.
If the lace tends to flow irregularly, pass it
through many guide pins.
If the lace is easy-to flow, pass it through less
guide pins.
SETTING LACE GUIDE
Remove Screws 0 and set the lace guide ® ~ 0
in sequence.
/I
