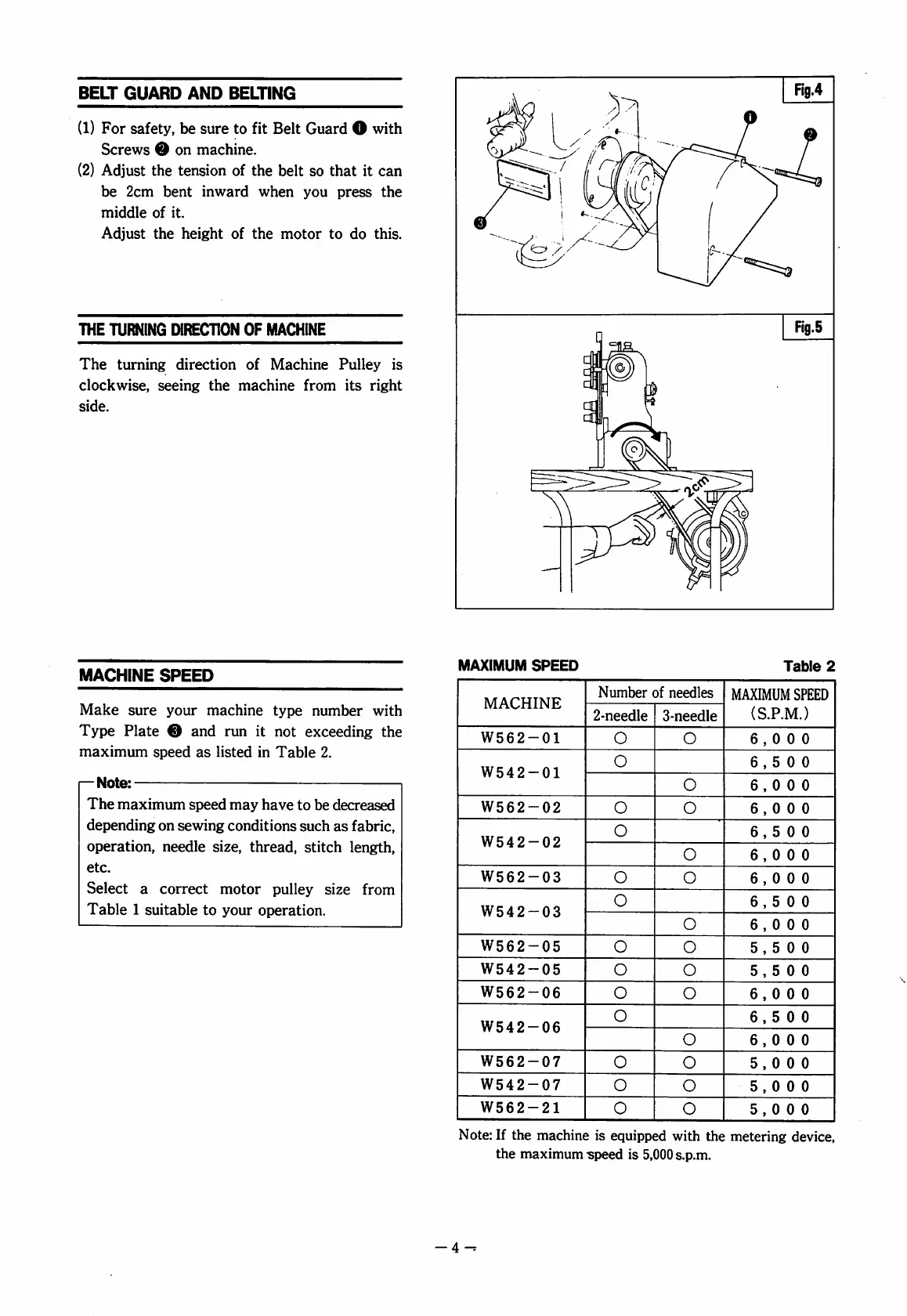

BELT GUARD AND BELTING
(1) For safety, be sure to fit Belt Guard O with
Screws 0 on machine.
(2) Adjust the tension of the belt so that it can
be 2cm bent inward when you press the
middle of it.
Adjust the height of the motor to do this.
THE TURNING DIRECTION OF MACHINE
The turning direction of Machine Pulley is
clockwise, seeing the machine from its right
side.
Fig.5
MACHINE SPEED
MAXIMUM SPEED
Table 2
Make sure your machine type number with
Type Plate O and run it not exceeding the
maximum speed as listed in Table 2.
^ Note:
The maximum speed may have to be decreased
depending on sewing conditions such as fabric,
operation, needle size, thread, stitch length,
etc.
Select a correct motor pulley size from
Table 1 suitable to your operation.
MACHINE
Number of needles
MAXIMUM SPEED
(S.P.M.)
2-needle 3-needle
W562-01
O O 6,000
W542-01
O 6,500
o 6,000
W562-02
o
o
6,000
W542-02
o
6,500
o 6,000
W562-03
o
o 6,000
W542-03
o
6,500
o 6,000
W562-05
o
o 5,500
W542-05
o
o 5,500
W562-06
o
o 6,000
W542-06
o
6,5 0 0
o 6,0 0 0
W562-07
o
o 5,0 0 0
W542-07
o
o 5,0 0 0
W562-21
o
o 5,0 0 0
Note: If the machine is equipped with the metering device,
the maximum -speed is 5,000 s.p.m.
-4 -
