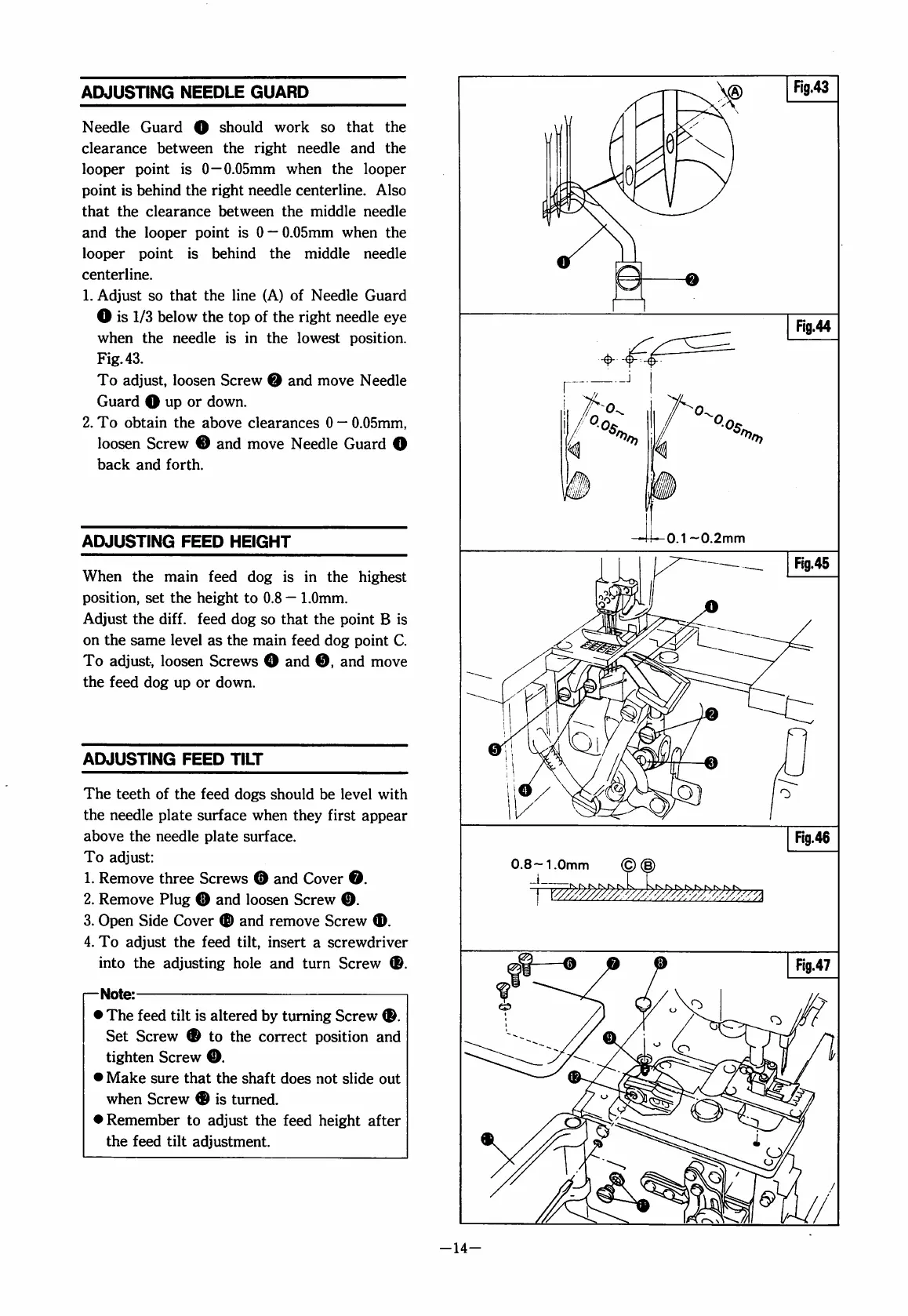

ADJUSTING NEEDLE GUARD
Needle Guard O should work so that the
clearance between the right needle and the
looper point is 0—0.05mm when the looper
point is behind the right needle centerline. Also
that the clearance between the middle needle
and the looper point is 0 — 0.05mm when the
looper point is behind the middle needle
centerline.
1. Adjust so that the line (A) of Needle Guard
O is 1/3 below the top of the right needle eye
when the needle is in the lowest position.
Fig. 43.
To adjust, loosen Screw O and move Needle
Guard O up or down.
2, To obtain the above clearances 0 —0.05mm,
loosen Screw © and move Needle Guard O
back and forth.
ADJUSTING FEED HEIGHT
When the main feed dog is in the highest
position, set the height to 0.8 — 1.0mm.
Adjust the diff. feed dog so that the point B is
on the same level as the main feed dog point C.
To adjust, loosen Screws O and ©, and move
the feed dog up or down.
ADJUSTING FEED TILT
The teeth of the feed dogs should be level with
the needle plate surface when they first appear
above the needle plate surface.
To adjust;
1. Remove three Screws 0 and Cover 0.
2. Remove Plug 0 and loosen Screw 0.
3. Open Side Cover 0 and remove Screw 0.
4. To adjust the feed tilt, insert a screwdriver
into the adjusting hole and turn Screw ®.
[— Note:
• The feed tilt is altered by turning Screw 0.
Set Screw 0 to the correct position and
tighten Screw 0.
• Make sure that the shaft does not slide out
when Screw 0 is turned.
• Remember to adjust the feed height after
the feed tilt adjustment.
0.1 ~0.2mm
Rg.46
0.8—1.0mm © (p)
