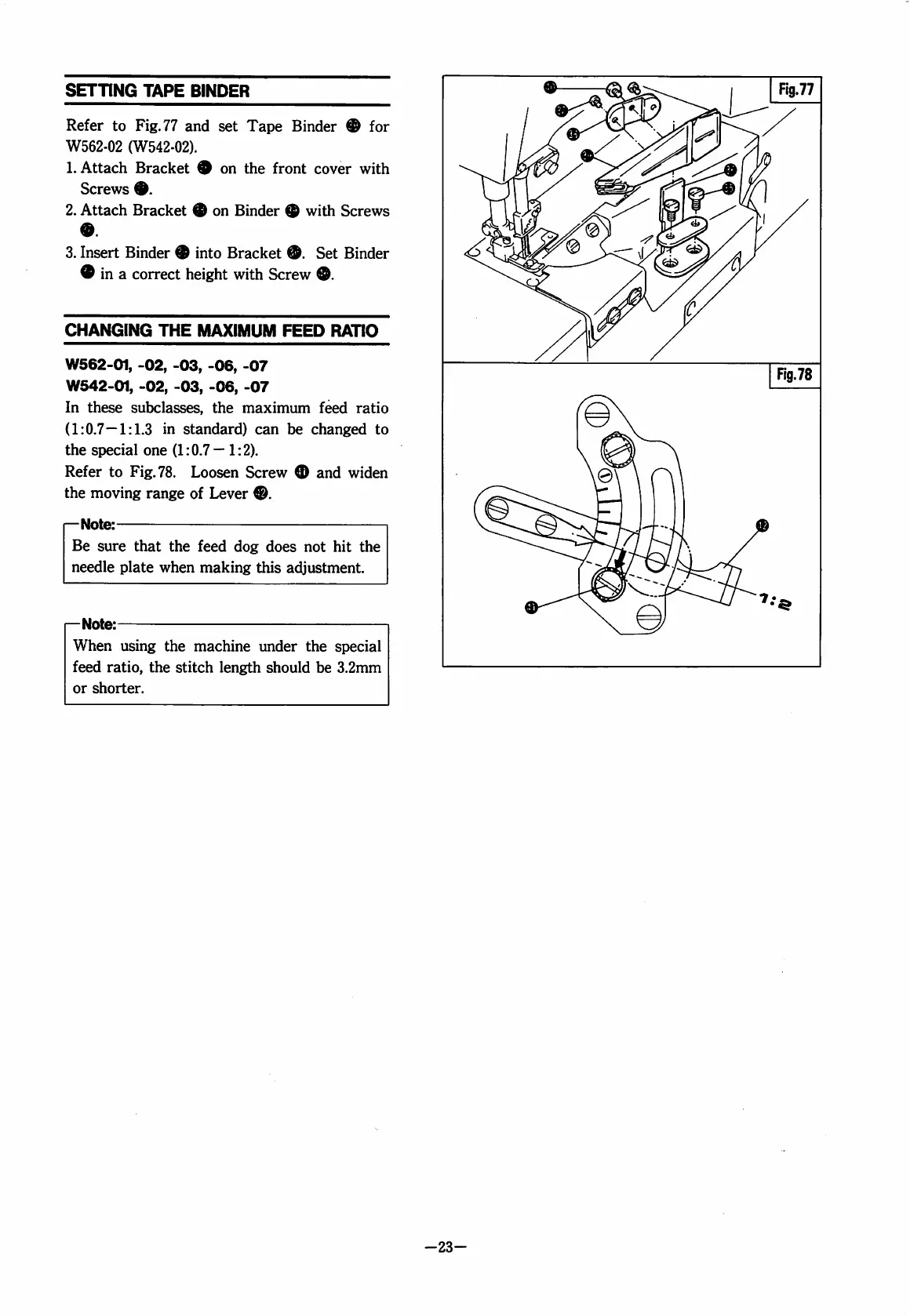

SETTING TAPE BINDER
Refer to Fig. 77 and set Tape Binder ® for
W562-02 (W542-02).
1. Attach Bracket 9 on the front cover with
Screws 9.
2. Attach Bracket 9 on Binder ® with Screws
3. Insert Binder 9 into Bracket Set Binder
in a correct height with Screw
CHANGING THE MAXIMUM FEED RATIO
W562-01, -02, -03, -06, -07
W542-01, -02, -03, -06, -07
In these subclasses, the maximum feed ratio
(1:0.7—1:1,3 in standard) can be changed to
the special one (1:0.7 — 1:2).
Refer to Fig. 78. Loosen Screw ® and widen
the moving range of Lever ®.
i—Note:
Be sure that the feed dog does not hit the
needle plate when making this adjustment.
i— Note:
When using the machine under the special
feed ratio, the stitch length should be 3.2mm
or shorter.
0
0
-23-
