Willcox & Gibbs W562 User Manual

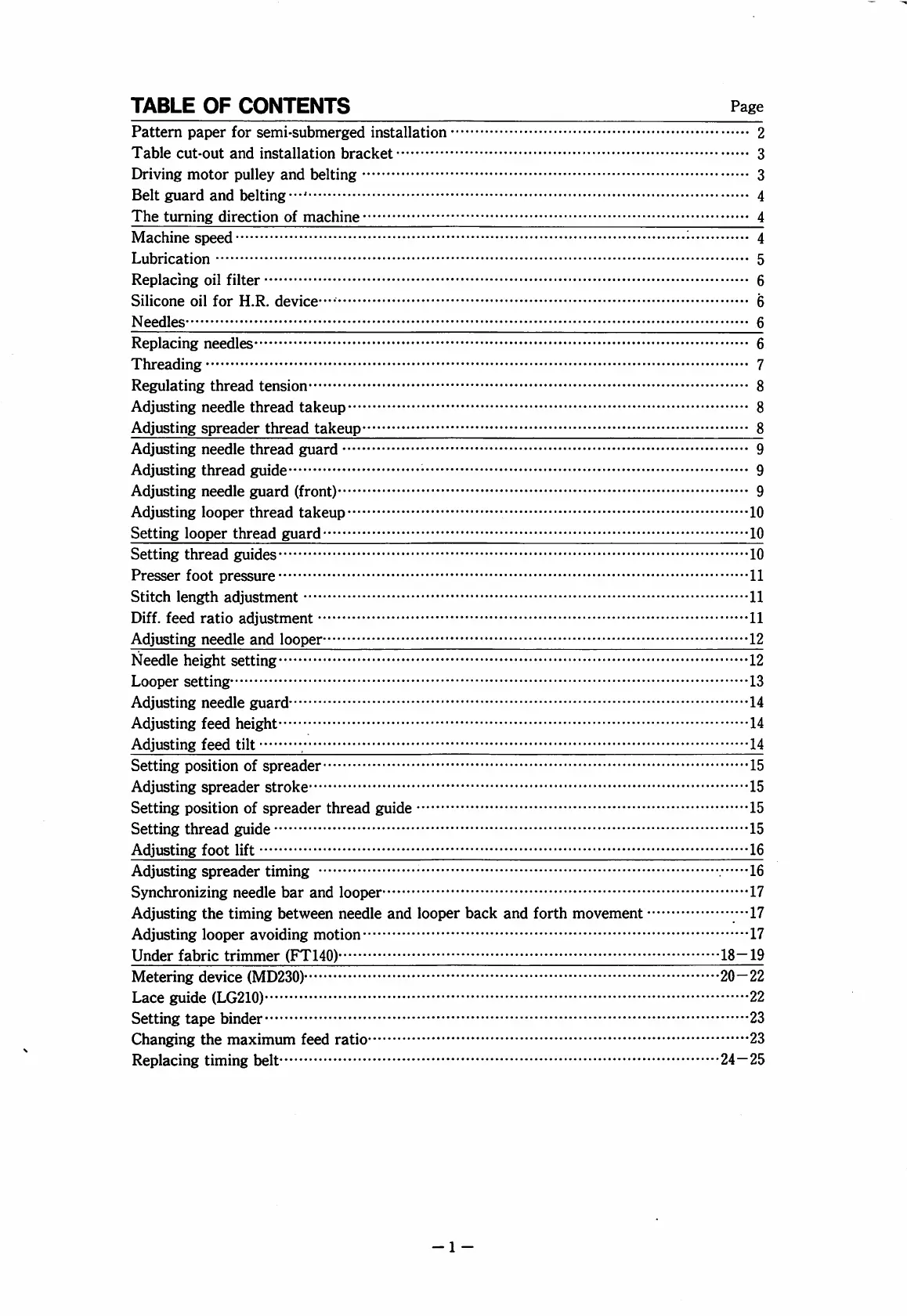

TABLE OF CONTENTS Page
Pattern paper for semi-submerged installation 2
Table cut-out and installation bracket 3
Driving motor pulley and belting 3
Belt guard and belting 4
The turning direction of machine 4
Machine speed 4
Lubrication 5
Replacing oil filter 6
Silicone oil for H.R. device- 6
Needles 6
Replacing needles 6
Threading 7
Regulating thread tension 8
Adjusting needle thread takeup 8
Adjusting spreader thread takeup 8
Adjusting needle thread guard 9
Adjusting thread guide 9
Adjusting needle guard (front) 9
Adjusting looper thread takeup 10
Setting looper thread guard 10
Setting thread guides 10
Presser foot pressure 11
Stitch length adjustment 11
Diff. feed ratio adjustment 11
Adjusting needle and looper 12
Needle height setting 12
Looper setting 13
Adjusting needle guard 14
Adjusting feed height 14
Adjusting feed tilt , 14
Setting position of spreader 15
Adjusting spreader stroke 15
Setting position of spreader thread guide 15
Setting thread guide 15
Adjusting foot lift 16
Adjusting spreader timing 16
Synchronizing needle bar and looper 17
Adjusting the timing between needle and looper back and forth movement ----n
Adjusting looper avoiding motion 17
Under fabric trimmer (FT140) 18—19
Metering device (MD230) 20—22
Lace guide (LG210) 22
Setting tape binder 23
Changing the maximum feed ratio 23
Replacing timing belt 24—25
-1 -
From the library of: Superior Sewing Machine & Supply LLC

Willcox & Gibbs W562 Specifications

General

Brand	Willcox & Gibbs
Model	W562
Category	Sewing Machine
Language	English
